Saab TankRadar PRO - Primary Output

Saab TankRadar
®
Pro Electrical Installation
3-13
Edition 2. Ref. No: 306010E
X2
5
4
3
1
2
6
HM40
X5
X5
1D
X6 X7
IS Gnd
IS40
HM40
X5
1B
DPS
DP+
SO-
SO+
PO+
PO-
X3
2A
TM40
1C
HM40
X3
5
4
3
1
2
X1
L+
L-
PO+
PO-
X3
X4
IS40
X3
1A
HM40

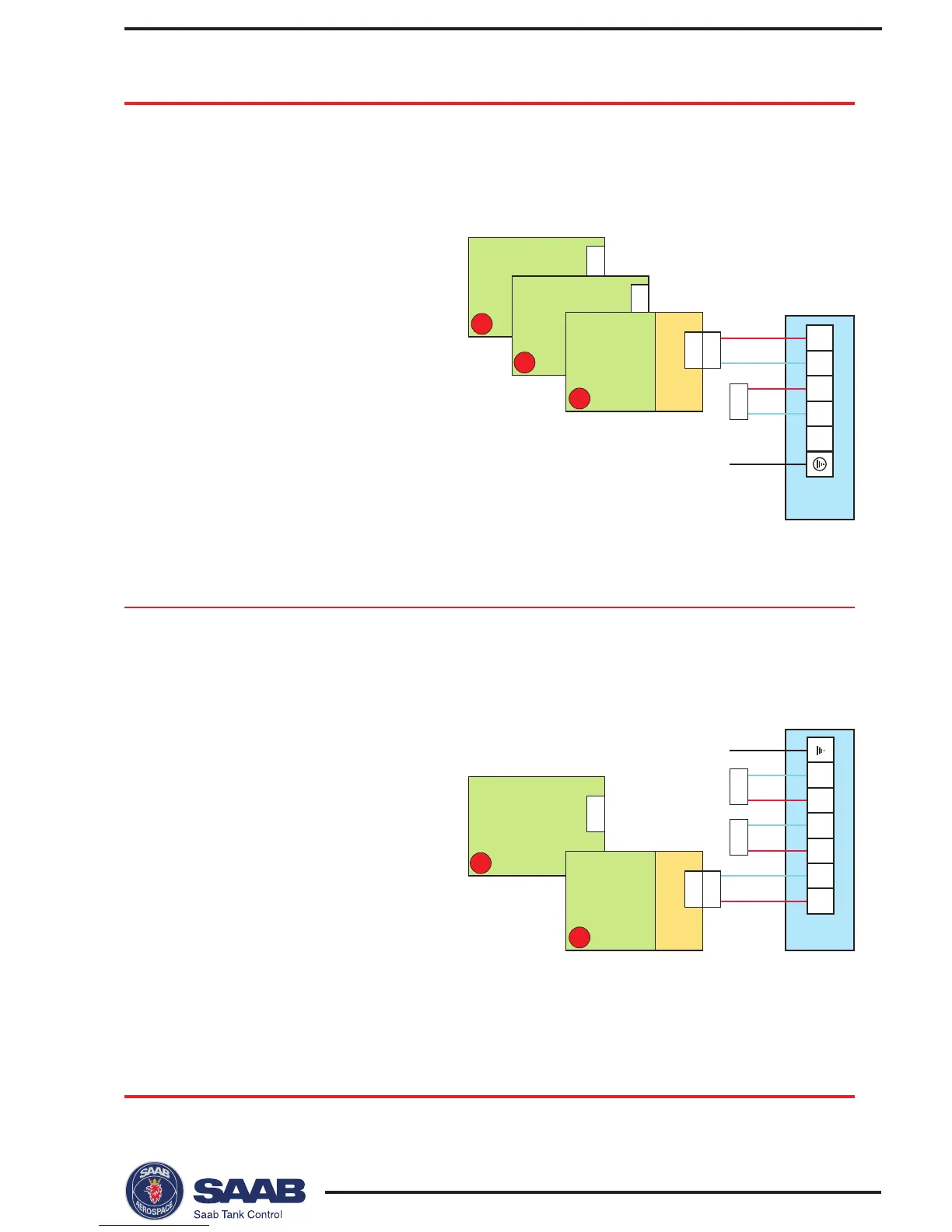

Primary Output
Non-Intrinsic Safety (EEx e)
Intrinsic Safety (EEx i)
Option Description Board
1A Non-intrinsically safe HM40+IS40
HART/4-20 mA,
active.
1C Non-intrinsically safe HM40
HART/4-20 mA,
passive
2A TRL2 Bus TM40
Option Description Board
1B Intrinsically safe HM40+IS40
HART/4-20 mA,
active
1D Intrinsically safe HM40
HART/4-20 mA,
passive
