Saab TankRadar PRO - Secondary Output

3-14
Edition 2. Ref. No: 306010E
Saab TankRadar
®
ProElectrical Installation
X2
5
4
3
1
2
6
XA40
X6
X5
D
X7
IS Gnd
IS40
XA40
X6
B
DPS
DP+
SO-
SO+
PO+
PO-
X6
X2
5
4
3
1
2
XA40
X6
X5
C
IS40
XA40
X6
SO-
SO+
PO+
PO-
X6
A

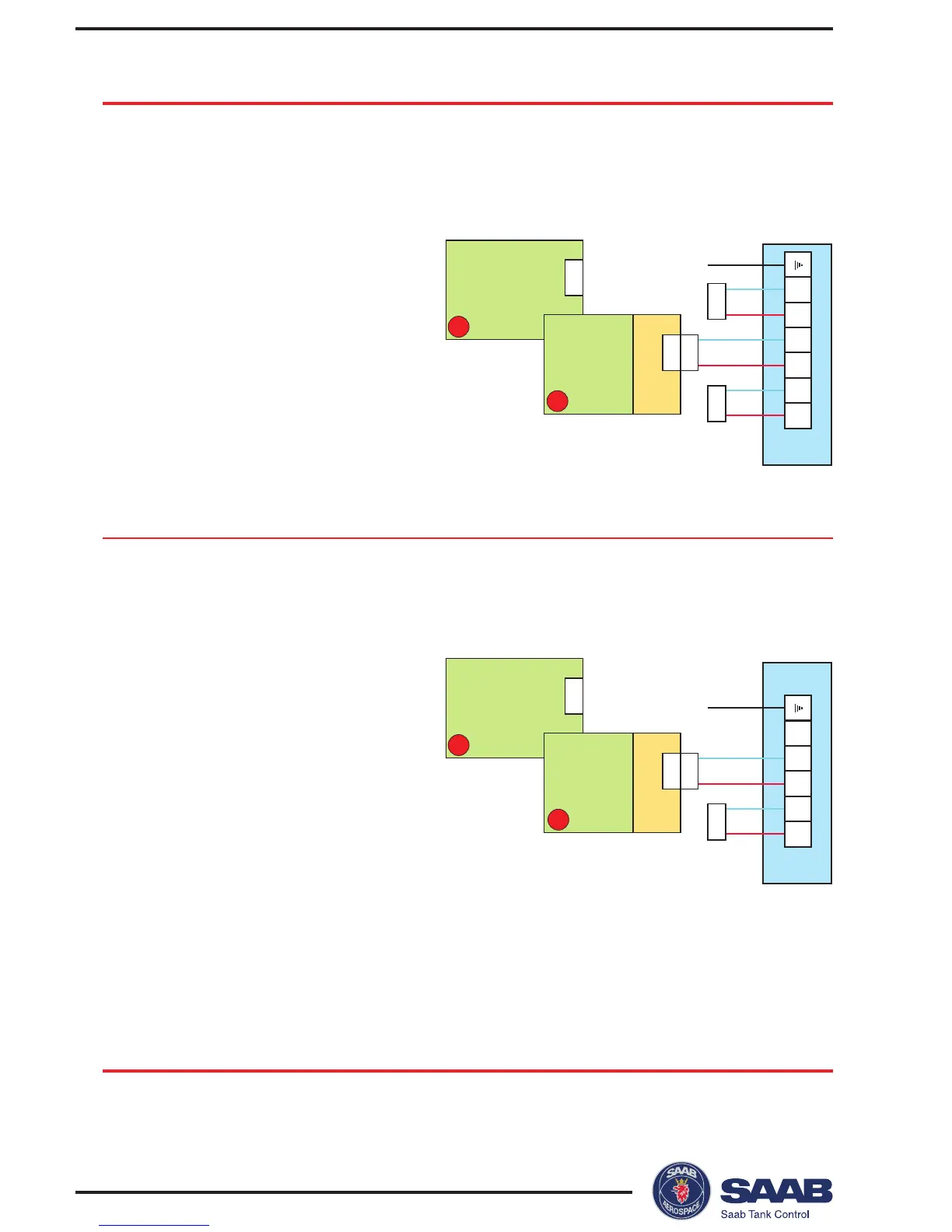

Secondary Output
Intrinsic Safety (EEx i)
Option Description Board
A Non-intrinsically safe XA40+IS40
4-20mA active
C Non-intrinsically safe XA40
4-20mA passive
Note! This junction box is normally used for intrinsically safe connections. This
version is a non-intrinsically safe option equipped with an alternative
connector for non-intrinsically safe output.
Option Description Board
B Intrinsically Safe XA40+IS40
4-20mA active
D Intrinsically Safe XA40
4-20mA passive
Non-Intrinsic Safety (EEx e)
