The following examples illustrate how the Amplitude Threshold
table can be used:

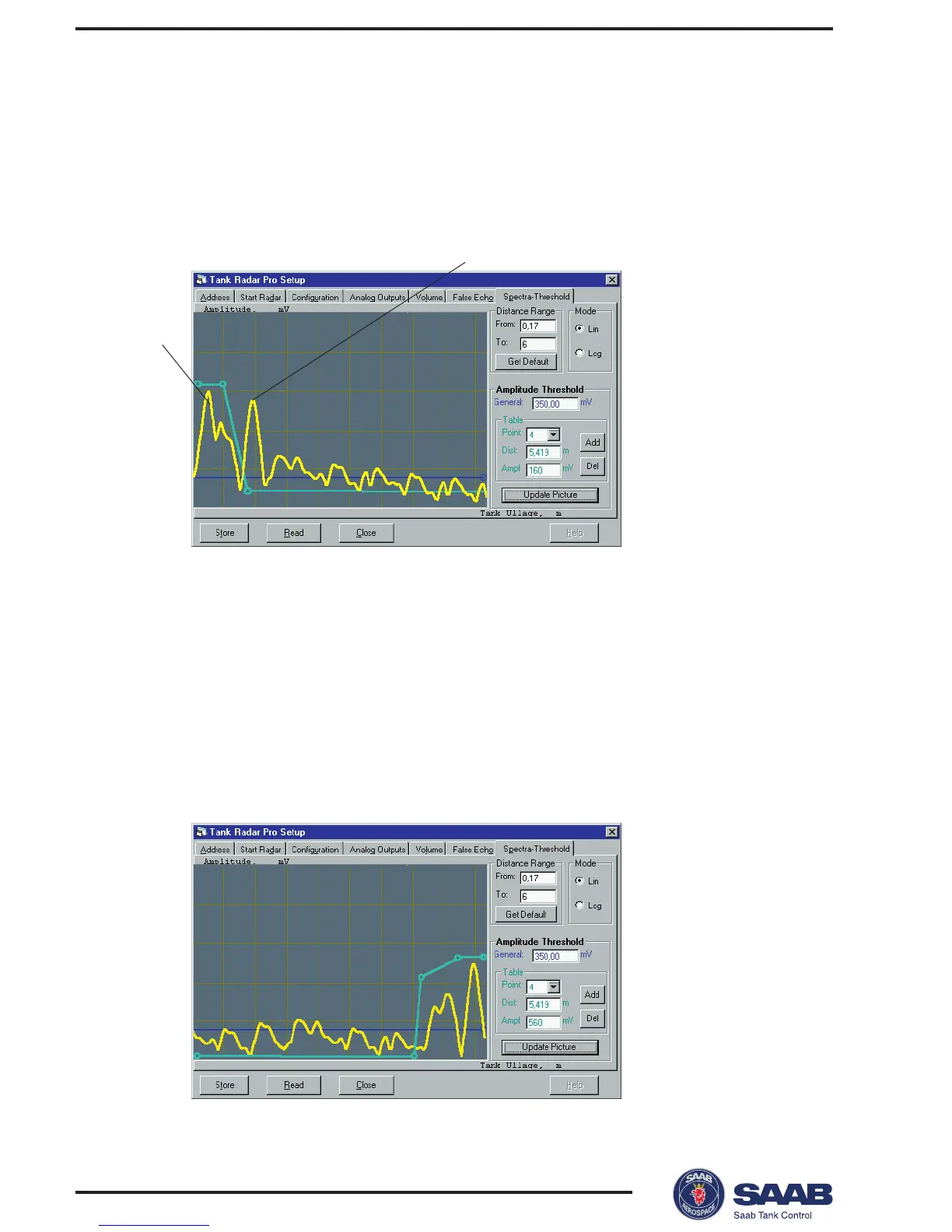

Example 1:
The amplitude threshold is used to remove the influence from
the tank nozzle.
Example 2:
In this example the amplitude threshold is used to filter out weak
disturbances close to the tank bottom. By using this technique
the risk of locking to a disturbance echo close to the tank bottom
is eliminated. This technique is particularly useful in tanks with
weak bottom echoes, like e.g. tanks with cone shaped outlets. In
this case you should also make sure that the Tank Presentation/
Bottom_echo_always_visible parameter is not set (see the de-
scription of Start Radar tab).
Influence
from
nozzle
Influence from pipe inside the tank
