Saeco Talea Touch - Right and Left Side Casing

Ideas with Passion
Loosen the screw as shown.
7.2 Right and left side casing

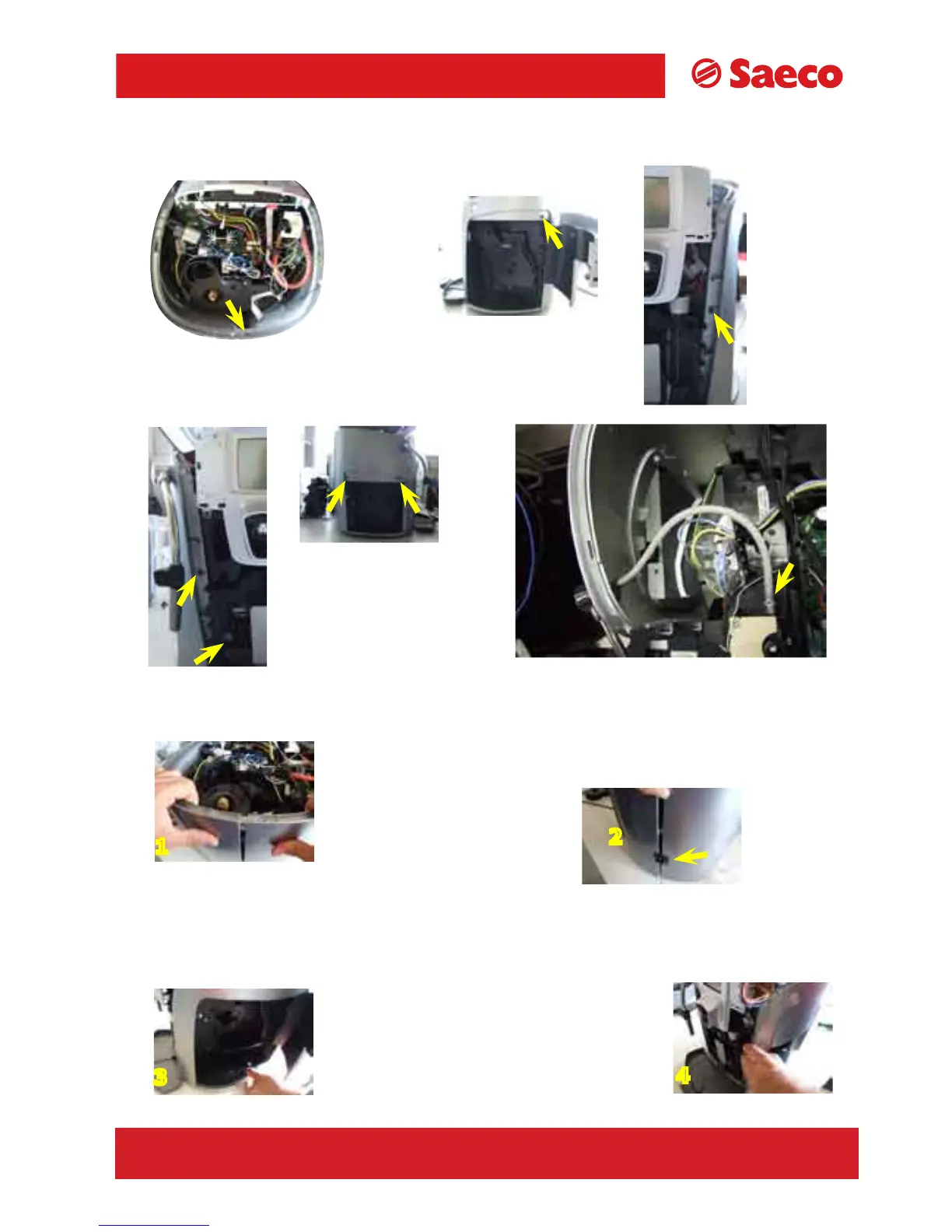

Split the two sides of the casing (see Fig..1).
Press from the bottom (see Fig.2).
Release and take it off from the side and at the bottom
(see Fig. 3), pulling towards you at the same time (see Fig. 4).
2/11
TALEA Section 07
REV00 - August 06
1
4
2
3
To remove the right
side, loosen the
screws as indicated.
To remove the left
side, loosen the
screws as indicated.
To take the left-side off, release the small
clamp and pull out the wire mesh pipe
connecting the steam pipe to the valve,
removing the metal band as shown.
