7.6 Heater and solenoid pilot unit

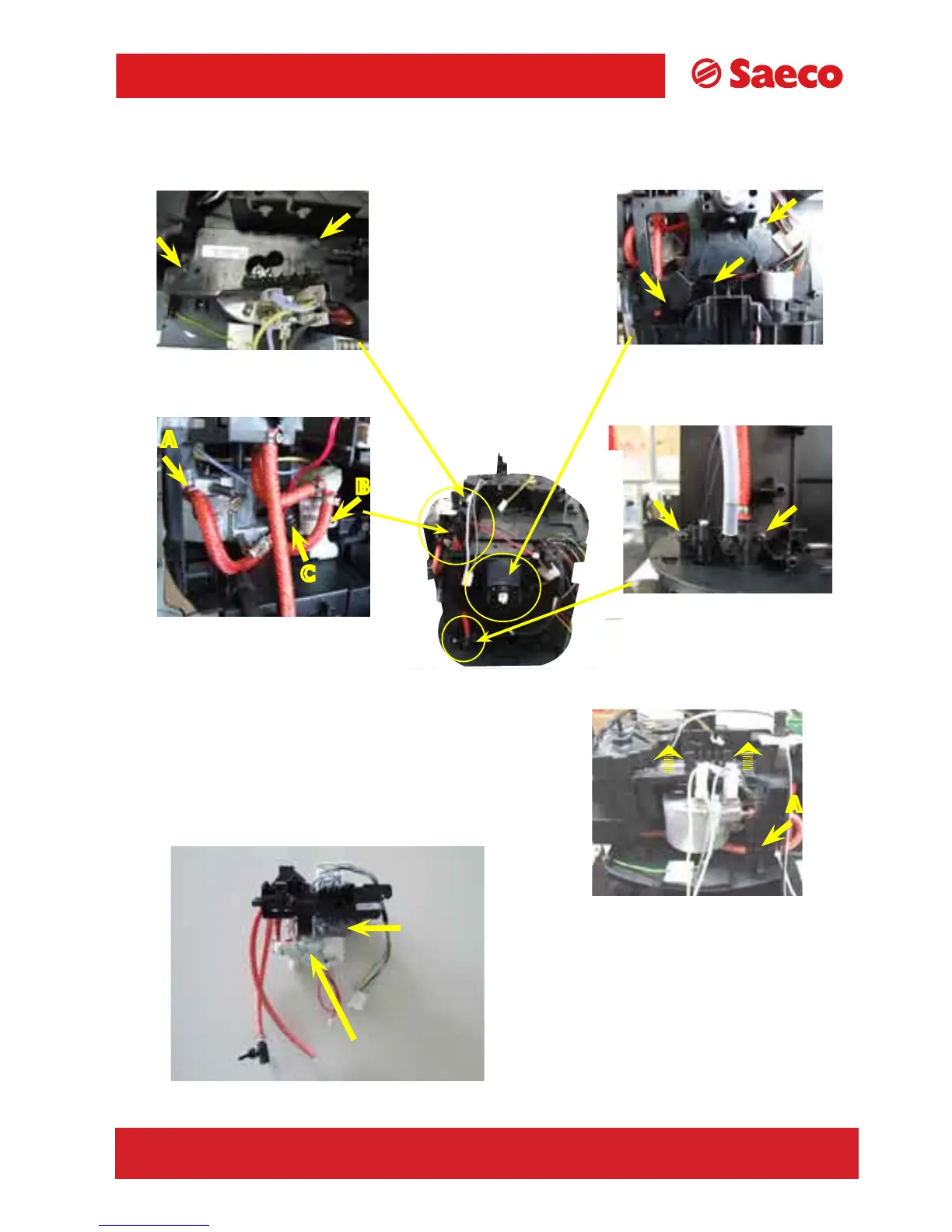

Loosen the screws as indi-
cated.
A
B
C
Take off the oetiker clamp A,
pull out the reinforced flex-
ible hose, loosen screw B and
withdraw the drain pipe C
from the solenoid pilot.
Loosen the screws on the
relief valve assembly.
A
Unhook the teeth anchor-
ing to the body and lift the
heater and solenoid pilot.
Heater
Solenoid pilot.
