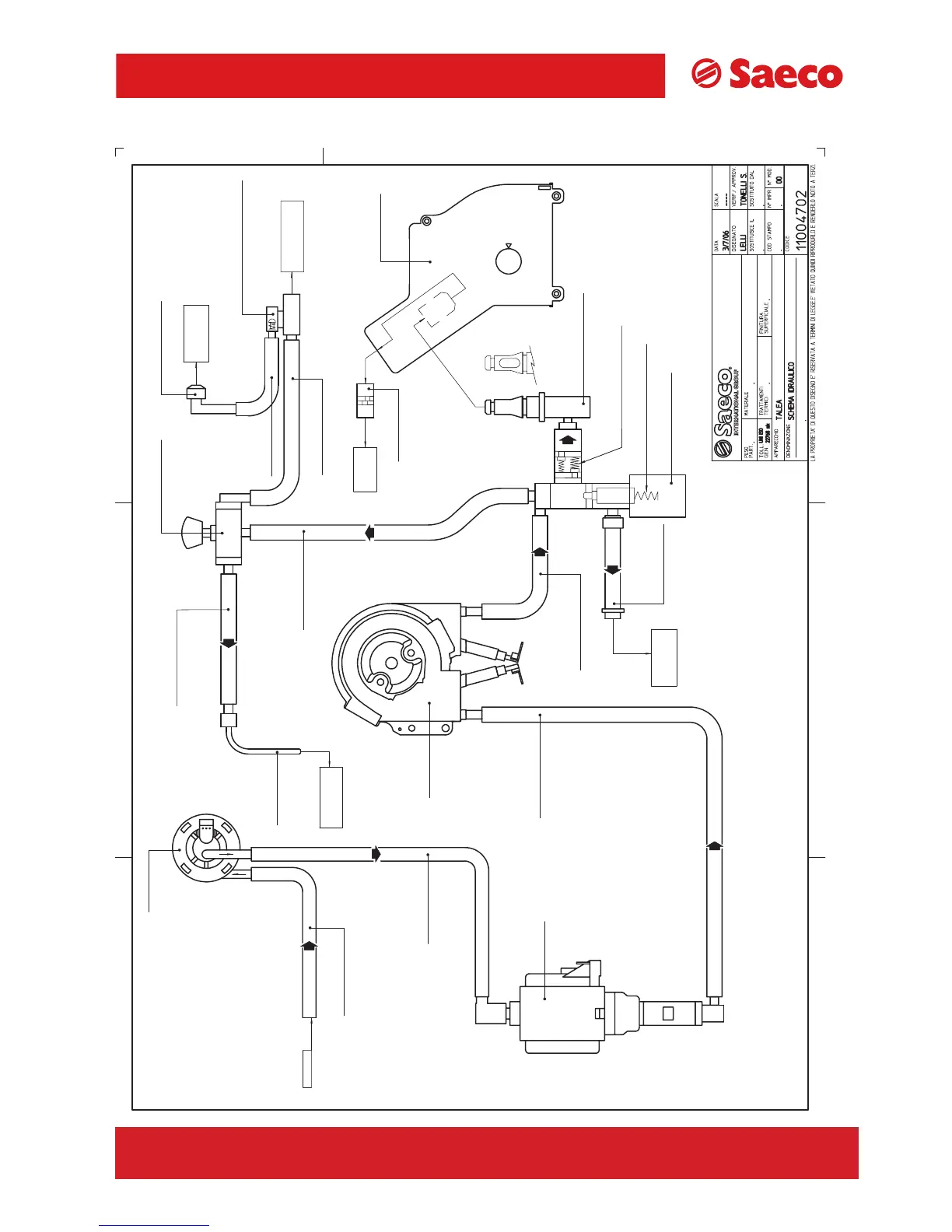

4.2 Talea water circuit
5/5
TALEA Section 04
REV00 - August 06
Turbine
Steam tube
Silicon tube
TANK
Silicon tube
Pump
Silicon tube
Reinforced silicon hose
Reinforced silicon hose
Reinforced silicon hose
Reinforced silicon hose
Reinforced silicon hose
STEAM/WATER DISPENSE
1300W heater
WATER DRAINED TO DRIP TRAY
Water drain connector
Water/steam valve
Water drain connector
WATER DRAINED TO
TANK
COFFEE DISPENSE
SBS valve
Connector with 3 bar relief valve
MILK ISLAND STEAM DISPENSE
Brew unit
Brew unit pin
Coffee dispense valve (3-5 bars)
Drain valve Relief valve (16-19 bars)
