Saeco Talea Touch - Core Component Servicing Procedures

Ideas with Passion
3/11
TALEA Section 07
REV00 - August 06

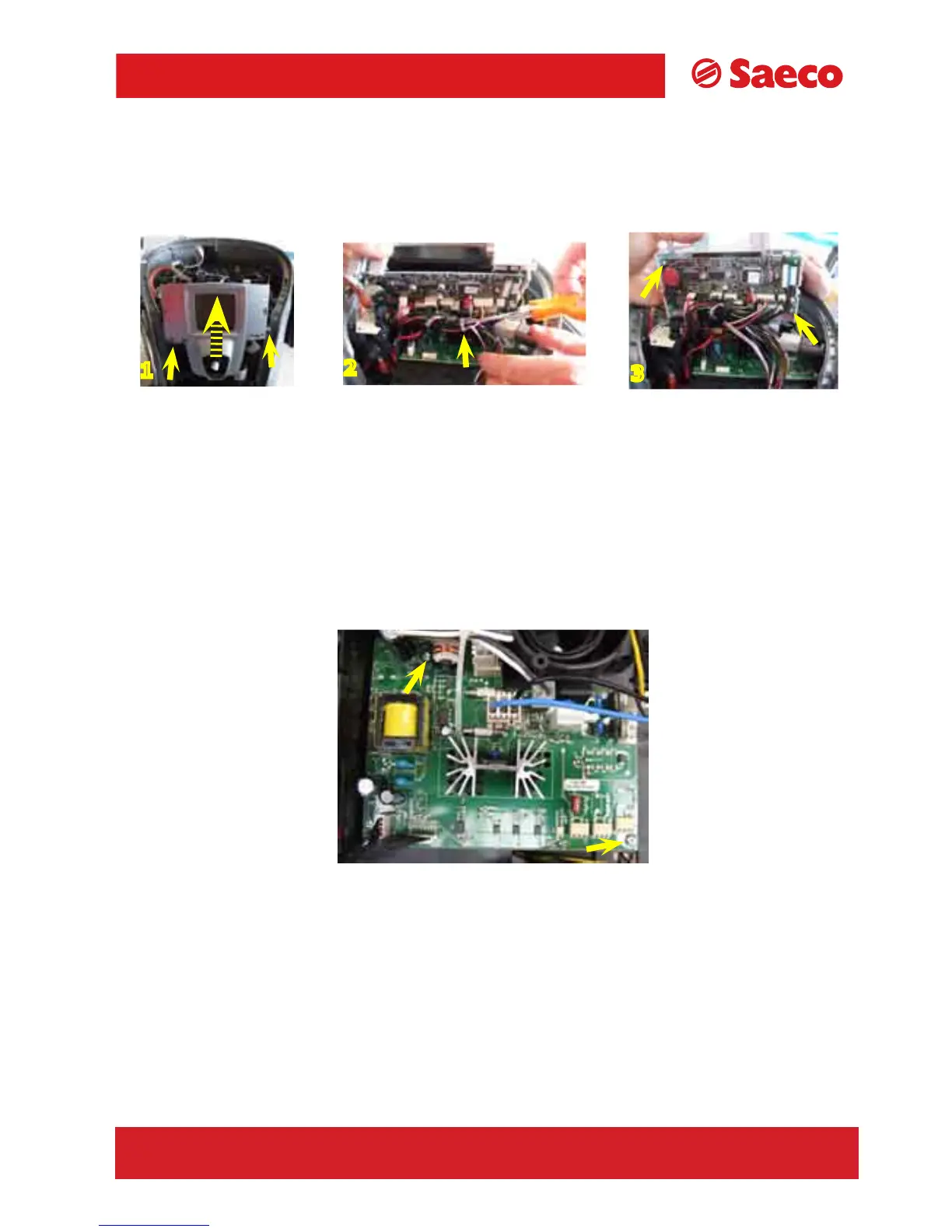

7.3 Electronics
CPU card
Fig.1 Loosen the screws as indicated and turn the front piece upwards to get to the card.
Fig.2 Take off the small clamp.
Fig.3 Disconnect all connectors and loosen the screws as indicated.
3
2
1
Power board
Remove the small clamps, disconnect all connectors and loosen the screws indicated.
