4/11
TALEA Section 07
REV00 - August 06

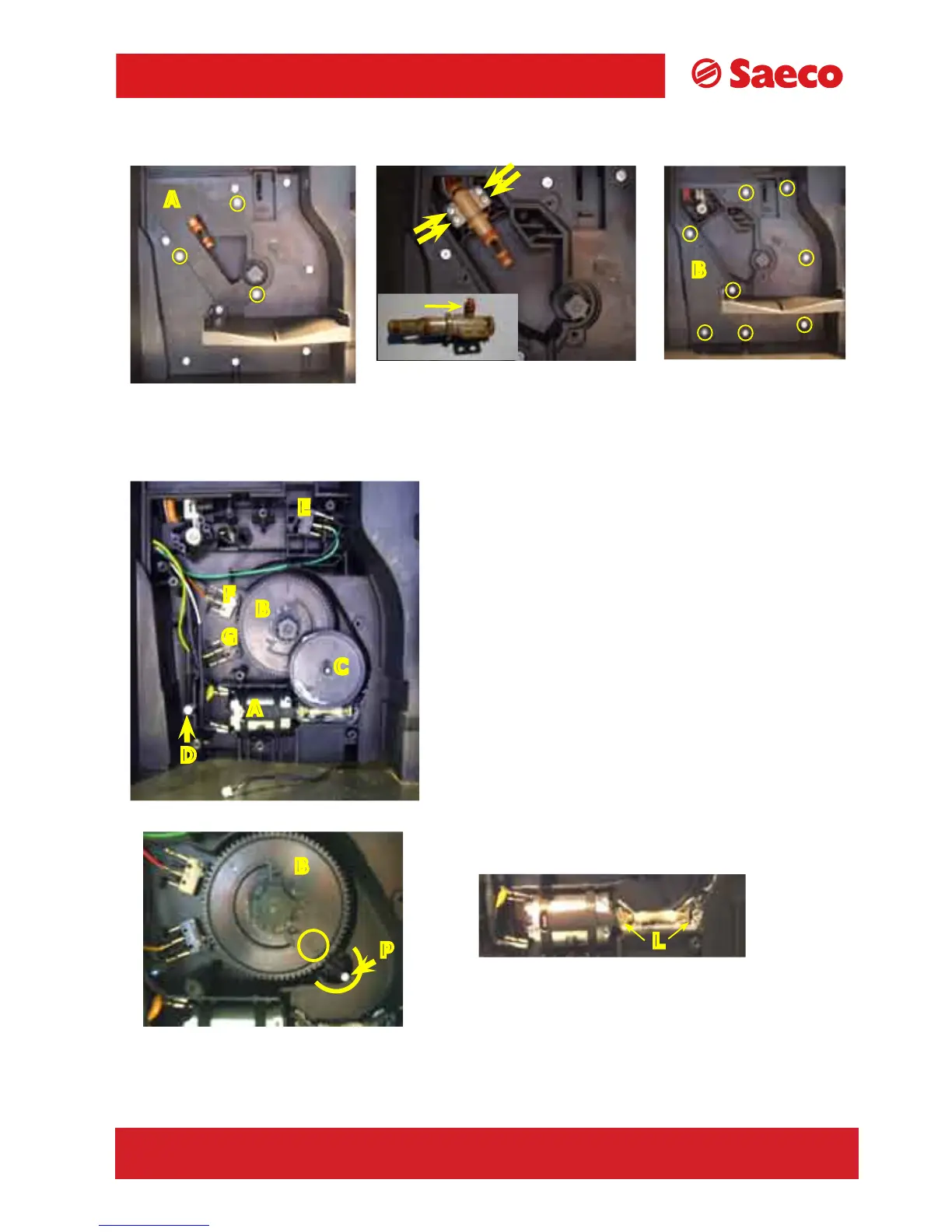

7.4 Gearmotor
Remove the safety guard (A)
by loosening the screws as
indicated.
Loosen the four screws indicated
and remove the heater valve asm.
When refitting it, be careful with
the two oil-rings shown in the
smaller picture.
Disassemble the pro
-
tection plate (B) by
loosening the screws as
indicated.
The following are located inside the compartment
protected by the guard:
- Electric motor (A) with gears (B) and (C) for
transmission and timing of the brew group.
- The drip tray present reed switch
sensor (D).
- Brew group present microswitch (E).
- Microswitch (F) brew group at Home posi-
tion.
- Microswitch (G) brew group at dispensing
position.
Withdraw the gear (C) that meshes with the motor
transmission shaft.
Withdraw the large gear (B).
Pull out the motor (A) complete with transmission
shaft (H).
A
B
A
B
E
C
D
F
G
Insert the gear (B), taking care
that the arrow stamped on the
element is within the opening that
contains pin (P).
P
B
Install the motor and transmission shaft,
inserting the guides (L) in the relative seat.
L
