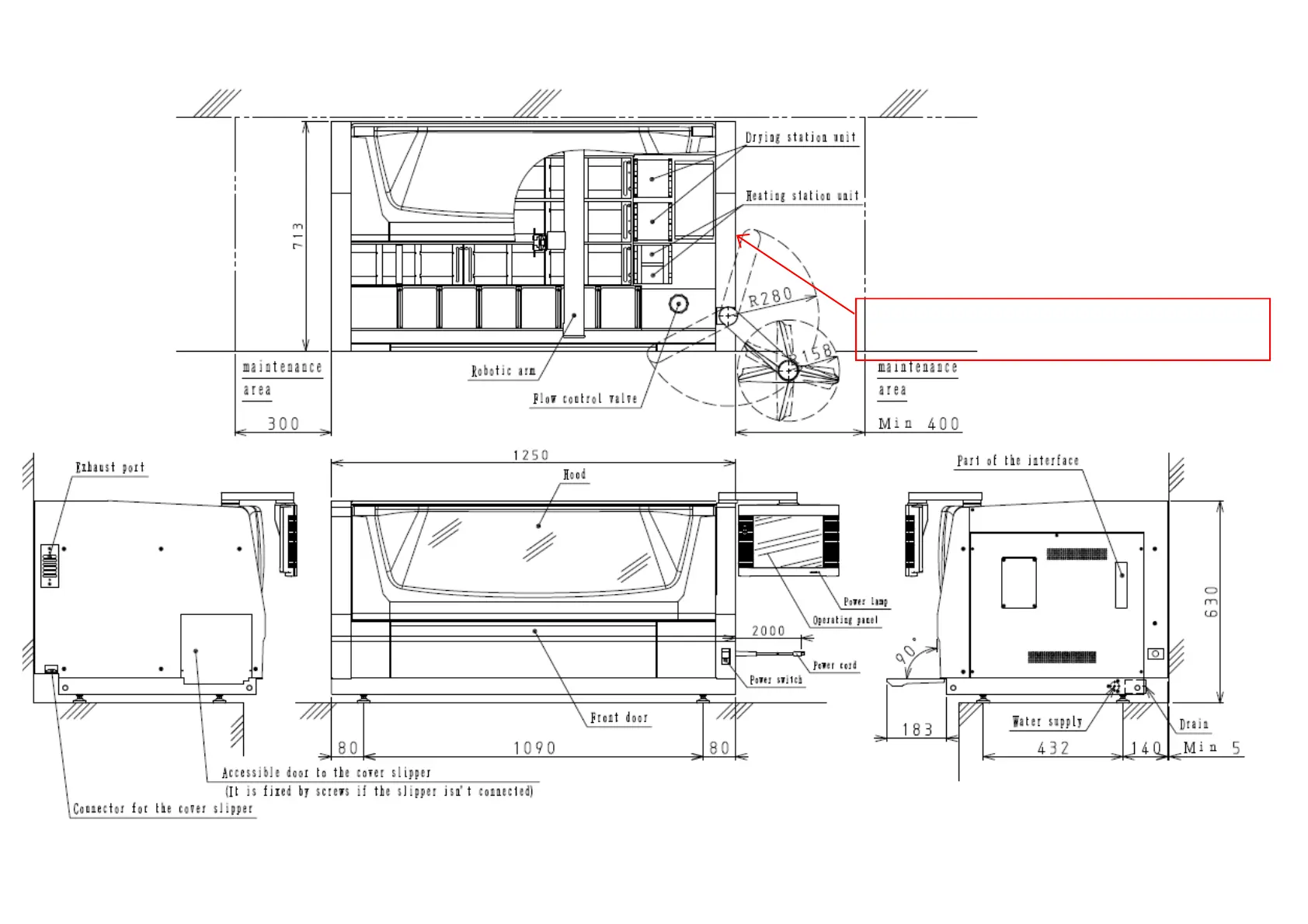

Figure 5-1 Overview of Installation Requirements
The instrument has a universal voltage system and connectable
to the following power source.
・Single phase, AC100V±10% 50/60Hz 15A or more
Outlet with grounding electrode
・Single phase, AC115V±10% 50/60Hz 15A or more
Outlet with grounding electrode
・Single phase, AC230V±10% 50/60Hz 7A or more
Outlet with grounding electrode
Rated power consumption:
・AC100V 50/60Hz : 10A
・AC115V 50/60Hz : 11A
*1: A clearance required for
maintenance of the Prisma Plus
installed alone.
• When the instrument is linked
to Tissue-Tek Film or Glas g2,
secure enough space for the
instrument to be linked.
<Reference>
Approx. 1,050mm, including a
clearance for maintenance
work
Electrical parts are located inside the right of the instrument.
Install the instrument in a place away from water splashes
or take a splash-preventive measure.
To Next Page
