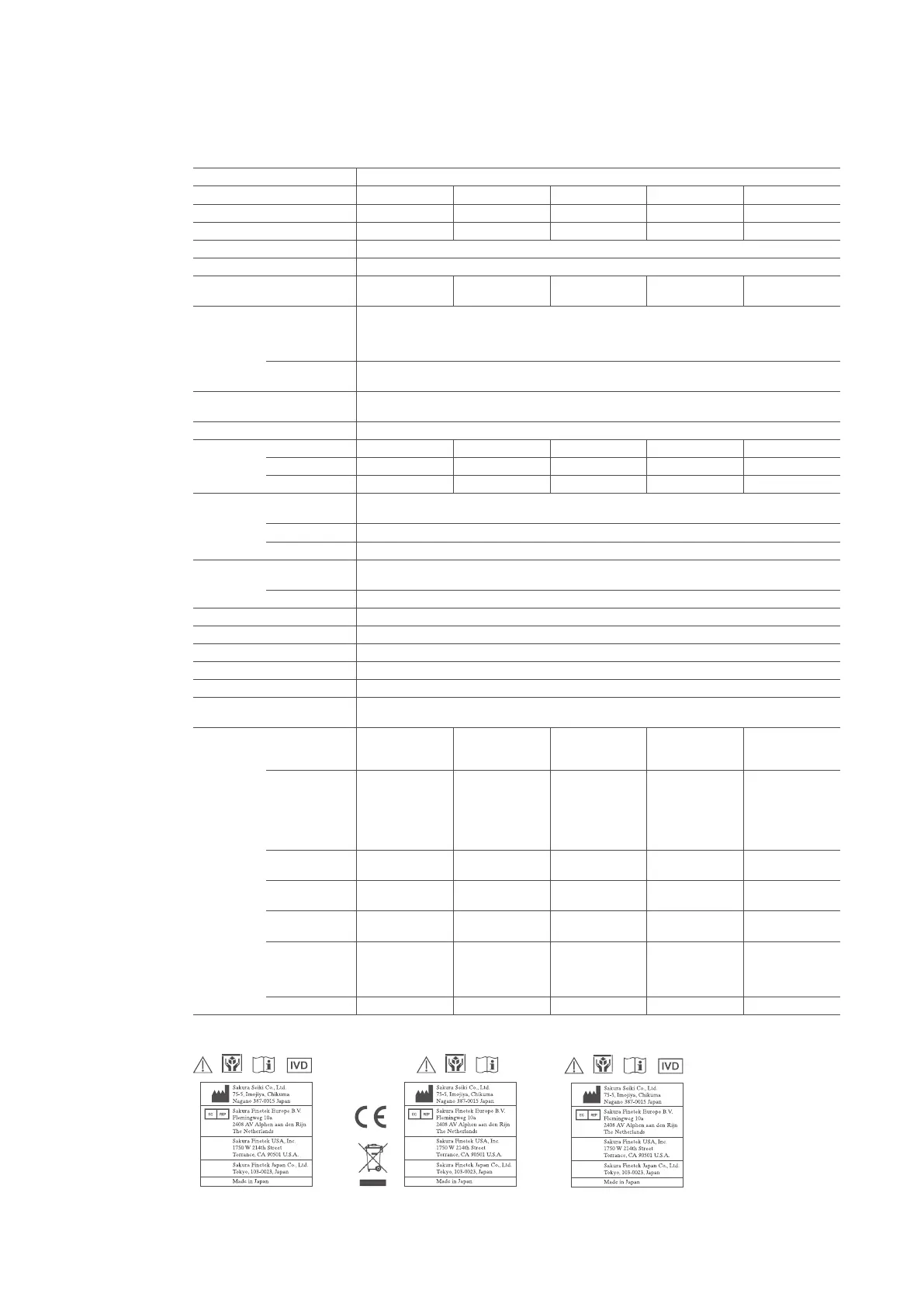

1.4.2 Specications
Brand name Tissue-Tek
®
TEC
™
6 Embedding Module
Model TEC 6-EM-J0 TEC 6 -EM-A1 TEC 6-EM-E2 TEC 6-EM-JC2 TEC 6-EM-J2
Product code 5104 5108 5112 5116 5128
Manufacturing license number 20B2X00014000035 - - - -
Dimensions 575 (W) × 642 (D) × 377 (H) mm
Weight Approximately 25kg
Rated power supply
AC100V 50/60Hz
8.5A
AC115V 60Hz 9.0A AC230V 50Hz 4.0A AC230V 50Hz 4.0A AC230V 50Hz 4.0A
Temperature
control
Heated area &
Program-
mable Settable
range
Parafn chamber: 50 to 75°C
Left and right warming chambers: 50 to 75°C
Hot plate: 50 to 75°C
Cold spot
temperature
15°C or below (room temperature of 25°C, no wind, no load (nothing on the cold spot))
Safety device
Overcurrent protection: Circuit protector
Heater overheat protection: Self-holding over temperature protector, temperature fuse)
Location of the instrument Indoor use
Required
facilities
Voltage 100 VAC±10% 115 VAC±10% 230 VAC±10% 230 VAC±10% 230 VAC±10%
Frequency 50/60 Hz 60 Hz 50 Hz 50 Hz 50 Hz
Capacity 15 A or higher 15 A or higher 10 A or higher 10 A or higher 10 A or higher
Operating
environment
Ambient
temperature
10 to 35°C
Relative humidity 30 to 85% (non-condensing)
Altitude 2,000m or lower
Storage
environment
Ambient
temperature
-10°C to 60°C
Relative humidity 30 to 85% (non-condensing)
Overvoltage category II (2)
Transient overvoltage up to the level 1500V
Electromagnetic environment Normal electromagnetic environment
Pollution degree* 2 (*per IEC61010)
Noise* 60 dB or less (A-weighted level) (*per JIS Z8737-2:2000)
Vibration/Drop
Vibration test per JIS Z 0200, JIS Z 0232
Drop test per JIS Z 0200, JIS Z 0202
Regulatory
and
applicable
standards
Law
Pharmaceutical Affairs
Law
FDA Class1 IVD CE Marking
EMC/LVD/ RoHS
Directive
CFDA IVD
Electrical safety
evaluation
JIS C 1010-1:2014
JIS C 1010-2-101:2013
UL61010-1; 3rd ed:
2012
CSA-C22.2 No.61010-
1-2012
IEC61010-2-010:2014
IEC61010-2-101:2015
EN 61010-1-2010 GB 4793.1-2007
(IEC61010-1:2001)
GB 4793.6-2006
(IEC61010-2-010:2005)
YY 0648-2008
(IEC61010-2-101:2002)
IEC61010-2-101:2015
IEC61010-2-010:2014
Risk management
JIS T 14971:2012
IEC 62366:2007
- - - ISO14971:2007
Medical equipment
software
JIS T 2304:2017 - - - -
Quality
management
ISO13485:2016 - - - ISO13485:2016
Electro-magnetic
compatibility
JIS C 1806-2-6:2012 - EN 61326-1:2013 GB/T 18268.1-2010
(IEC61326-1:2005)
GB/T 18268.26-2010
(IEC61326-2-6:2005)
IEC61326-2-6:2012
Others - - EN 50581:2012(RoHS) China RoHS 2 -
(TEC 6-EM-A1) (TEC 6-EM-E2) (TEC 6-EM-J2)
