1.6.3 Control Panel Display
The control panel display is located on the Embedding Module. You can use
this display to set various parameters and conditions such as temperatures
and times. The control panel also operates and displays the status of the
Cryo Module.

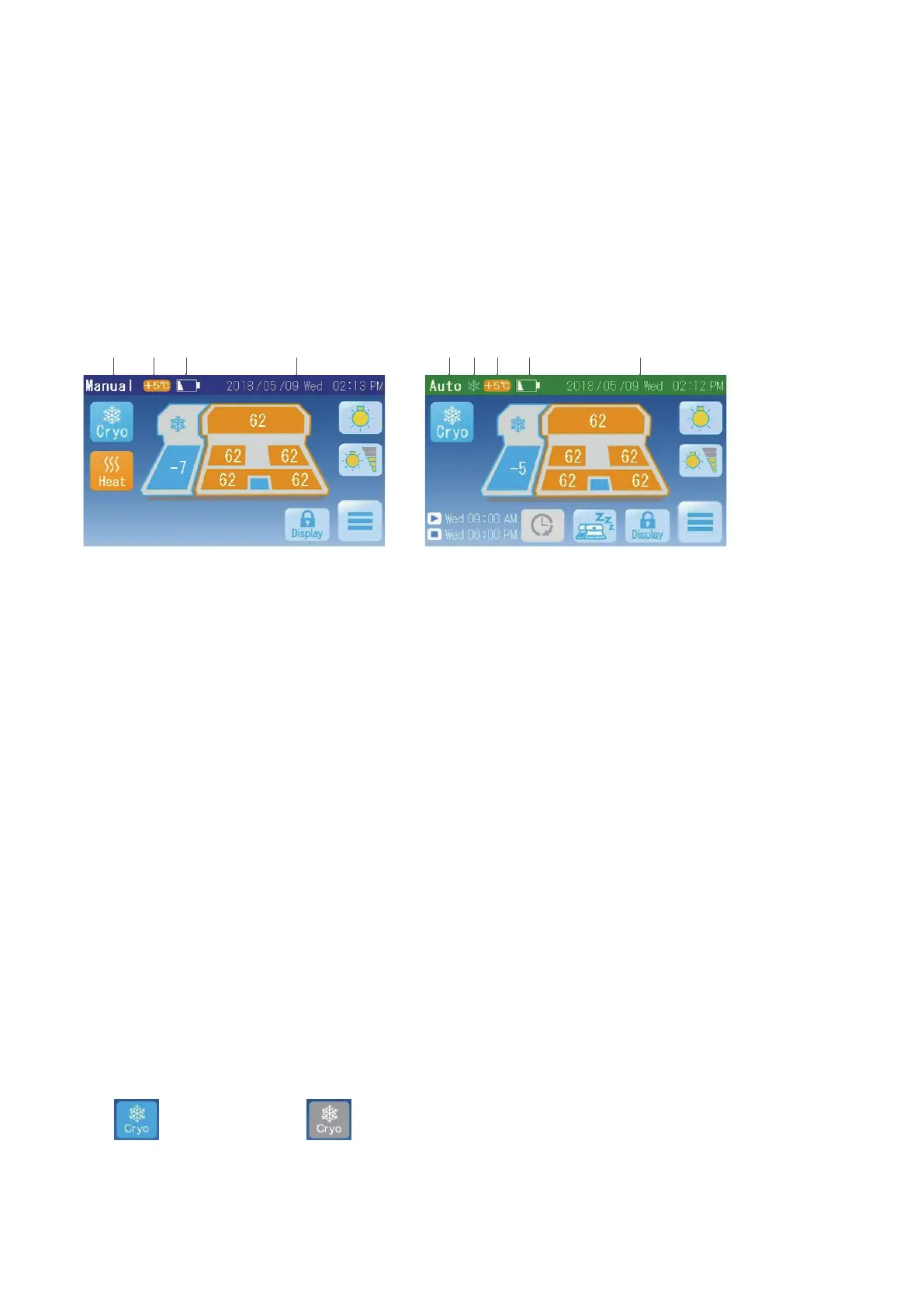

•Operation Screen (Manual Operation) •Operation Screen (Auto Operation)
[1] Operation method display area
Whether “Manual” or “Auto” is displayed depending on the operation
mode.
[2] Quick heating mode display icon
This icon comes on when quick heating is started.
[3] Low battery alarm icon
This icon comes on when the voltage in the battery of the display
becomes low. When this icon comes on, the battery must be replaced.
Refer to 5.1.4 What to Do When the Low Battery Alarm Icon is
Indicated.
[4] Date, day-of-the-week and time area
The current date, day of the week, and time, are displayed.
[5] Cryo button
An operation switch for the Cryo Module. Touching this button when the
icon is gray changes the icon color to blue, and the cooling operation will
start. Touching it again changes the icon color to gray and the cooling
operation will stop.
: Operating : Stopping
This button is not displayed if the Cryo Module is not connected or while
the Cryo Module is paused during auto operation.
[5]
[1] [2] [3] [4]
[10]
[11]
[12]
[13]
[14]
[15]
[20]
[6]
[7]
[8]
[9]
[5]
[1] [2][21] [3] [4]
[10]
[11]
[12] [13]
[14]
[15]
[16]
[17]
[18] [19] [20]
[7]
[8]
[9]
