Salus SQ610 Quantum - Pairing with Wireless TRV radiator head

53

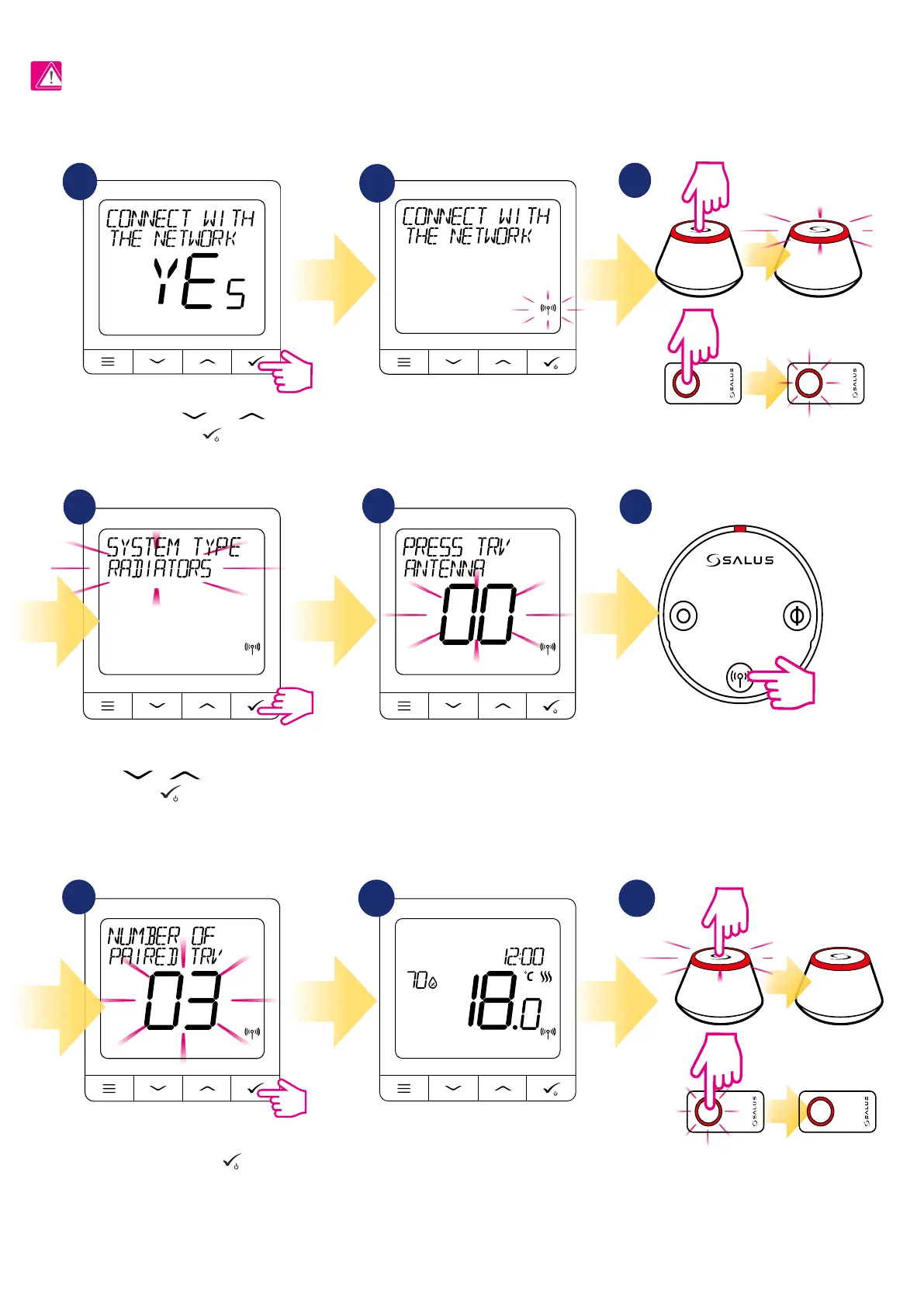

7.3 Pairing with Wireless TRV radiator head
6
Select system type “RADIATORS”
using or buttons and
conrm it by button.
Hold antenna button for 10 sec. on all TRV’s
which you want to pair with your
thermostat.
On the LCD you will see the number of paired TRV’s.
Once all TRV’s are paired - press
button to nish
the pairing process.
10 sec
8
You can pair up to 6 TRV’s with 1 thermostat.
All TRV’s have to be within the same room
with thermostat.
When thermostat is succesfully
paired main screen will be
displayed.
2
5
4
7
1
PLEASE NOTE!
For easier installation, please make sure you have already added wireless TRV radiator heads to your ZigBee network (please refer to the wireless TRV
radiator head manual instruction).
Now thermostat is looking for the
signal from the coordinator...
3
Open the ZigBee network
OR
5 sec.
5 sec.
9
Close the ZigBee network
OR
5 sec.
5 sec.
3
3
Select “YES” by „ ” or „ ”
buttons. Conrm by button.
