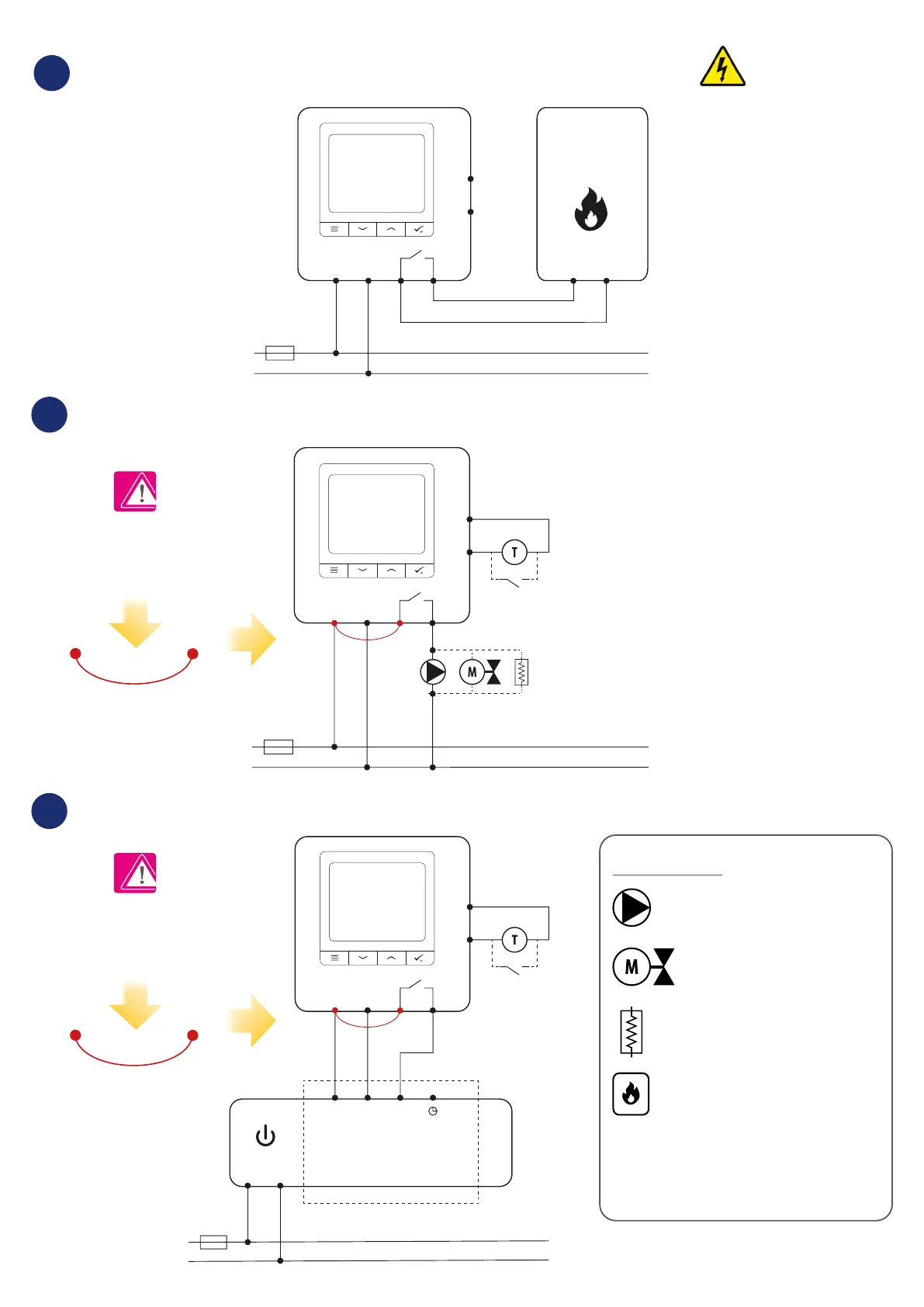

Wiring diagram for volt-free connection (e.g. boiler control):
1
2
Wiring diagram for 230VAC connections:
N
L
L
N
AC 230V
S1
S2
BOILER CONNECTIO
N
N L
S1
S2
L
N
AC 230V
COM NO
COM
NO
*
MAX 3(1)
A
S
3
Wiring diagram for control box connection:
N L
N
1-8 Zones
SLL
S1
S2
L
N
AC 230V
Power
NO
N L
COM
Legend:
Boiler connection * - Boiler’s contacts
for ON/OFF thermostat (according to the
boiler’s instructions)
Pump
Boiler
Valve actuator
Heating mat
KL08
NSB
S
Wiring diagrams for SQ610 Quantum setted as a Wired Device
Please always ensure the AC
230V mains power is switched
o before installing or
working on any components.
Warning:
Please note: Diagram shows the
jumper use. Jumper is included with
the set with SQ610 Quantum.
Please note: Diagram shows the
jumper use. Jumper is included with
the set with SQ610 Quantum.
