Sam4s ELLIX 20 - Usb Interface

 - 45 -

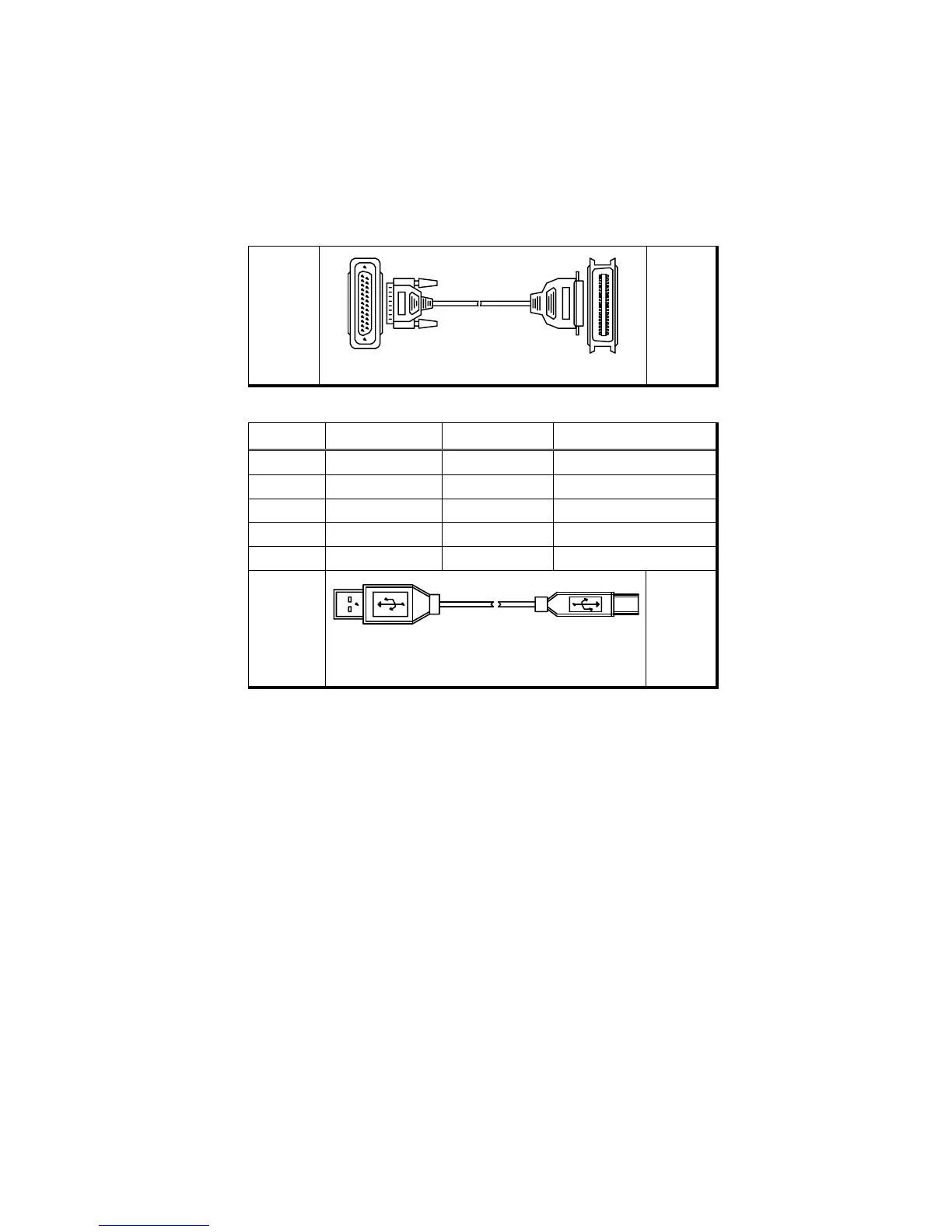

Host side
(DSUB25
MALE)
1
13
36 18
19
14
25
1
DSUB 25P MALE CENTRONICS 36P
( INTERFACE CABLE PIN CONNECTION )
Printer
side
 USB Interface
Pin Signal name Line Color Function
Shell Shield Drain Wire Frame Ground
1 VBUS Red Host Power
2 D- White Data Line(D-)
3 D+ Green Data Line(D+)
4 GND Black Signal Ground
Host side
"A" TYPE PLUG
"B" TYPE PLUG
( USB INTERFACE CABLE )
Printer
side
