2.Productspecicationanddescription

2.2.3.PaperPath

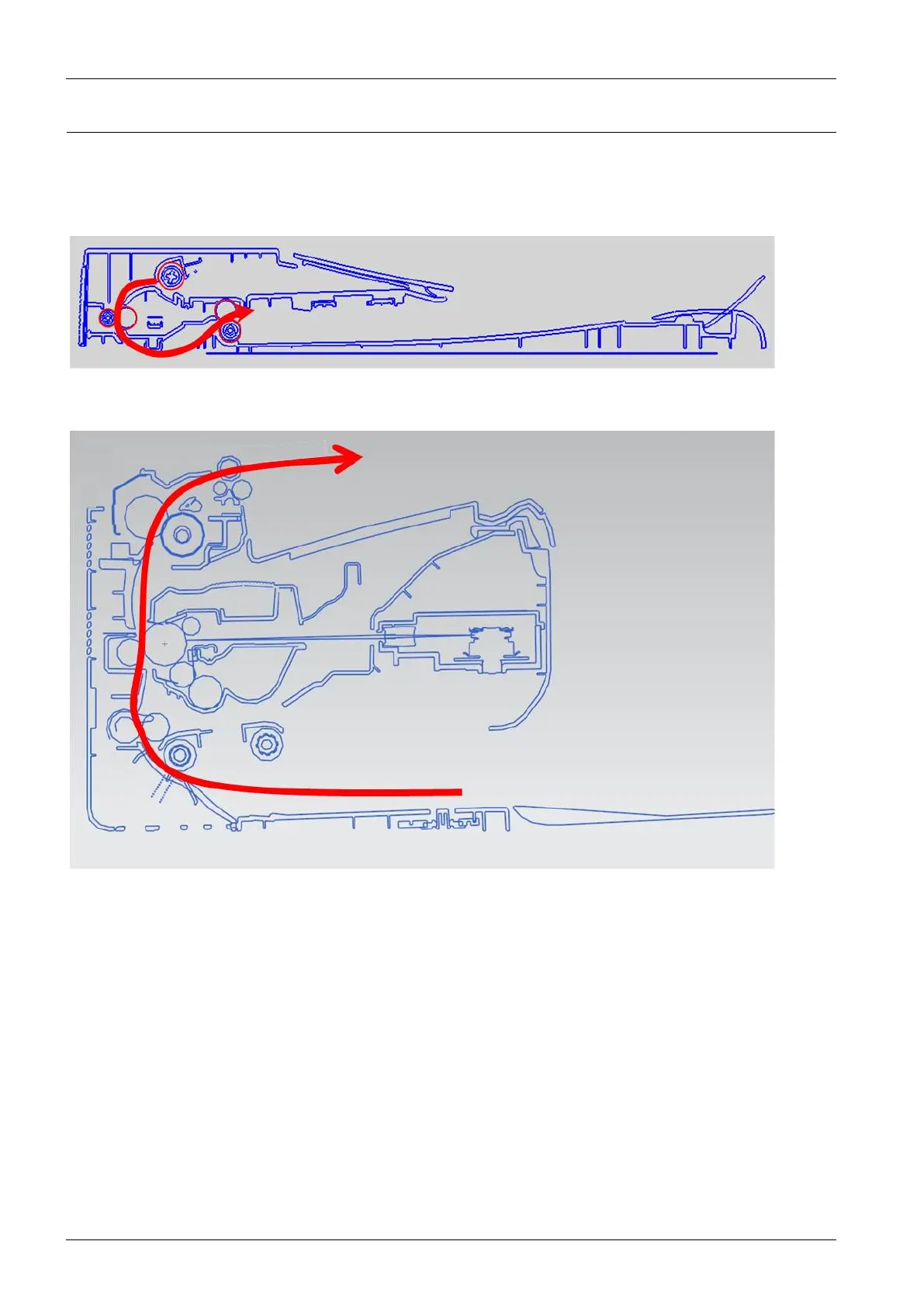

Thefollowingdiagramdisplaysthepaththepaperfollowsduringtheprintingprocess.

[ADF]

[Engine]
