4.AlignmentandTroubleshooting

4.1.7.2.Updatethermwarebyusingthenetwork

Upgradingpreparations

•WiredorWirelessNetworkconnectionisestablished.

•Firmwareletoupdate

UpgradeProcedure

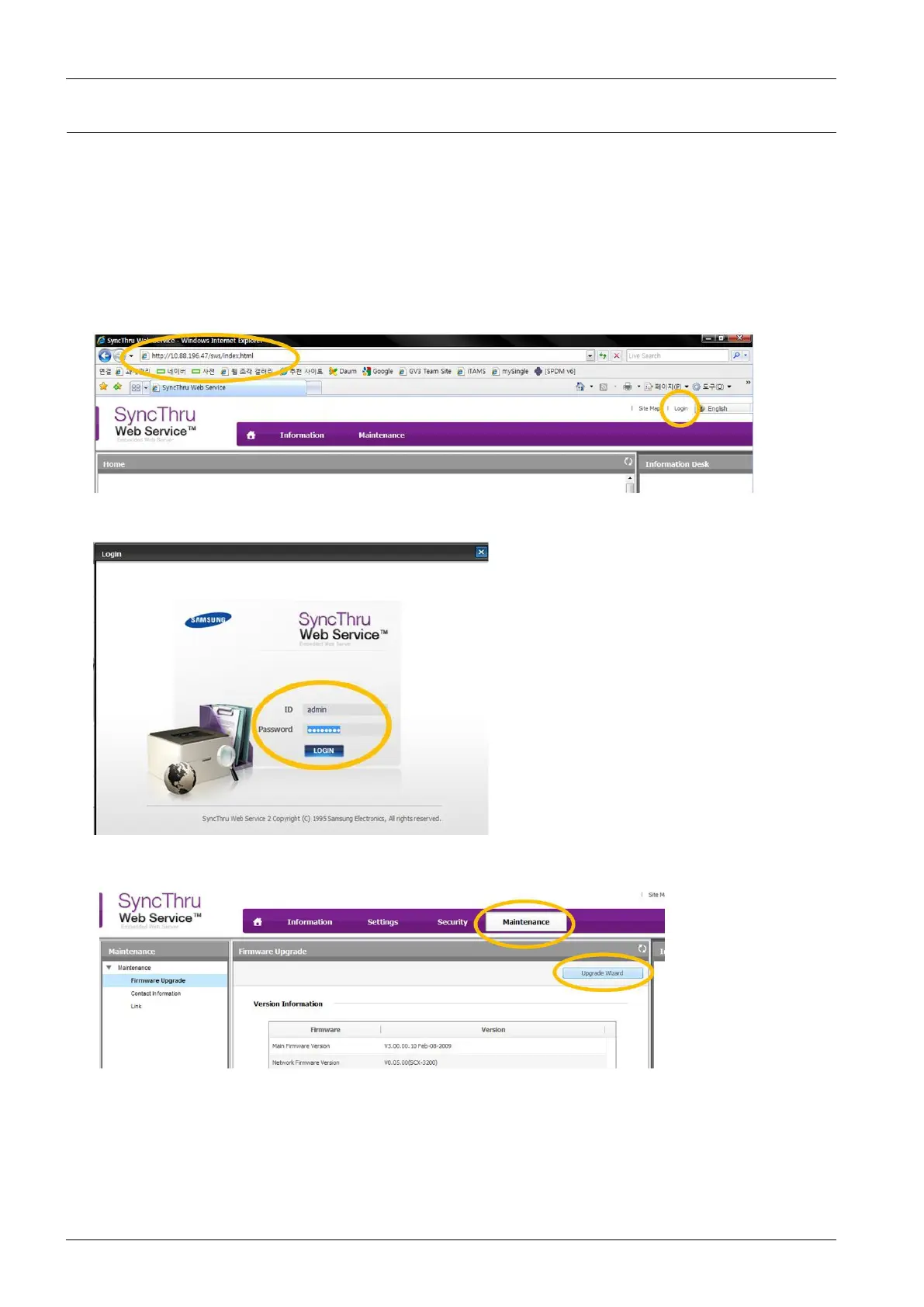

1)OpentheWeb-browserandinputIPaddressofmachine.Click“Login”.

2)Log-inAdminMode.(ID:admin,PW:sec00000)

3)SelectMaintenancemenuandclick“upgradewizard”
