2.Productspecicationanddescription

2.2.4.6.TonerCartridge

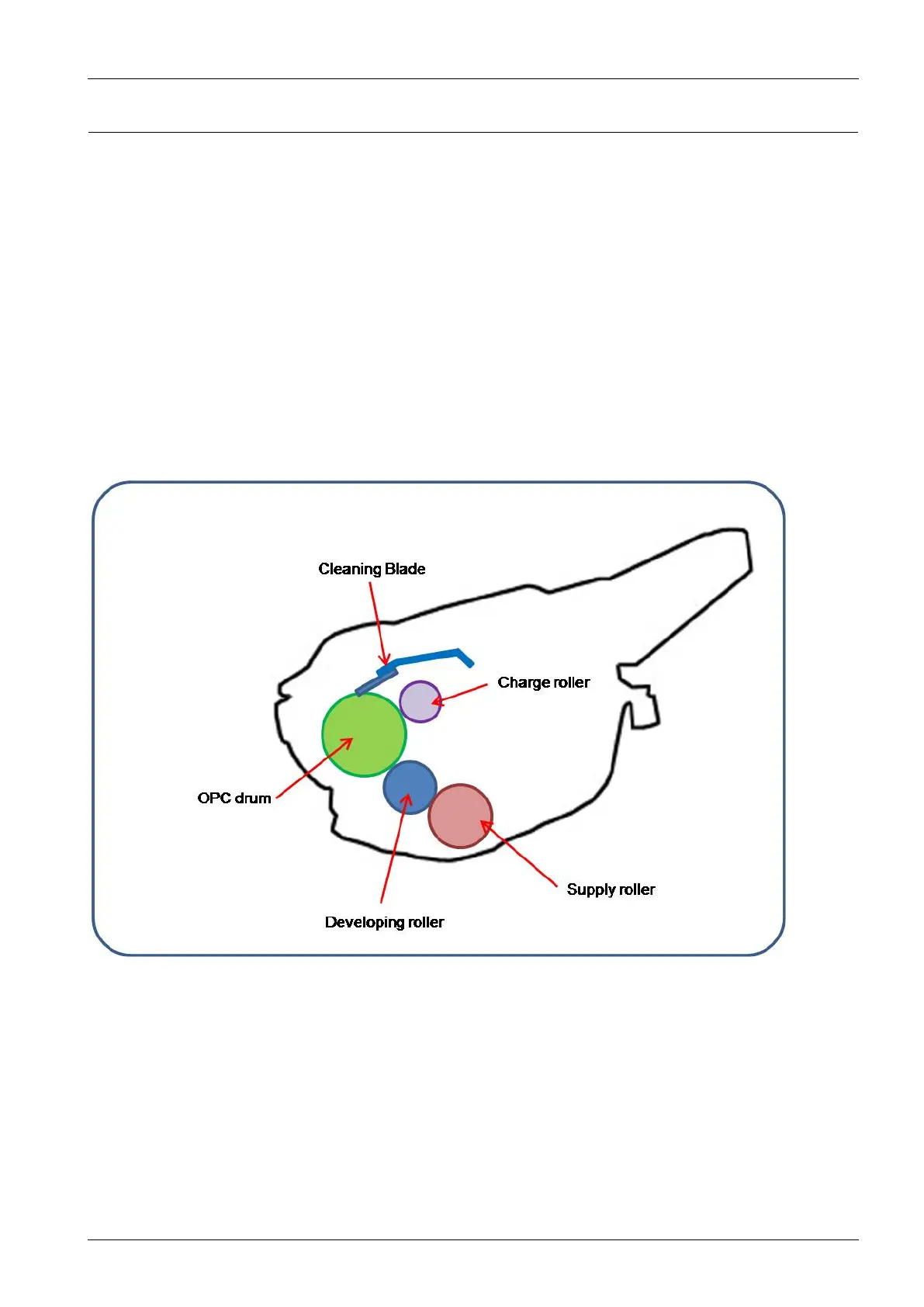

Byusingtheelectronicphotoprocess,itcreatesavisualimage.Inthetonercartridge,theOPCunitandthedeveloping

unitareinabody.TheOPCunithasOPCdrumandchargingroller,andthedevelopingunithastoner,supplyroller,

developingroller,andblade.

•DevelopingMethod:Nonmagneticsinglecomponentnon-contactingmethod

•Toner:Nonmagneticsinglecomponentpulverizedtypetoner

•Thelifespanoftoner(ISO19752pattern/A4standard)

-Initialtoner:500pages

-Salestoner:1,000pages

•OPCCleaning:Collectthetonerbyusingcleaningblade

•Handlingofwastedtoner:Collectthewastedtonerinthecleaningframebyusingcleaningblade

•Classifyingdevicefortonercartridge:IDisclassiedbyCRUM
