3.DisassemblyandReassembly

3.3.15.LSU

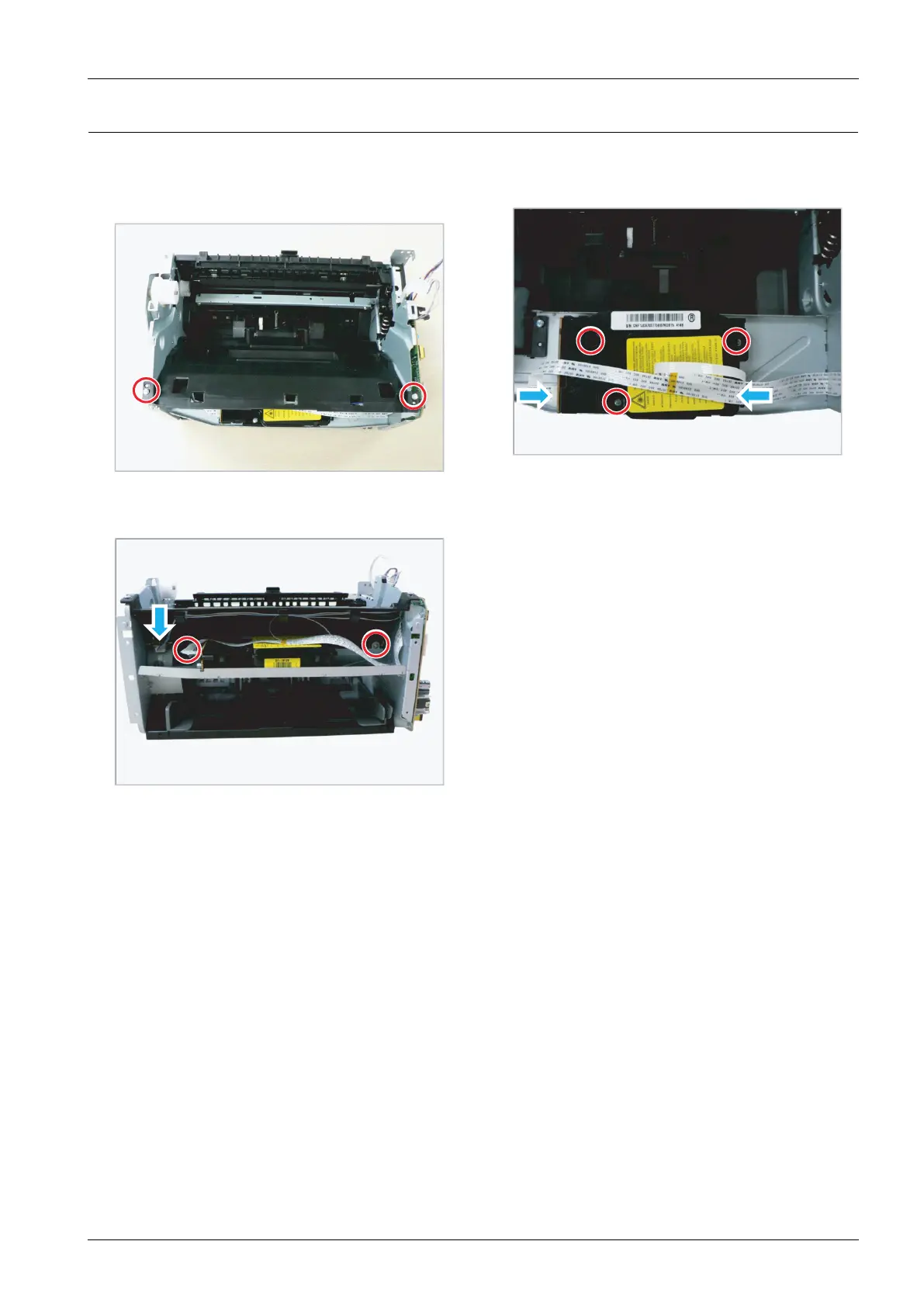

1.Removeallcovers.

2.Remove2screwssecuringtheLSUcover.

3.Remove2screwssecuringtheLSUcover.Unplugthe

motorconnector.AndreleasetheLSUcover.

4.Unplug2atcables.Remove3screws.Andrelease

theLSU.
