2.Productspecicationanddescription

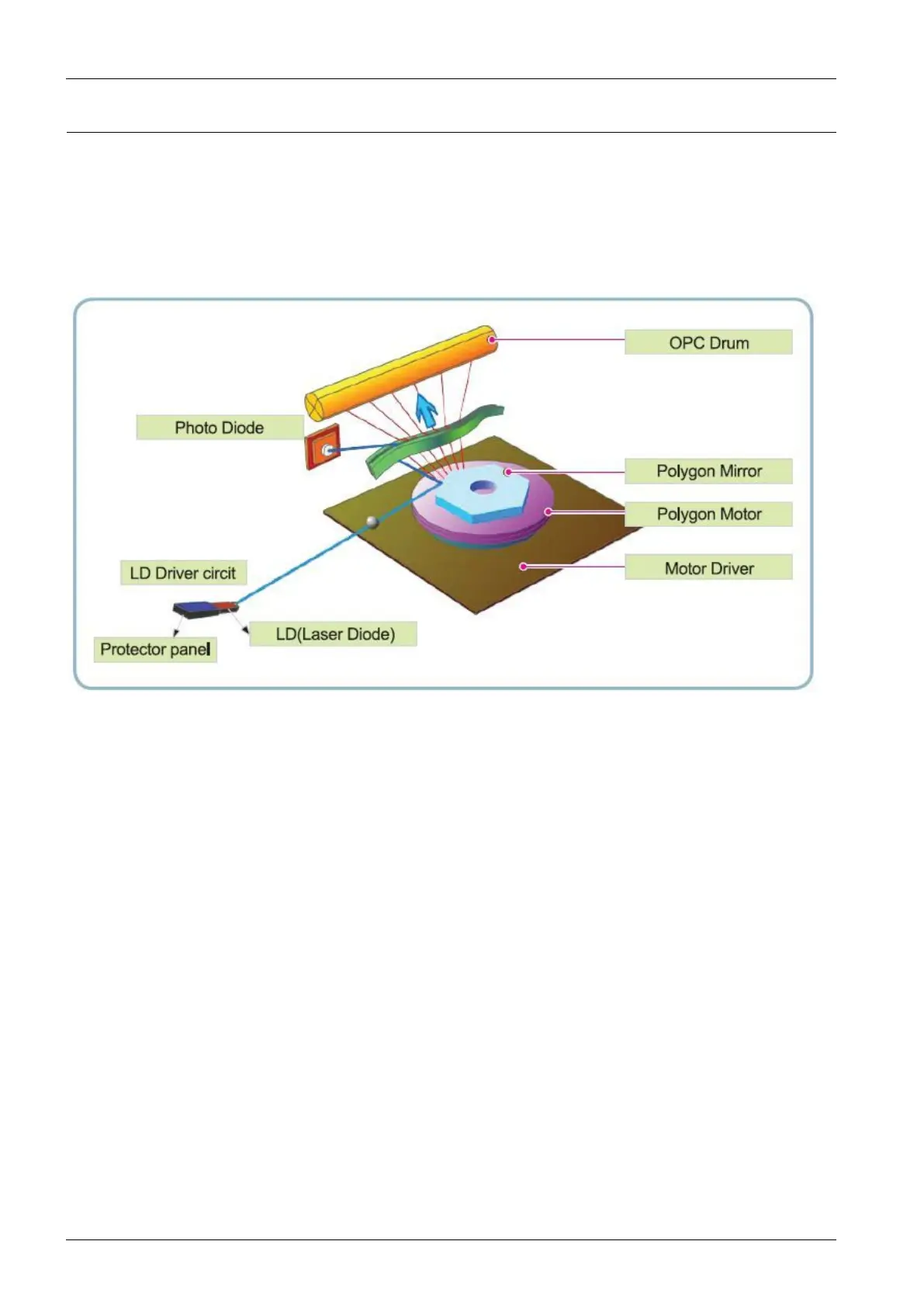

2.2.4.5.LSU(LaserScannerUnit)

ItisthecorepartoftheLBP(LaserBeamPrinter)whichswitchesfromthevideodatareceivedtothecontrollertothe

electrostaticlatentimageontheOPCdrumbycontrollinglaserbeam,exposingOPCdrum,andturningprincipleofpolygon

mirror.TheOPCdrumisturnedwiththepaperfeedingspeed.TheHSYNCsignaliscreatedwhenthelaserbeamfromLSU

reachestheendofthepolygonmirror,andthesignalissenttothecontroller.ThecontrollerdetectstheHSYNCsignalto

adjusttheverticallineoftheimageonpaper.Inotherwords,aftertheHSYNCsignalisdetected,theimagedataissentto

theLSUtoadjusttheleftmarginonpaper.Theonesideofthepolygonmirrorisonelineforscanning.
