OfficeServ 7200-S INSTALLATION
TECHNICAL MANUAL PART 3 MAY 2010
3.23
3.3.9 8COMBO/8COMBO2
These boards provide 8 ports for connecting analog stations and 8 ports for connecting
Samsung Digital Keysets. These boards can go into slots 1 through 5 in either cabinet. Add as
many as needed.

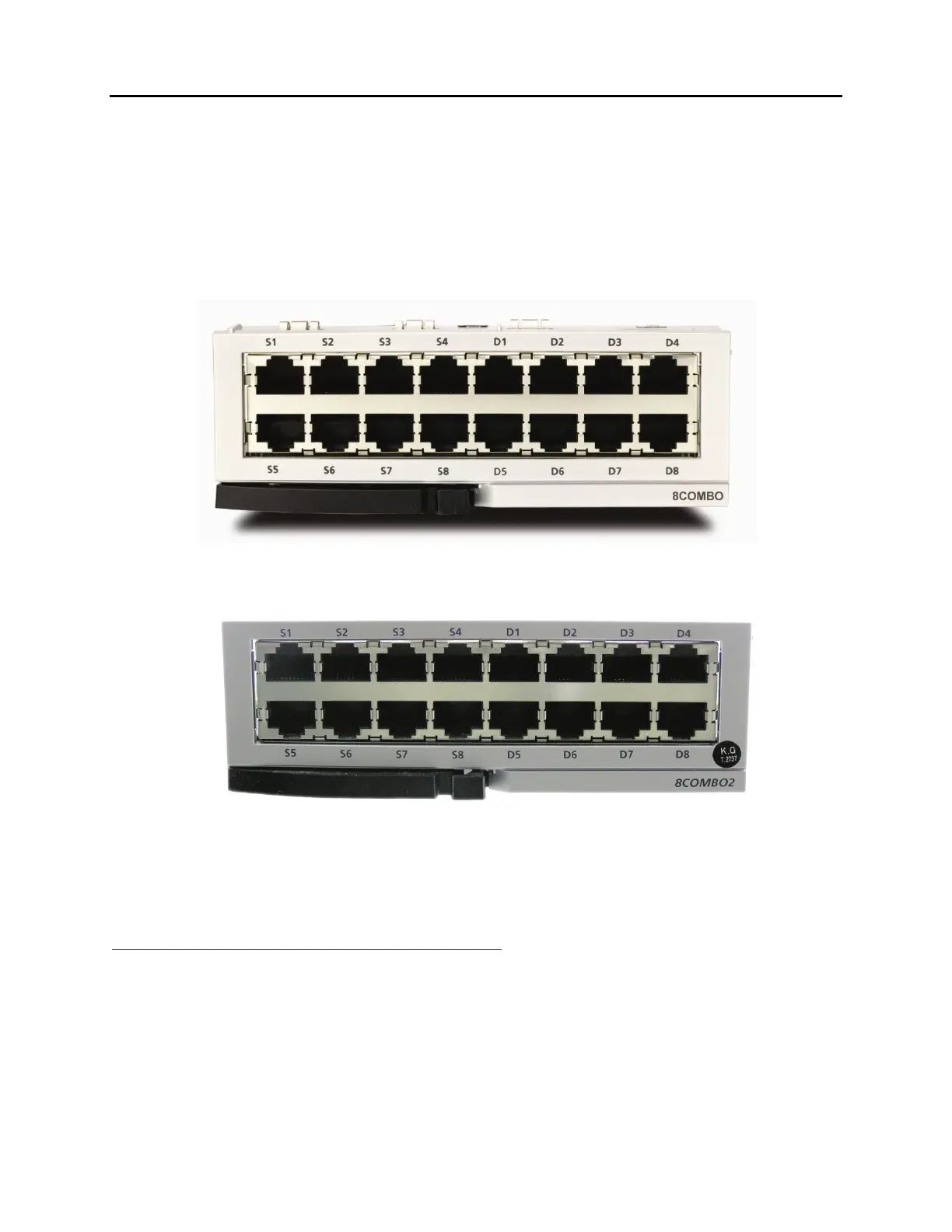

FRONT VIEW OF 8COMBO/8COMBO2
The front view of the 8COMBO and 8COMBO2 boards are shown in the picture below.
Figure 3.25 Front View of the 8COMBO
Figure 3.26 Front View of the 8COMBO2
• Ports S1~S8 are for analog stations only.
• Ports D1~D8 are for Samsung Digital Stations only.
See Sections 7.1.2 and 7.1.3 for port Pinout/wiring.
