OfficeServ 7200-S INSTALLATION
TECHNICAL MANUAL PART 3 MAY 2010
3.2

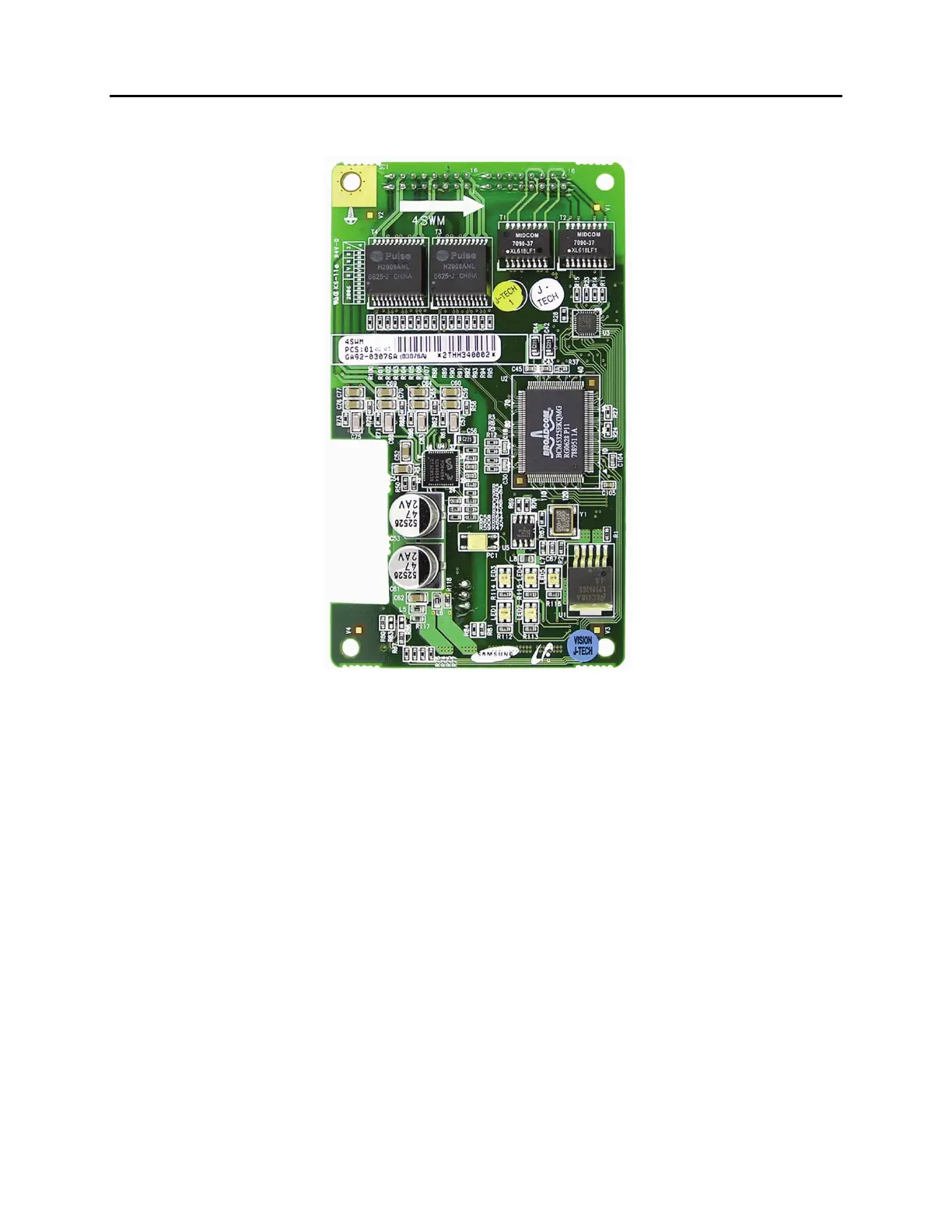

The 4SWM is shown in the figure below:
Figure 3.45 4SWM
NOTE: When installed on the MP20S, PoE is not available from system power supply. AC
adapter or external PoE switch is required.
