OfficeServ 7200-S INSTALLATION
TECHNICAL MANUAL PART 5 MAY 2010
5.9

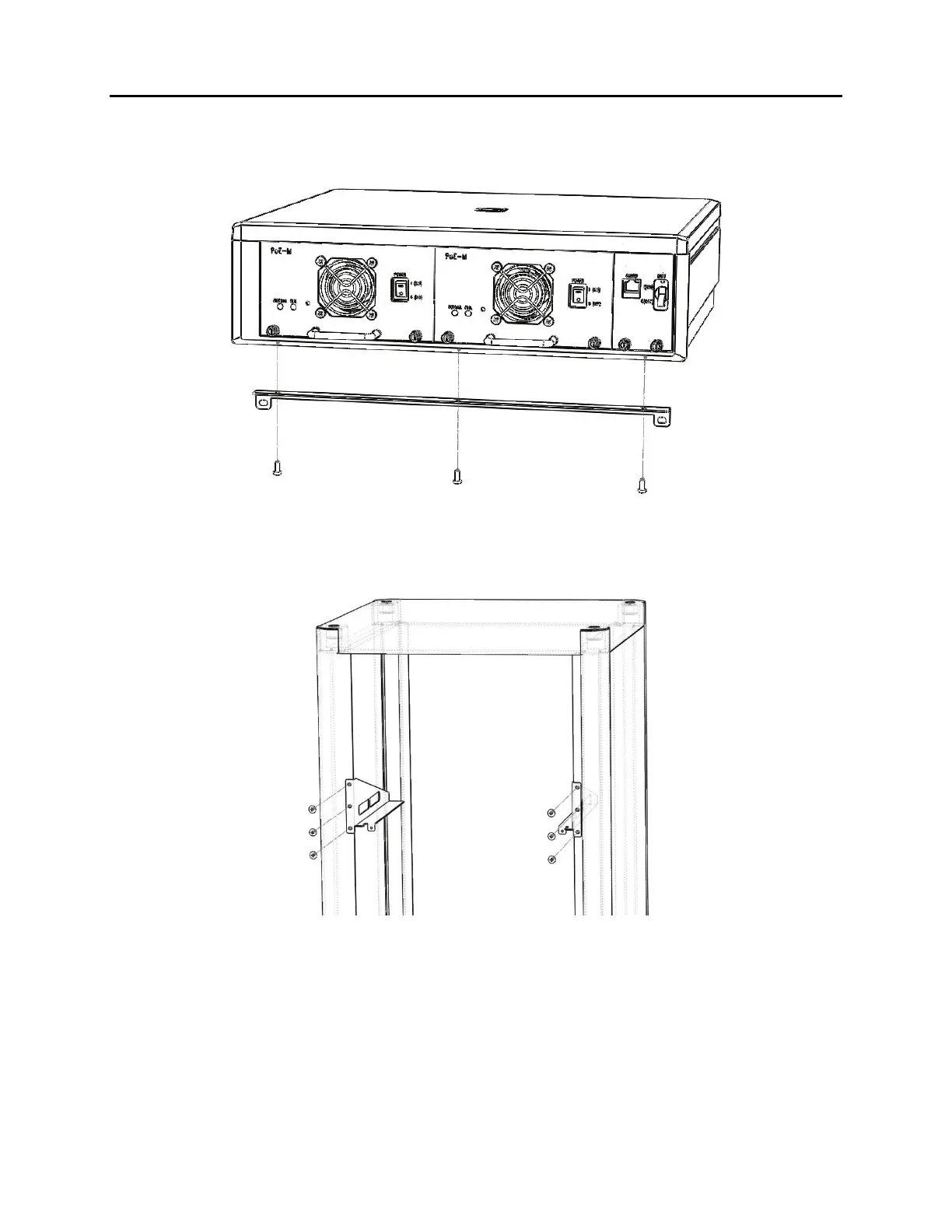

1) Attach the cross bar bracket bracket to the bottom of OfficeServ 7150 PoE, and tighten
with three screws.
Figure 5.6 OS 7150 Installation in a Rack (1)
2) Attach the rack mount brackets to both sides of the rack, and tighten with six screws.
Figure 5.7 OS 7150 Installation in a Rack (2)
