4th Edition of TEMI880 IM : Jan. 29. 2007 Page 13 / 119

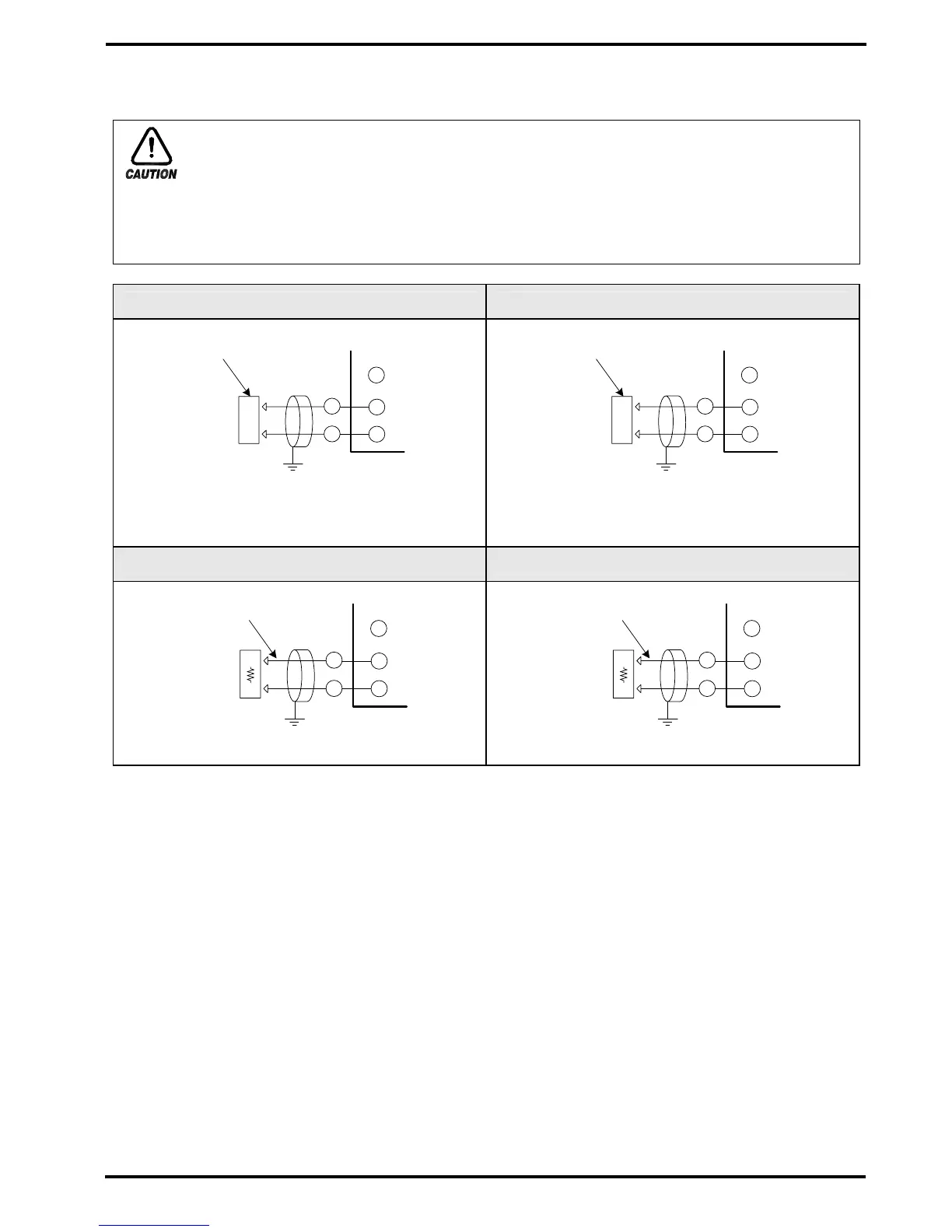

1.4.2.6 Control Output and Transmission Output Wiring
▶ Before starting control output and transmission output wiring, be sure to turn off
the system, or else you will get an electrical shock.
▶ When connecting, do not mix up the input polarity, Connecting with the wrong polarity
can cause serious accidents.
▶ For input wiring, use a shielded cable. Ground the shield at one point.
Temp. Control Output Wiring(SSR/4~20mA) Humi. Control Output Wiring(SSR/4~20mA)
SSR : 12V DC min, 600Ω min
SCR : 4~20mA DC min, 600Ω max
SSR : 12V DC min, 600Ω min
SCR : 4~20mA DC min, 600Ω max
Temp. Transmission Output Wiring(4~20mA) Humi. Transmission Output Wiring(4~20mA)
CAUTION
CONTROL
VALVE
I/O1 BOARD
SHIELD
Class 3 Ground
ACTUATOR
AOUT1+
AOUT1-
+
-
CONTROL
VALVE
I/O1 BOARD
SHIELD
Class 3 Ground
ACTUATOR
AOUT2+
AOUT2-
+
-
Receptor
(Recorder etc.)
4~20 mA DC
600Ω max
I/O1 BOARD
SHIELD
Class 3 Ground
RET1+
RET1-
+
-
Receptor
(Recorder etc.)
4~20 mA DC
600Ω max
I/O1 BOARD
SHIELD
Class 3 Ground
RET2+
RET2-
+
-
