2.6.2 Program Run Screen

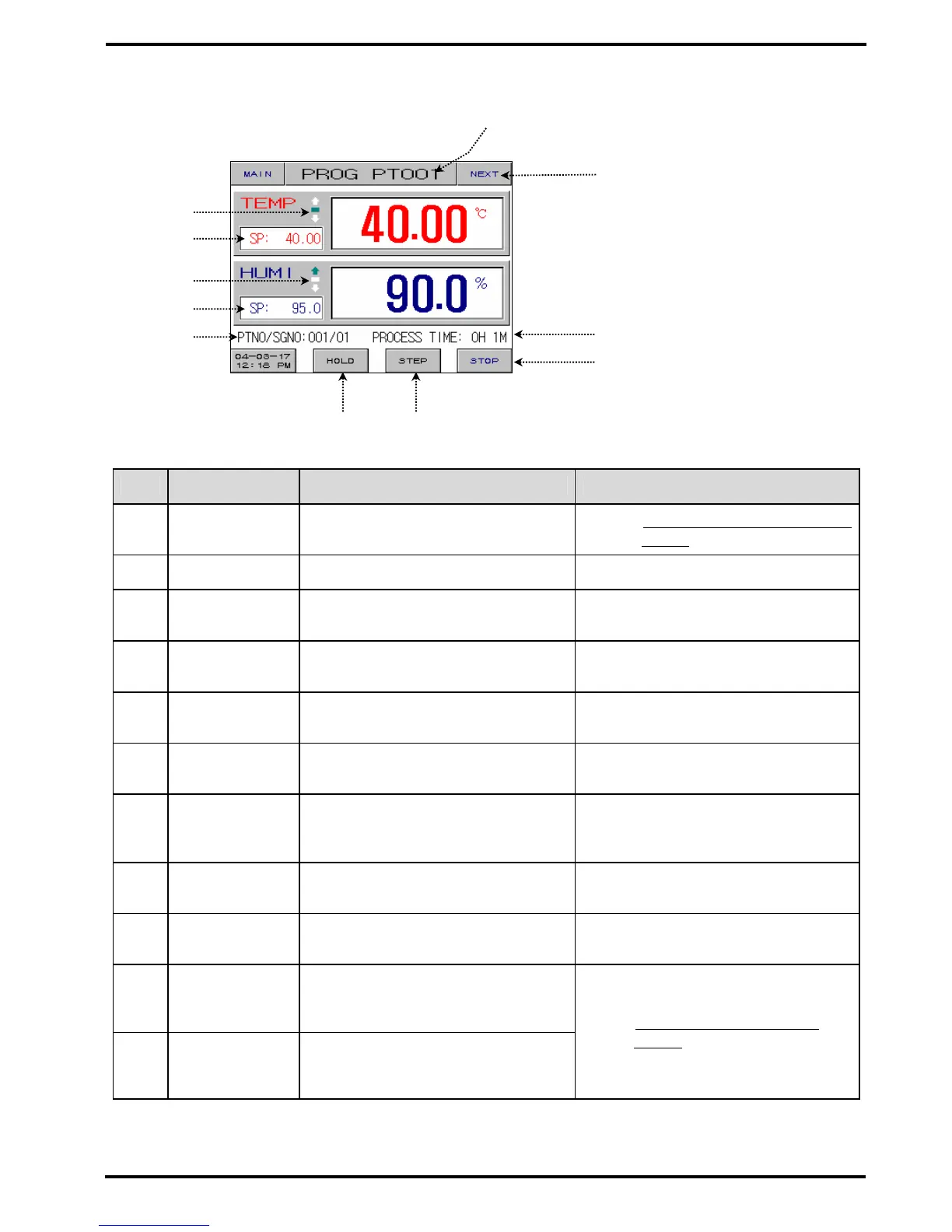

Figure 2-7. Program Run – First Screen
No. Contents Description Additional Description
○
1
Pattern Name
Display pattern name of the present
running.
▶ See 2.10.6 Pattern Name Setting
Screen
○
2
Next Button Transfer at Figure 2-8.
○
3
Temp. SP Value Display present Temp. SP(Set Point).
○
4
Humi. SP Value Display present Humi. SP(Set Point).
○
5
Pattern/Segment Display pattern and segment number.
○
6
Running Time Display total running time.
○
7
Hold Button Hold on or off.
▶ Hold button’s color transferred to
red at HOLD ON.
○
8
Step Button
Present segment stop running, Move
next segment.
○
9
Stop Button Display confirmable box.
○
10
Temp. Status
Display Lamp
Display present Temp. status.
○
11
Humi. Status
Display Lamp
Display present Humi. status.
▶ See 2.12.5 DO CONFIG Setting
Screen
○
3
○
4
○
9
○
2
○
7
○
8
○
1
○
10
○
11
○
5
○
6

Samwon Tech TEMI850 Specifications

General

Brand	Samwon Tech
Model	TEMI850
Category	Temperature Controller
Language	English
