2.12.1 Input and Input Compensation Setting Screen
2.12.1.1 Temperature Input Setting

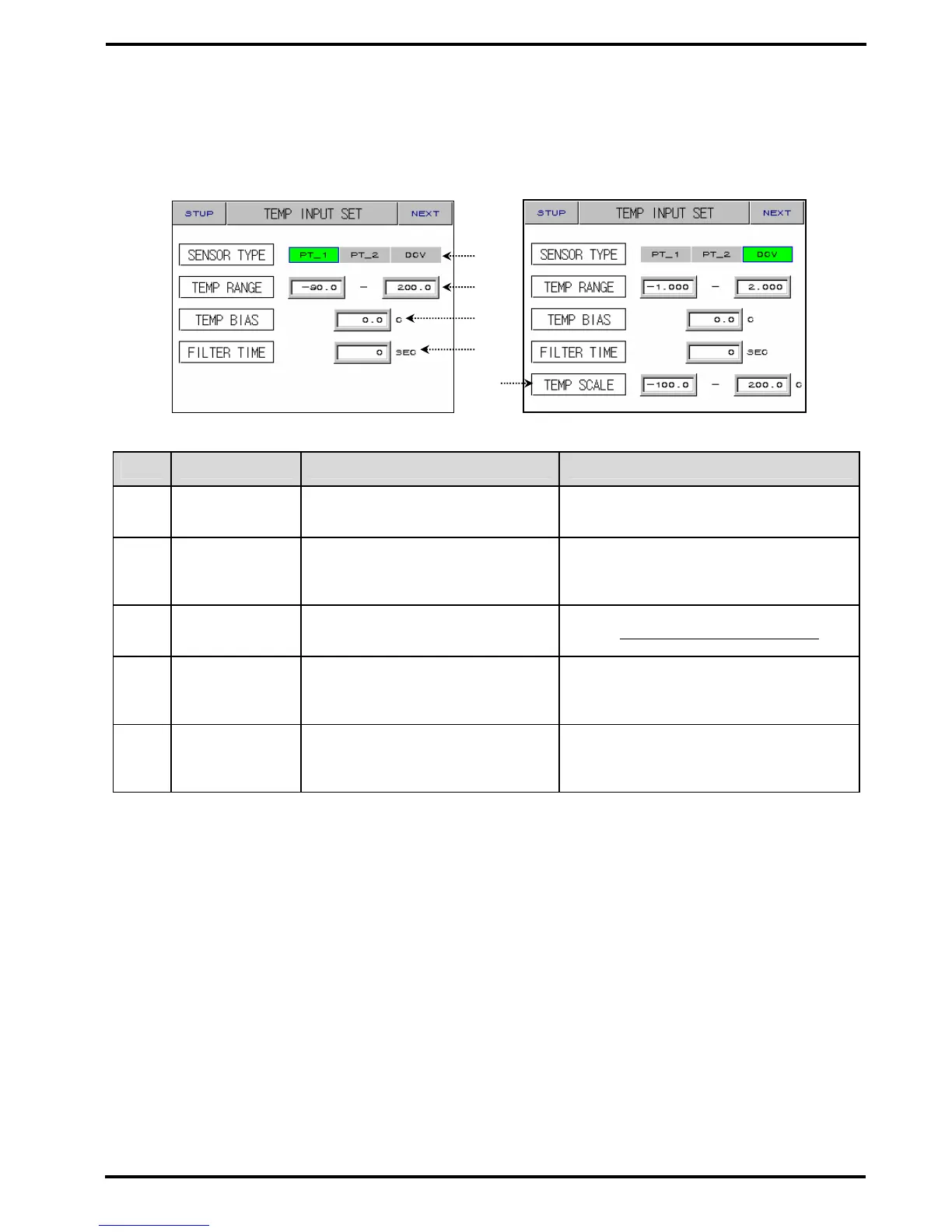

Figure 2-40. Temp. Input Setting – PT_1 Figure 2-41. Temp. Input Setting - DCV
No. Contents Description Additional Description
○
1
SENSOR TYPE Select sensor type.
○
2
TEMP RANGE Set temperature range.
▶ PT_1 : -90.00 ~ 200.00 ℃
▶ PT_2 : -100.0 ~ 300.0 ℃
▶ DCV : -1.000 ~ 2.000 V ℃
○
3
TEMP BIAS Set temperature bias. ▶ See 2.12.1.4 Sensor BIAS Setting
○
4
FILTER TIME Set filter time.
○
5
TEMP SCALE
A case where sensor type is
“DCV”, set temperature scale.
☞ Sensor type can not change on running.
○
