2.12.3 ON/OFF Signal and Inner Signal Setting Screen
2.12.3.1 ON/OFF Signal
▶ Set 4 ON/OFF Signal.

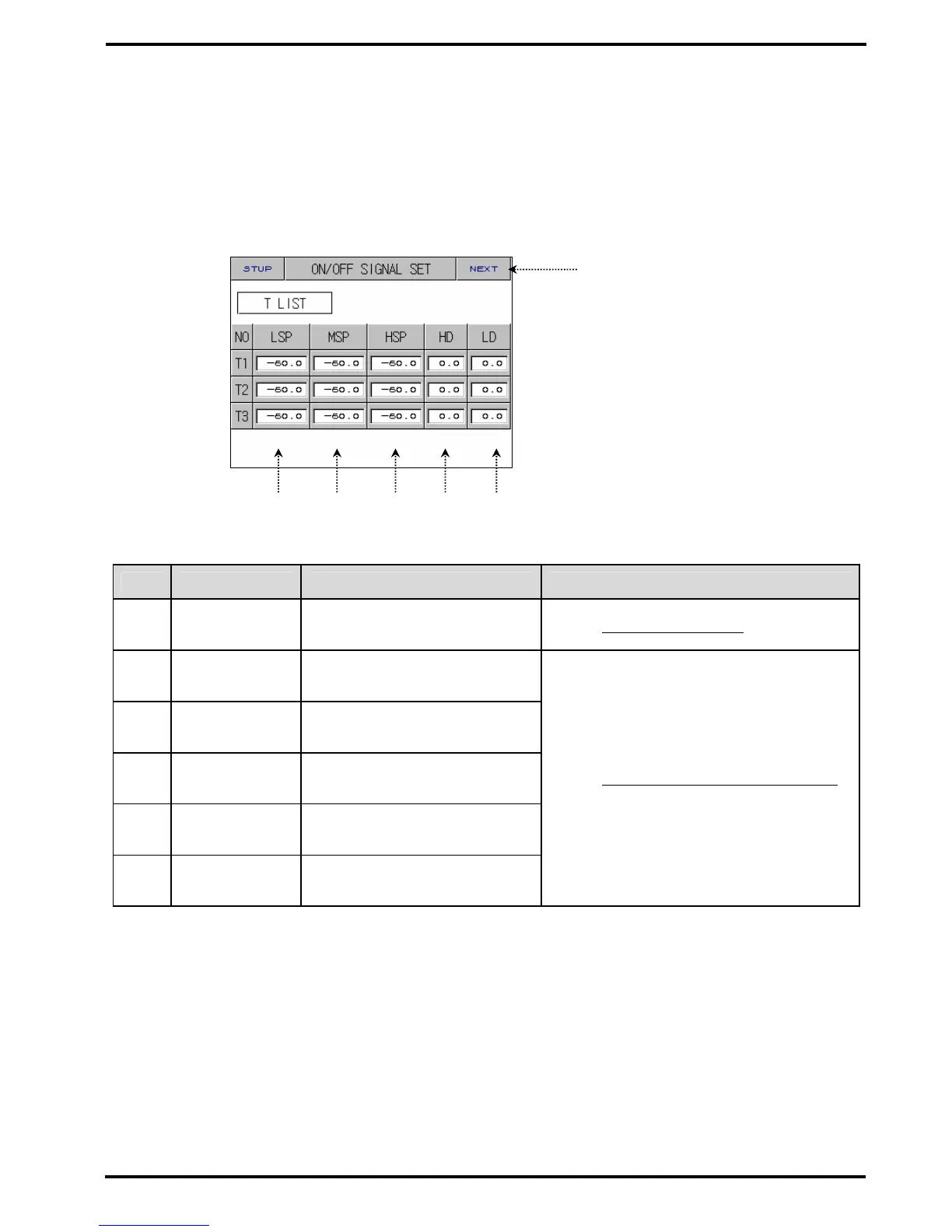

Figure 2-50. ON/OFF Signal Setting Screen
No. Contents Description Additional Description
○
1
NEXT BUTTON Move next page. ▶ See 2.12.3.2 Inner Signal
○
2
LOW SP Set low SP on ON/OFF.
○
3
MIDDLE SP Set middle SP on ON/OFF.
○
4
HIGH SP Set high SP on ON/OFF.
○
5
HIGH
DIFFERENCE
Deviation value for high zone.
○
6
LOW
DIFFERENCE
Deviation value for low zone.
▶ See 2.12.5 DO CONFIG Setting Screen
○
1
○
4
○
3
○
2
○
6
○
5
