4th Edition of TEMI880 IM : Jan. 29. 2007 Page 59 / 119
2.12.2.2 Transmission Output Setting

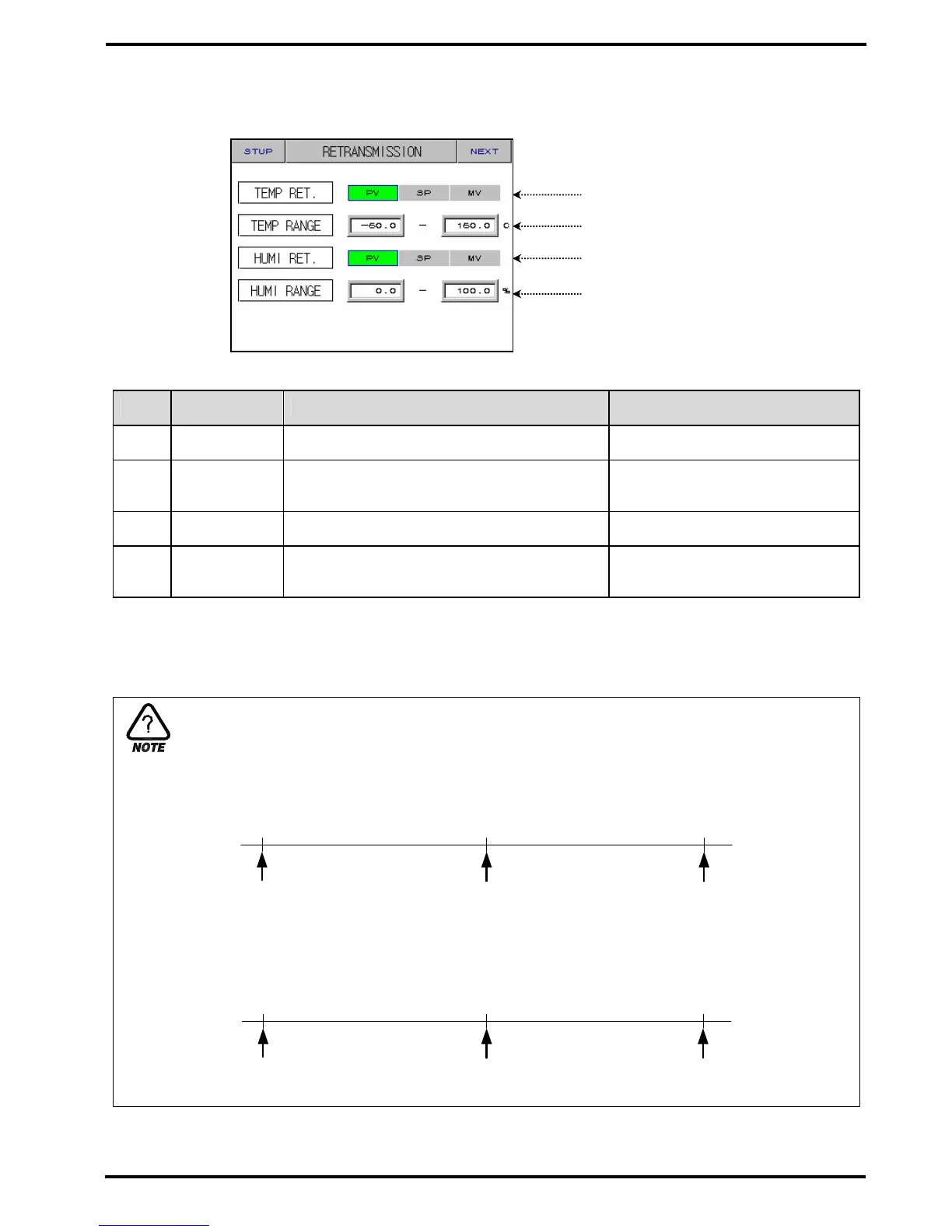

Figure 2-49. Transmission Output Setting
No. Contents Description Additional Description
○
1
TEMP RET. Select type of the temperature transmission.
○
2
TEMP RET.
RANGE
Set range of the temperature transmission.
▶ Not display, if temperature
transmission type is “MV”.
○
3
HUMI RET. Select type of the humidity transmission.
○
4
HUMI RET.
RANGE
Set range of the humidity transmission.
▶ Not display, if humidity
transmission type is “MV”.
☞ Transmission output is 4~20mA.
If you want to use transmission output into 1~5V, Use 250Ω RN-TYPE resistance (accuracy resistance).
○
1 In this case transmission output type is “PV” or “SP”
○
2 In this case transmission output type is “MV”
○
1
○
2
○
3
○
4
Output is affected by transmission output
4.0mA 12.0mA 20.0mA
RET RANGE LOW (RL + RH) / 2 RET RANGE HIGH
0.0% 50.0% 100.0%
4.0mA 12.0mA 20.0mA
