2.6 Operation Screen
▶ At the running TEMI880, Display status and information.
2.6.1 Program Stop Screen

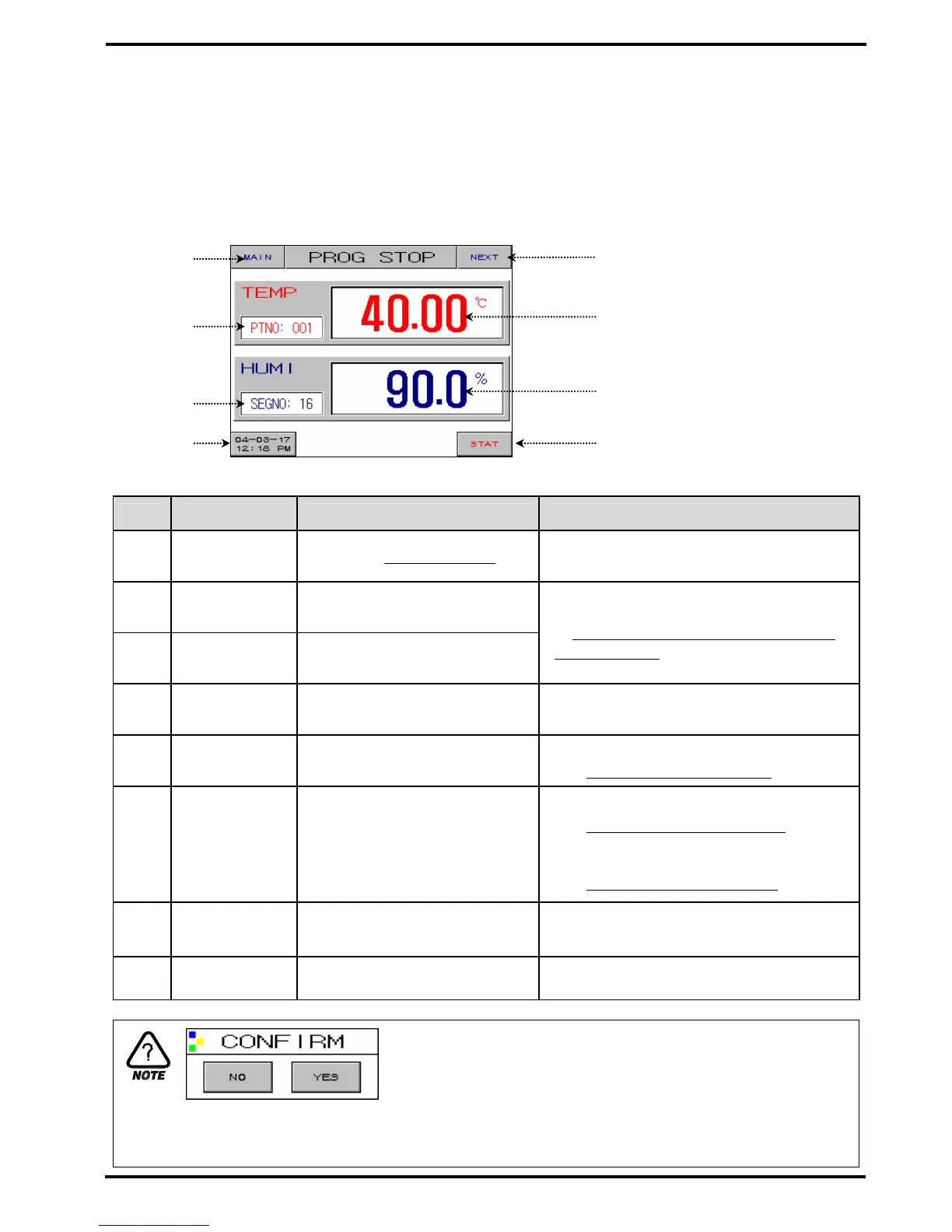

Figure 2-3. PROG STOP Screen
No. Contents Description Additional Description
○
1
Main Button Transfer to 2.5 Main Screen
.
○
2
Present Temp. Display present temperature.
○
3
Present Humi. Display present humidity.
▶ Proper sensor type is in need of setting
at 2.12.1 Input and Input Compensation
Setting Screen.
○
4
Pattern No. Display running pattern number.
▶ Push button and set pattern number
for operating.
○
5
Segment
Display programmed segment
count of the present pattern.
▶ Program pattern input
at 2.10.1 Edit Pattern Screen.
○
6
Time Button
Display present time.
Time button is pushed, turn off
LCD screen. Even if turn off the
light automatically, controller
still working and turn on the light
if user touch any point.
▶ Automatic turn off setting time
at 2.7 Operation Setting Screen
.
☞ Backlight time is setting 10 minutes.
▶ Present time is setting
at 2.8 Reserve Setting Screen.
○
7
Start Button
Display confirmable box for
program running.
▶ See (Figure2-4).
○
8
Next Button Transfer at Figure 2-9
Confirmable Box
☞ At this CONFIRM window, you can confirm if you really want
doing job or not.
예) PROG(or FIX) STOP ↔ PROG(or FIX) RUN
HOLD, STEP, TUNING OFF ↔ HOLD, STEP, TUNING ON
pattern copy, pattern delete etc.
○
1
○
2
○
3
○
4
○
5
○
6
○
7
○
8
