SAMWONTECH
4th Edition of TEMI880 IM : Jan. 29. 2007 Page 72 / 119
2.12.6 Alarm and DI Error Name Setting Screen
2.12.6.1 Alarm Setting

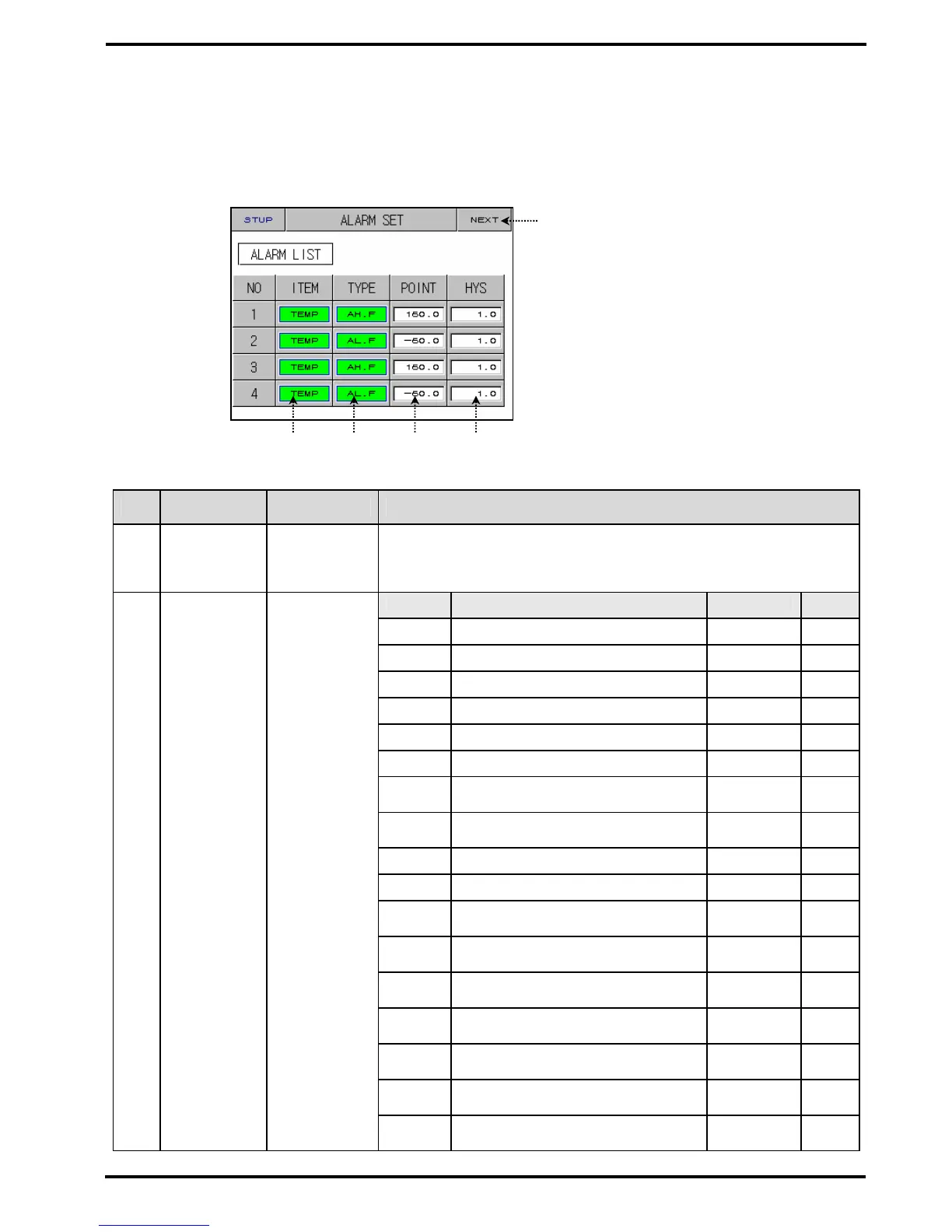

Figure 2-62. Alarm Setting Screen
No. Contents Description Additional Description
1
ITEM
SELECT
Select alarm
mode.
Display Alarm Type Direction Wait
AH.F
Absolute-Value Upper-Limit Alarm
Forward No
AL.F
Absolute-Value Lower-Limit Alarm
Forward No
DH.F
Upper-Limit Alarm of Deviation
Forward No
DL.F
Lower-Limit Alarm of Deviation
Forward No
DH.R
Upper-Limit Alarm of Deviation
Reverse No
DL.R
Lower-Limit Alarm of Deviation
Reverse No
DO.F
Upper-and-Lower-Limit Alarm of
Deviation
Forward No
DI.F
Upper-and-Lower-Limit Range Alarm
of Deviation
Forward No
AH.R
Absolute-Value Upper Limit Alarm
Reverse No
AL.R
Absolute-Value Lower Limit Alarm
Reverse No
AH.FS
Absolute-Value Upper-Limit Alarm
with Standby
Forward Yes
AL.FS
Absolute-Value Lower-Limit Alarm
with Standby
Forward Yes
DH.FS
Upper-Limit Alarm of Deviation with
Standby
Forward Yes
DL.FS
Lower-Limit Alarm of Deviation with
Standby
Forward Yes
DH.FS
Upper-Limit Alarm of Deviation with
Standby
Reverse Yes
DL.RS
Lower-Limit Alarm of Deviation with
Standby
Reverse Yes
2
ALARM TYPE
SELECT
Select alarm
type.
DO.FS
Upper-and-Lower-Limit Alarm of
Deviation with Standby
Forward Yes
3
2
4
5
1
