4th Edition of TEMI880 IM : Jan. 29. 2007 Page 71 / 119
▶ INPUT = TEMP(PT_1), RANGE = -50.00℃ ~ 150.00℃
▶ UP, DOWN SIGANL RANGE → [EUS 0% ~ EUS 10% ] = [0.00 ℃ ~ 20.00 ℃ ]
Setting UP, SOAK, DOWN Relay Action
▶ OPER. MODE
→ PROG RUN
▶ TEMP UP
→ 0.2 ℃
▶ TEMP SOAK
→ 2 MIN
▶ TEMP DOWN
→ 0.2 ℃
▶ Use Fix Mode
▶ Slop Operation
☞ At FIX Running
→
SOAK Signal :
OFF
→ Running Status
Lamp : ON
▶ OPER. MODE
→ FIX RUN
▶ TEMP UP
→ 0.2 ℃
▶ TEMP SOAK
→ 2 MIN
▶ TEMP DOWN
→ 0.2 ℃
▶ Not use
▶ Fix Mode Slop
▶ Operation
☞ At FIX Running
→
SOAK Signal :
OFF
→ Running Status
Lamp : ON

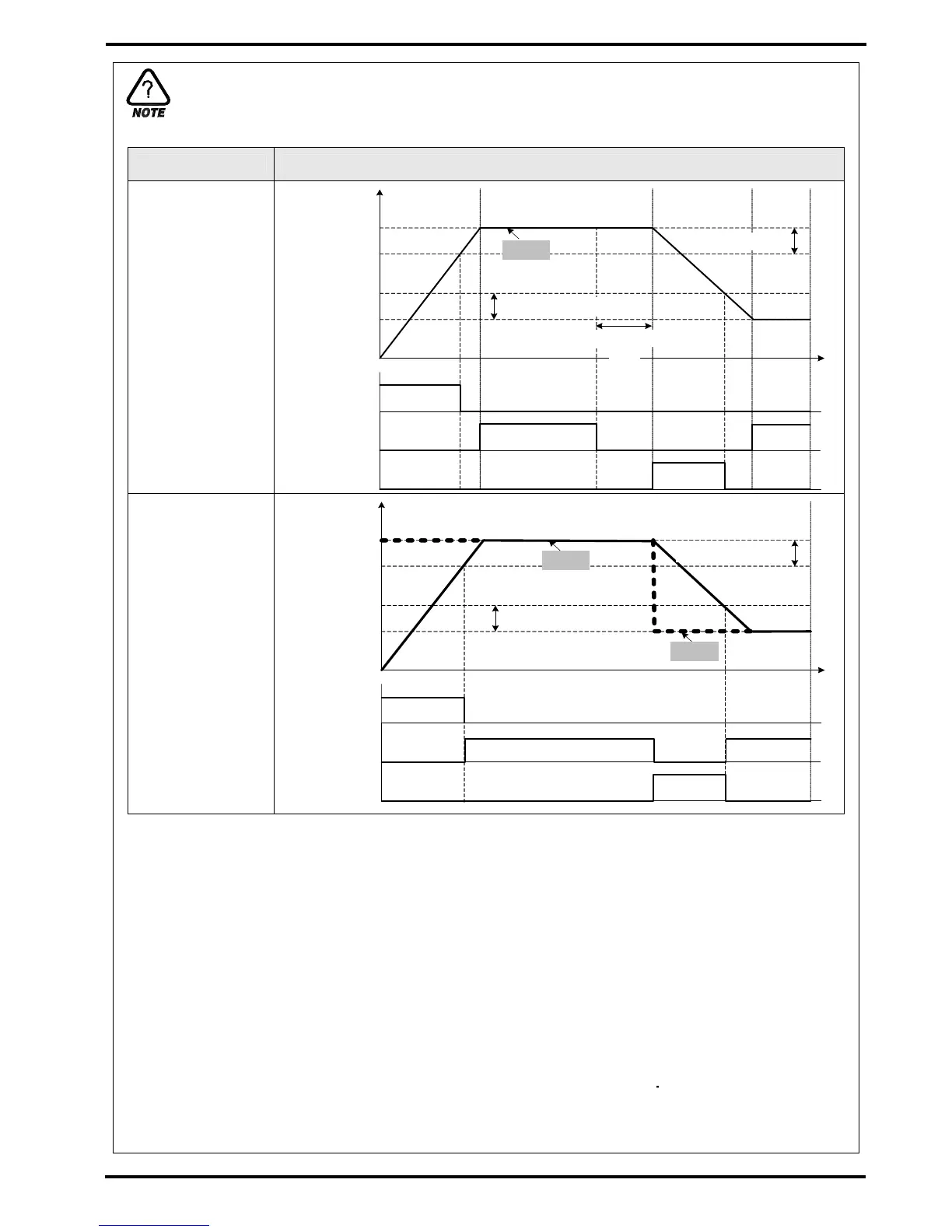

UP, SOAK, DOWN Signal
30.2℃
UP Setting Temp.
ON
DOWN Setting Temp.
SOAK Setting Time
2MIN
30.0℃
50.0℃
49.8℃
TEMP SOAK
RELAY OUT
TEMP DOWN
RELAY OUT
ON
ON
ON
UP SOAK DOWN SOAK
SP
30.2℃
UP Setting Temp.
ON
TEMP UP
RELAY OUT
DOWN Setting Temp.
30.0℃
50.0℃
49.8℃
TEMP SOAK
LAMP OUT
TEMP DOWN
RELAY OUT
ON
ON
ON
PV
SP
