4th Edition of TEMI880 IM : Jan. 29. 2007 Page 18 / 119
2. User Manual
2.1 Setup Button
▶ TEMI880 is easy to install & modify by touch screen as well as the map type menu. User enables
to grasp the operation of control system with easy through graph on vivid LCD screen.
2.1.1 Initial setup button
▶ Display of the general setting button.

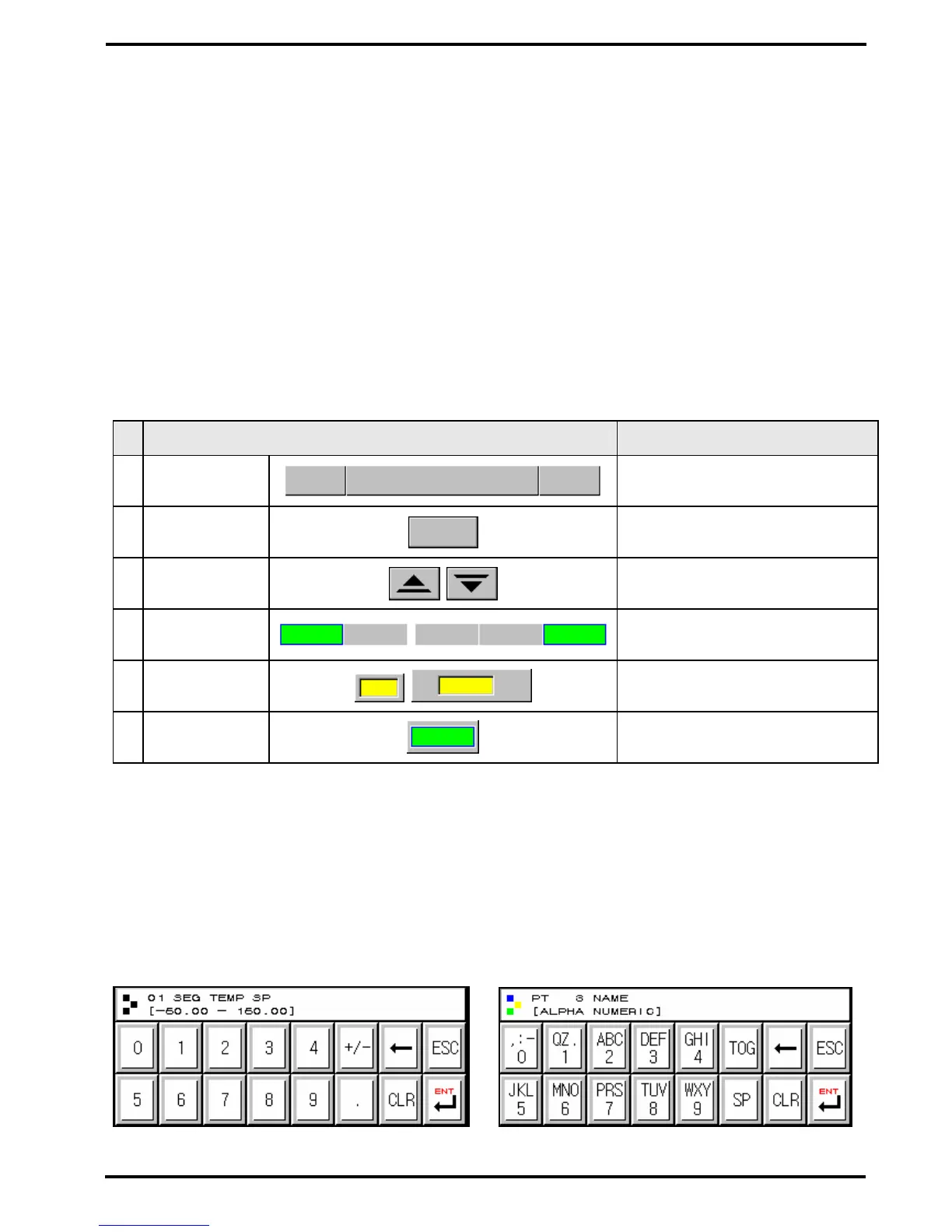

Table 1-1. General Setting Button
Button Function
1 Main
Change the page.
2
General
execute button
It is used general execution or
selection.
3
Page Up/ Down
button
It is used page conversion on the
same screen.
4
Setting value
select button
It is used setting value selection.
5
Setting value
input button
Convert to setting value input
screen.
6
Setting value
convert button
It is used setting value conversion.
2.1.2 Input setting value
▶ If user push setting value input button in the Table 1-1(General Setting Button), User can input
data value.
▶ If user input data which is invalid, it makes 3 times buzzer, also there is “-LIMIT ERR” message
on the setting value screen.
○
1 Input key for the Digit setting
○
2 Input key for the Pattern & DI Error name setting
