2.12.4 PID Setting Screen
2.12.4.1 PID Range Setting
▶ It is composed of 6 Temp./Humi. PID and 3 Temp. PID.

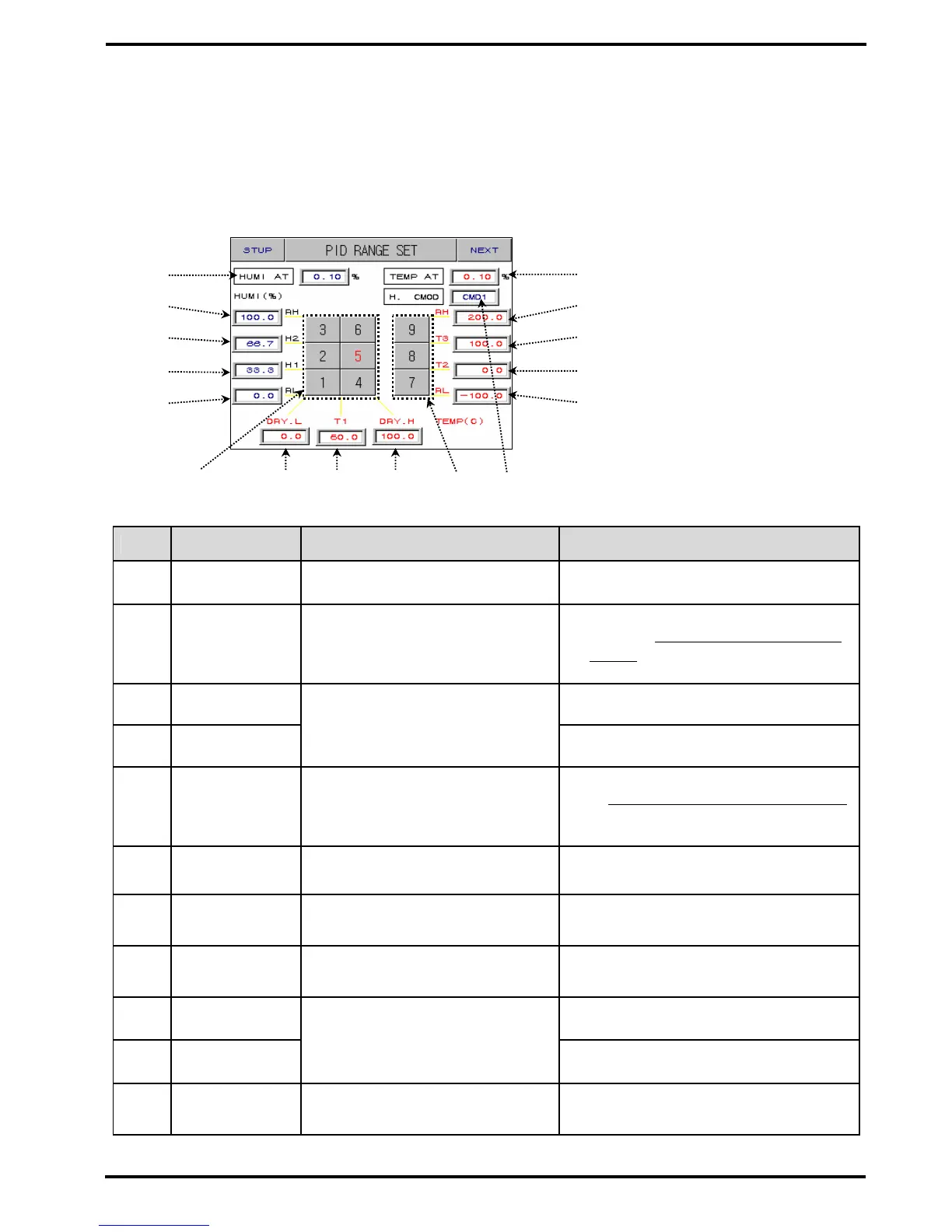

Figure 2-52. PID Range Setting Screen
No. Contents Description Additional Description
○
1
TEMP AUTO
TUNING POINT
Set temperature auto tuning point.
○
2
TEMP RANGE
HIGH
Set temperature range high.
▶ A case TEMP.RH(TEMP RANGE
HIGH) of 2.12.1.1 Temperature Input
Setting
is changed, it is changed.
☞ Not modify.
○
3
TEMP REFER_
POINT3
▶ ( TEMP.RH – TEMP.RL ) X 2 / 3
○
4
TEMP REFER_
POINT2
Set temperature reference point2
and point3.
▶ ( TEMP.RH – TEMP.RL ) X 1 / 3
○
5
TEMP RANGE
LOW.
Set temperature range low.
▶ A case TEMP.RL(TEMP RANGE LOW)
▶ of 2.12.1.1 Temperature Input Setting
▶ is changed, it is changed.
☞ Not modify.
○
6
TEMP ONLY PID
GROUP
PID group for control temperature.
▶ Move PID group setting page.
○
7
HUMI AUTO
TUNING POINT
Set humidity auto tuning point.
○
8
HUMI RANGE
HIGH
Set humidity range high.
○
9
HUMI REFER_
POINT2
▶ ( HUMI.RH – HUMI.RL ) X 2 / 3
○
10
HUMI REFER_
POINT1
Set humidity reference point.
▶ ( HUMI.RH – HUMI.RL ) X 1 / 3
○
11
HUMI RANGE
LOW.
Set humidity range low.
○
1
○
2
○
3
○
4
○
5
○
14
○
13
○
12
○
7
○
8
○
9
○
10
○
11
○
15
○
6
○
16
