▶ Inner Signal Action
Setting Inner Signal Action
▶ INPUT = 0.0 ~ 100.0
→ EUS 0.5% = 0.5
▶ OPER. MODE = PROG
▶ ITEM = HUMI
▶ TYPE = PV
▶ RANGE LOW = 30.0%
▶ RANGE HIGH = 50.0%
▶ DIRECT = IN BAND
▶ DELAY TIME = 00.00
▶ INPUT = 0.0 ~ 100.0
→ EUS 0.5% = 0.5
▶ OPER. MODE = PROG
▶ ITEM = HUMI
▶ TYPE = PV
▶ RANGE LOW = 30.0%
▶ RANGE HIGH = 50.0%
▶ DIRECT = OUT BAND
▶ DELAY TIME = 00.00
▶ INPUT = 0.0 ~ 100.0
▶ OPER. MODE = PROG
▶ ITEM = HUMI
▶ TYPE = SP
▶ RANGE LOW = 30.0%
▶ RANGE HIGH = 50.0%
▶ DIRECT = IN BAND
▶ DELAY TIME = 00.10
▶ INPUT = 0.0 ~ 100.0
▶ OPER. MODE = PROG
▶ ITEM = HUMI
▶ TYPE = TSP
▶ RANGE LOW = 30.0%
▶ RANGE HIGH = 50.0%
▶ DIRECT = OUT BAND
▶ DELAY TIME = 00.00

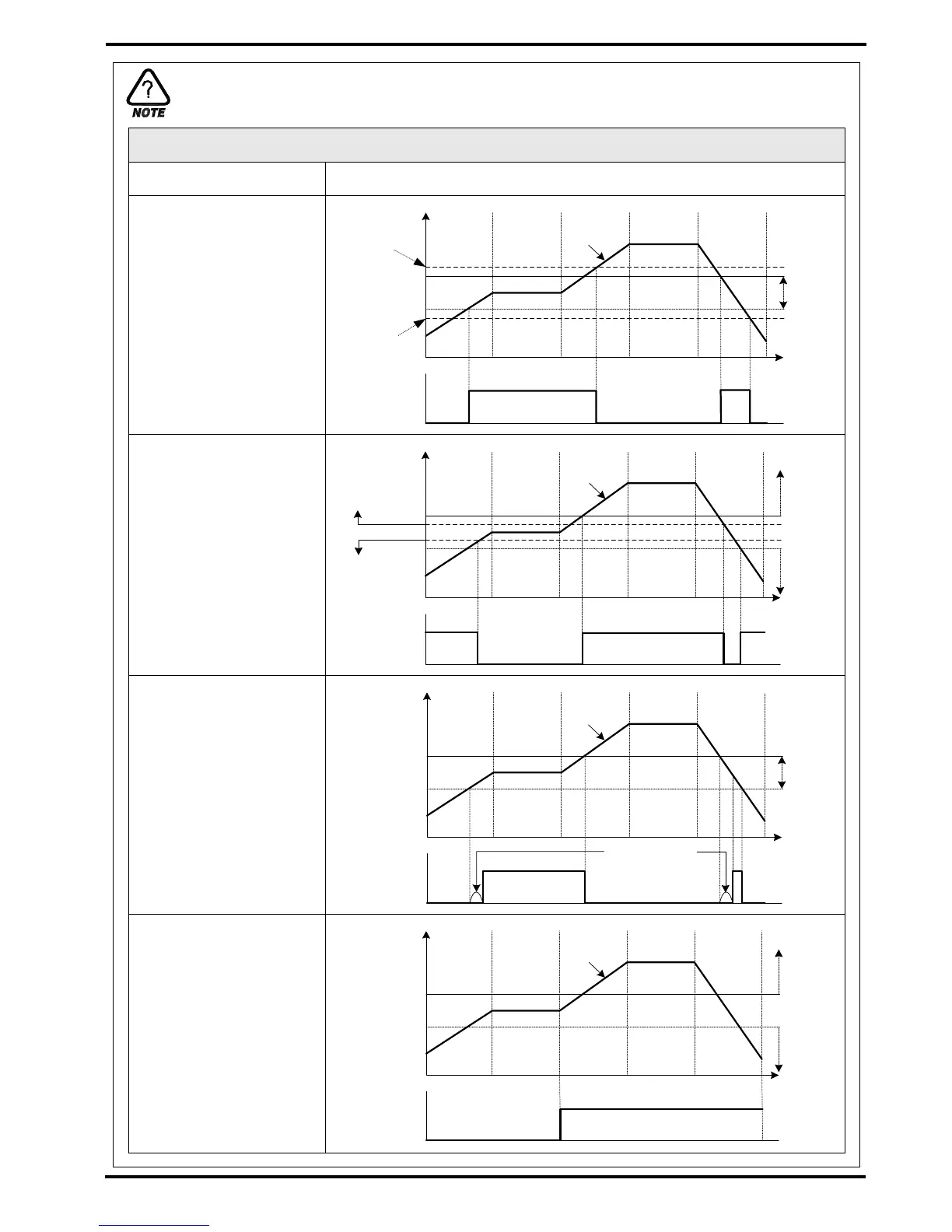

Inner Signal Action
50.0
SEG1 SEG2 SEG3 SEG4 SEG5
30.0
ON
OFF
IS
HYS
50.5
HYS
29.5
PV
INB
HYS
49.5
HYS
30.5
50.0
SEG1 SEG2 SEG3 SEG4 SEG5
30.0
ON
OFF
IS
PV
OUTB
OUTB
50.0
SEG1 SEG2 SEG3 SEG4 SEG5
30.0
ON
OFF
IS
SP
INB
DELAY TIME
50.0
SEG1 SEG2 SEG3 SEG4 SEG5
30.0
ON
OFF
IS
SP
OUTB
OUTB
