Samwon Tech TEMI850 User Manual

SAMWONTECH
4th Edition of TEMI880 IM : Jan. 29. 2007 Page 62 / 119
2.12.3.2 Inner Signal
▶ Set 8 Inner Signal.

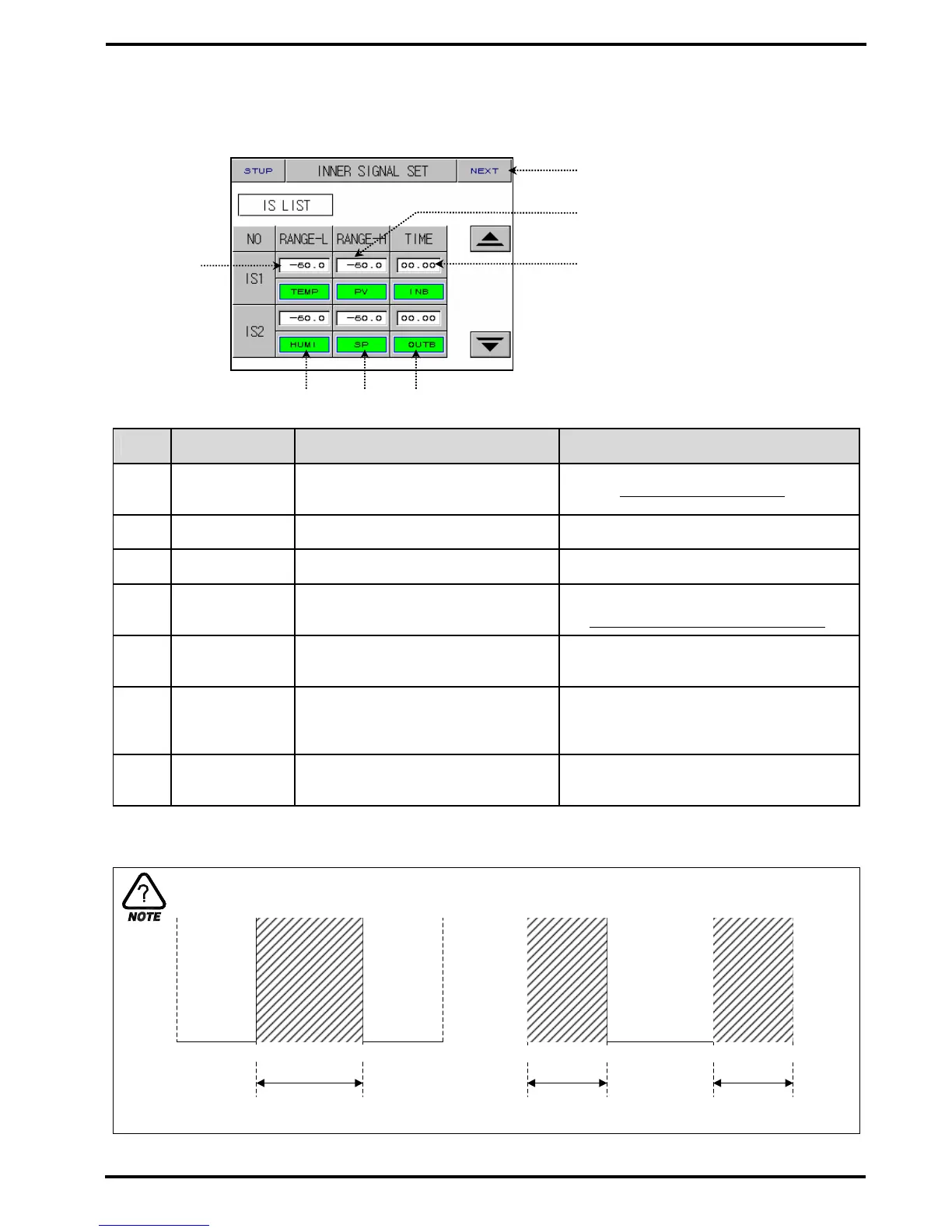

Figure 2-51. Inner Signal Setting Screen
No. Contents Description Additional Description
○
1
NEXT BUTTON
Move ON/OFF signal setting
screen.
▶ See 2.12.3.1 ON/OFF Signal
○
2
RANGE LOW Set low value of the inner signal.
○
3
RANGE HIGH Set high value of the inner signal.
○
4
DELAY TIME Set delay time of the inner signal.
▶ See output time of the 1REF, 2REF of
▶ 2.12.5 DO CONFIG Setting Screen
○
5
ITEM BUTTON Select item of the inner signal.
○
6
TYPE BUTTON Select type of the inner signal.
▶ SP : Present setting value
▶ PV : Present indication value
▶ TSP : Target setting value
○
7
BAND BUTTON Select BAND of the inner signal.
☞ If SLOPE is setting up, “TSP” is the same action with “TSP” of the program control at Fix running.
But if SLOPE is not setting up, “TSP” is the same action with “SP”.
○
1
○
4
○
3
○
2
○
6
○
5
○
7
Action Direction of the Inner Signal
RL(℃,%) RNG.LOW RNG.HIGH RH((℃,%)
RL(℃,%) RNG.LOW RNG.HIGH RH((℃,%)
IS action range
[
BAND = INB
]
[ BAND = OUTB ]
IS action range
IS action range
