Samwon Tech TEMI850 User Manual

SAMWONTECH
4th Edition of TEMI880 IM : Jan. 29. 2007 Page 34 / 119
2.9 Graph Setting Screen
▶ This is screen display graph for the input pattern at 2.10.1 Edit Pattern Screen
.

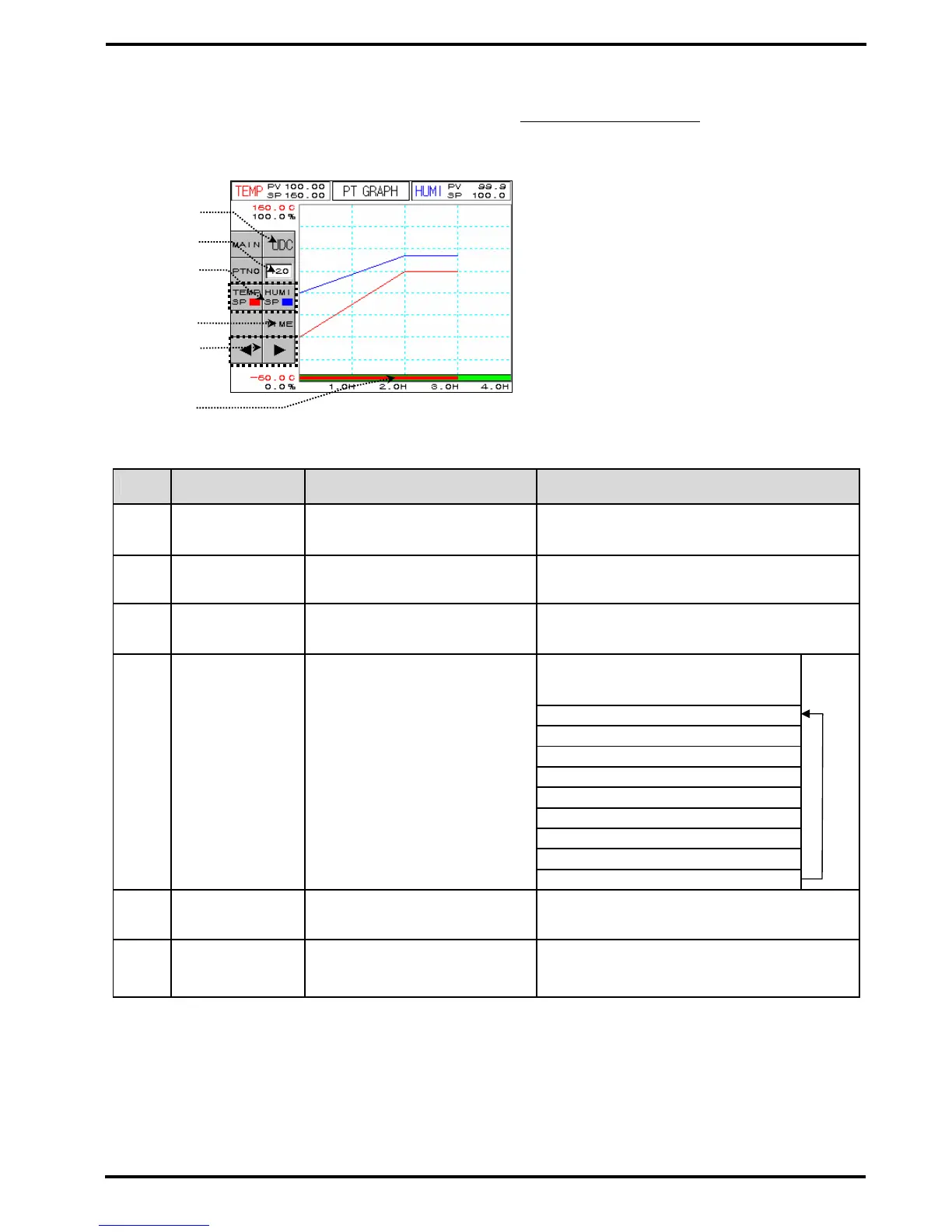

Figure 2-19. Graph Setting Screen
No. Contents Description Additional Description
○
1
UDC Button Move UDC Setting page. ▶ At a using UDC option.
○
2
Pattern No. Set pattern number.
○
3
Select Graph
Select Temp. SP or Humi. SP
graph.
▶ Temp. SP : Display red.
▶ Humi. SP : Display black.
▶ Push time button
=> change time scale.
0H 1H 2H 3H 4H
↓
0H 3H 6H 9H 12H
↓
0H 6H 12H 18H 24H
↓
0H 12H 24H 36H 48H
↓
○
4
Time Button Change time scale.
0H 24H 48H 72H 96H
○
5
Previous/Next
Button
Move previous/next page.
○
6
Time Graph Display processed time.
▶ Display processed time with red
color.
○
5
○
2
○
6
○
3
○
1
○
4
