2.12.2 Control Output and Transmission Setting Screen
2.12.2.1 Control Output Setting

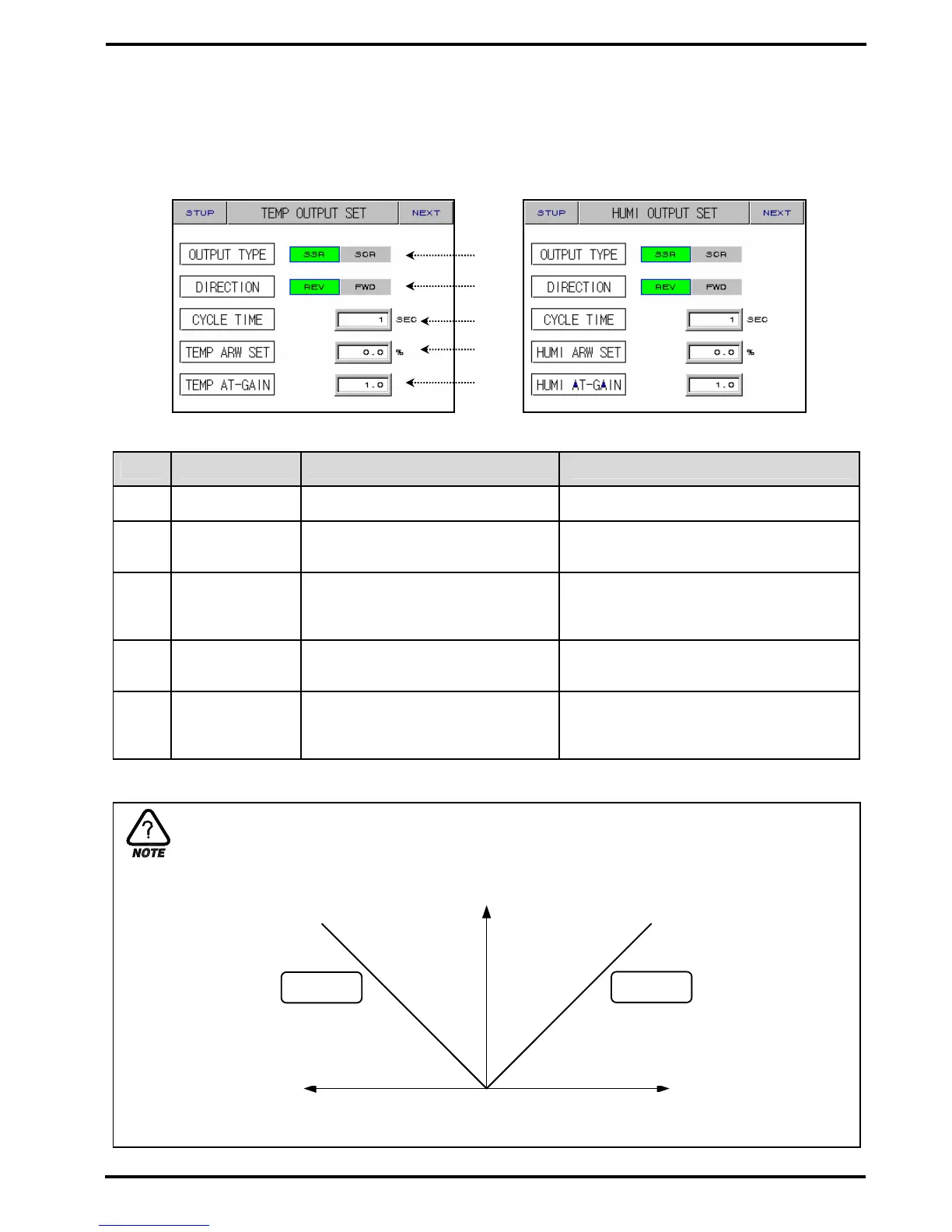

Figure 2-47. Temp. Control Output Setting Figure 2-48. Humi. Control Output Setting
No. Contents Description Additional Description
○
1
OUTPUT TYPE Set control output type.
○
2
DIRECTION
Select of PID direction
(Forward/Reverse)
○
3
CYCLE TIME
Set output cycle. It is only for SSR
(Solid State Relay) type.
○
4
ANTI RESET
WIND-UP
Control reset wind-up.
○
5
AT GAIN Use PID value control. ▶ control output = PID X GAIN
○
1
○
2
○
3
○
4
○
5
Forward / Reverse
control output(MV)
difference(PV-SP)
+ -
0 %
100 %
Forward
Reverse
PV > SP PV < SP
