SAMWONTECH
4th Edition of TEMI880 IM : Jan. 29. 2007 Page 57 / 119
ON OFF
10 Sec
3 Sec
7 Sec
ON
OFF
10 Sec
5 Sec 5 Sec
ON OFF
10 Sec
7 Sec
3 Sec

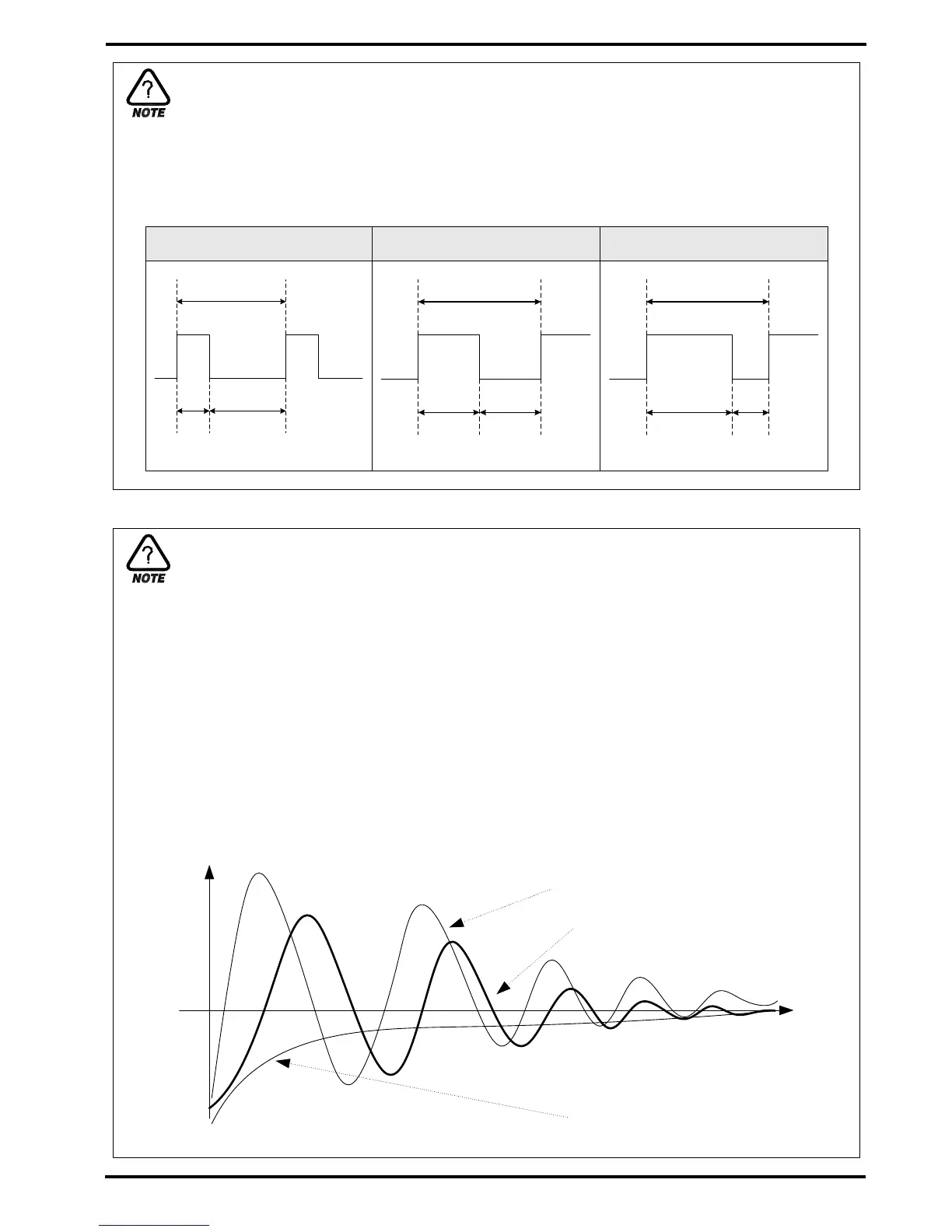

▶ It is only for SSR(Solid State Relay) type.
▶ 1 Cycle : from ON to OFF.
▶ Cycle time : 10 seconds
Control output : 30% Control output : 50% Control output : 70%
▶ User uses AT GAIN for change of the control character.
▶ AT GAIN controls that following control object and character.
○
1 AT GAIN < 1.0
→ RESPONSE TIME is fast, but HUNTING is extreme.
○
2 AT GAIN > 1.0
→ OVER SHOOT is decreaed, but RESPONSE TIME is slow.
Gain < 1.0
Gain = 1.0
Gain > 1.0
CYCLE TIME
AT GAIN(AUTO TUNING GAIN)
