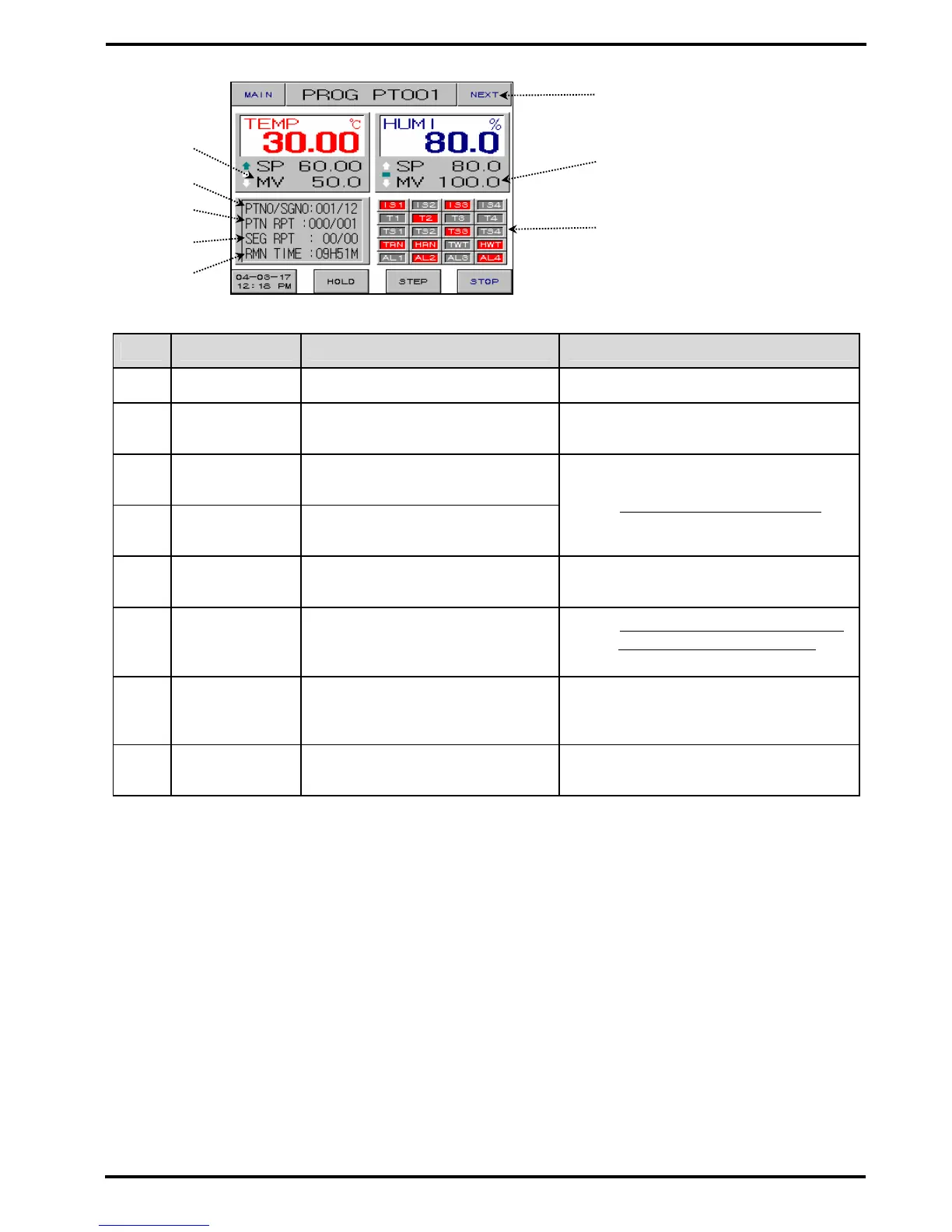

Figure 2-8. Program Run – Second Screen
No. Contents Description Additional Description
○
1
Next Button Transfer at Figure 2-9. ▶ Only using at TEMI880.
○
2
Running Pattern
Display program pattern and
segment number.
○
3
Pattern Repeat
Display pattern repeat status.
repeated count / total repeat count
○
4
Segment Repeat
Display segment repeat status.
repeated count / total repeat count
▶ See 2.10.2 Repeat Setting Screen
○
5
Remain Time
Display remain time of the present
running segment.
○
6
Status Display
Lamp
ON status : Red.
OFF status : Gray.
▶ See 2.12.8 Initial Display and Status
Display Lamp Setting Screen
☞ Total 20 lamp display.
○
7
Temp. MVOUT Display Temp. MVOUT.
○
8
Humi. MVOUT Display Humi. MVOUT.
○
6
○
1
○
2
○
3
○
4
○
5
○
7
○
8
