▶ Figure2-9 is used at TEMI880.

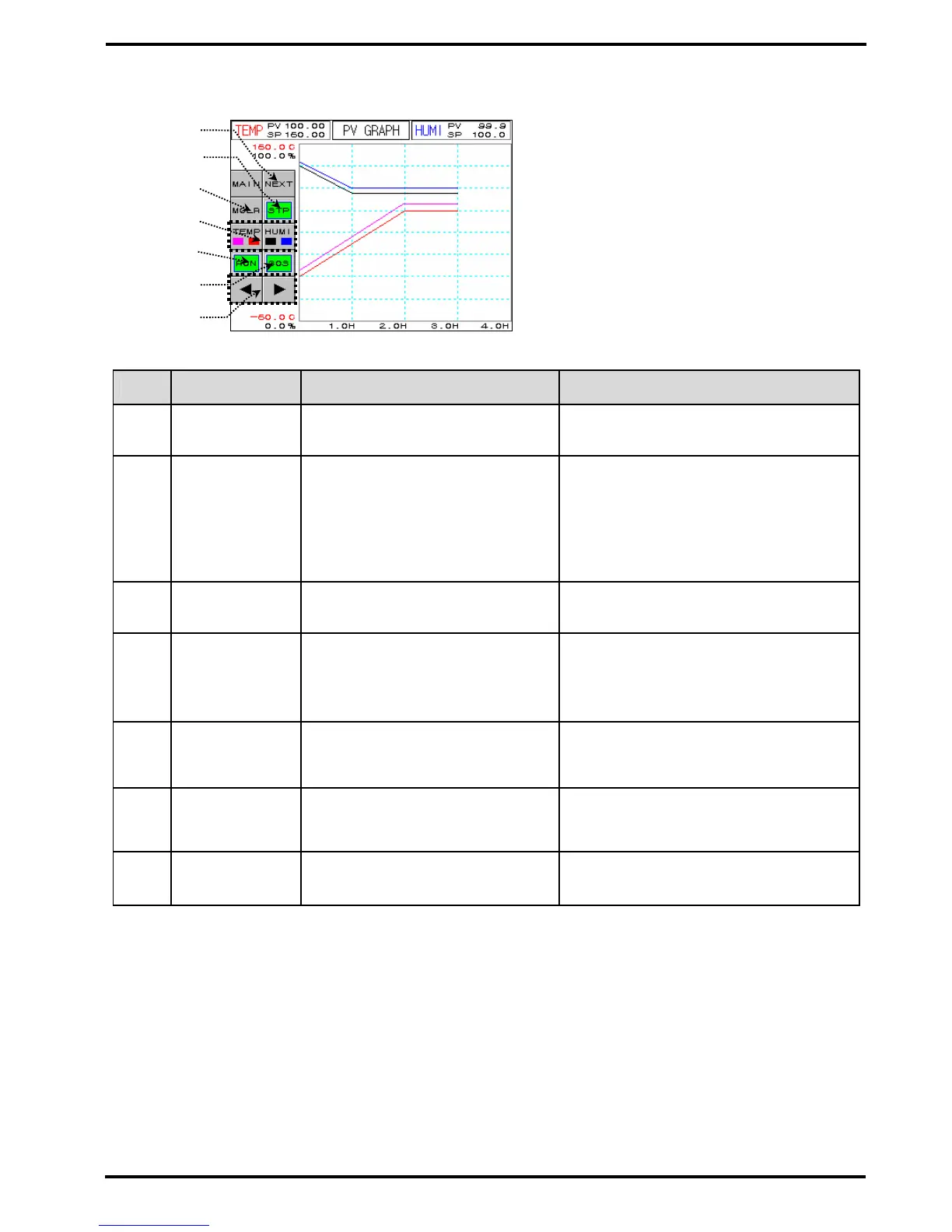

Figure 2-9. Program Run – Third Screen
No. Contents Description Additional Description
○
1
Next Button Transfer at Figure 2-7.
○
2
STP/RPT Button Select graph display status.
▶ STP : In case sampling time is 60
▶ seconds, data is stored during 8 days
▶ and data storage is stopped.
▶ RPT : In case sampling time is 60
▶ seconds, data display 8 days recently
▶ and data storage is repeatedly.
○
3
MCLR Button Delete graph display data.
○
4
Select Graph
Select Temp.(SP, PV) or Humi.(SP,
PV) graph.
▶ Temp. PV : Display magenta.
▶ Temp. SP : Display red.
▶ Humi. PV : Display blue.
▶ Humi. SP : Display black.
○
5
RON/ROF
Button
Select graph storage or not.
▶ RON : PV graph storage ON.
▶ ROF : PV graph storage OFF.
○
6
30S/60S Button Select sampling time.
▶ 30S : 30 seconds.
▶ 60S : 60 seconds.
○
7
Previous/Next
Button
Move previous/next page.
○
6
○
1
○
2
○
3
○
4
○
5
○
7
