2.12.4.2 PID Group(PID1~PID9) Setting
▶ It is possible that you set with user manual.

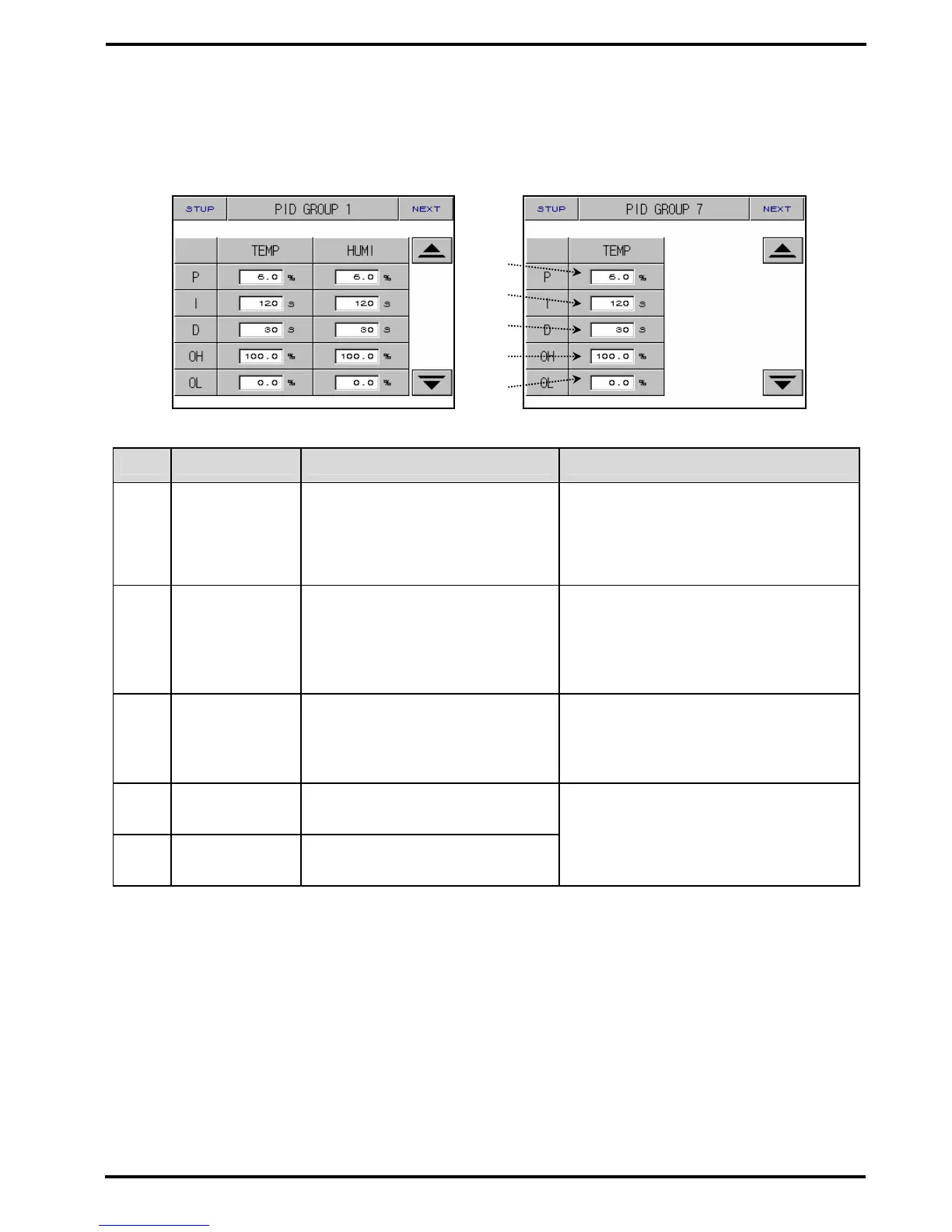

Figure 2-53. PID Group – Control Temp.&Humi. Figure 2-54. PID Group – Control Temp.
No. Contents Description Additional Description
○
1
PROPORTIONAL
BAND
Set proportional band.
○
2
INTEGRAL
TIME
Set integral time.
☞ Integral action remove remaining
derivation that it is occurred P action.
○
3
DERIVATIVE
TIME
Set derivative time. ☞ Control external shock.
○
4
OUTPUT LIMIT
HIGH
Set output limit high.
○
5
OUTPUT LIMIT
LOW
Set output limit low.
▶ OH > OL
☞ If OH, OL are changed, they are
▶ applied to control output at Auto
▶ Tuning.
○
1
○
2
○
3
○
4
○
5
