2.12.8.2 Status Display Lamp Setting

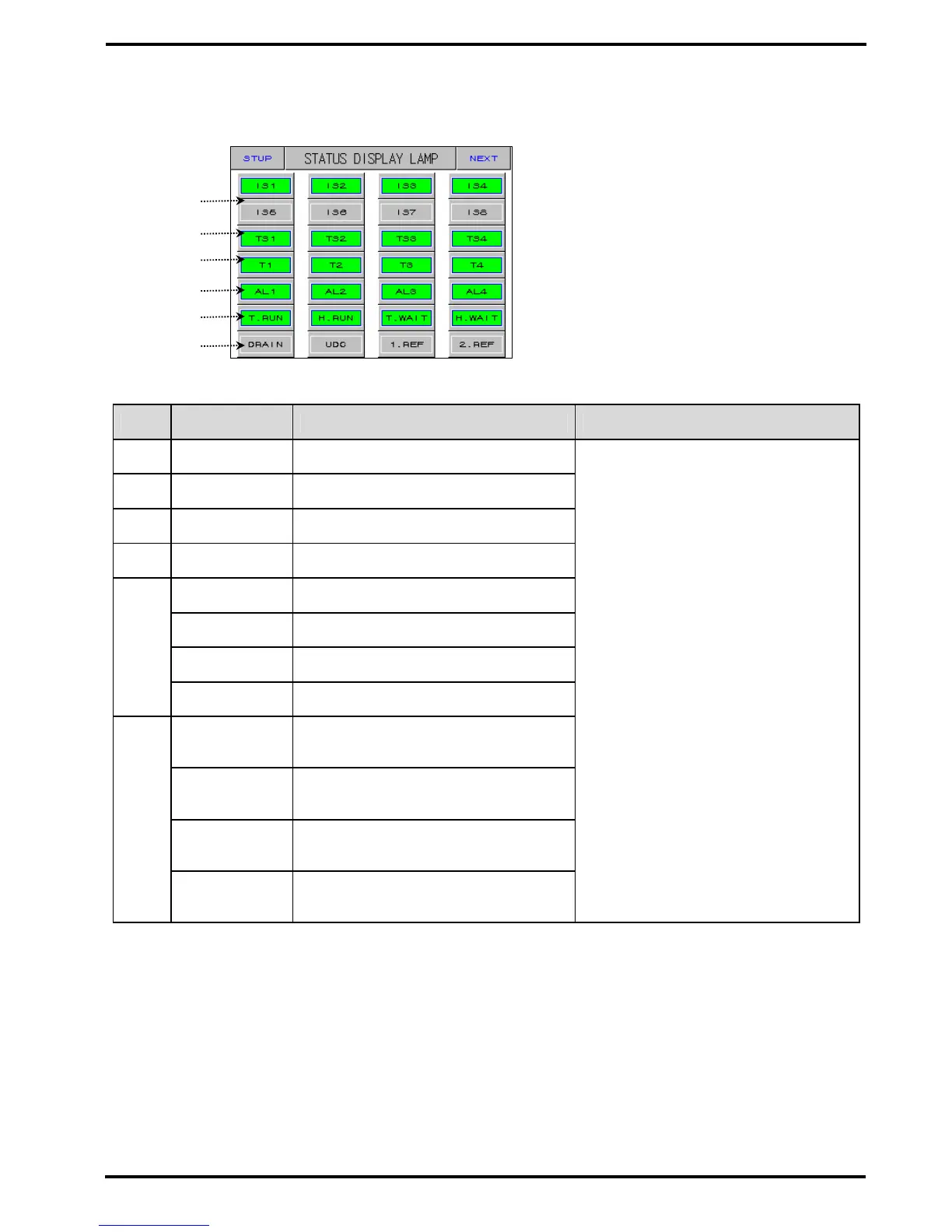

Figure 2-67. Status Display Lamp Setting Screen
No. Contents Description Additional Description
○
1
IS1 ~ IS8 Inner signal display lamp.
○
2
TS1 ~ TS4 Time signal display lamp.
○
3
T1 ~ T4 ON/OFF signal display lamp.
○
4
AL1 ~ AL4 Alarm signal display lamp.
T.RUN Temp. run signal display lamp.
H.RUN Humi. run signal display lamp.
T.WAIT Temp. wait signal display lamp.
○
5
H.WAIT Humi. wait signal display lamp.
DRAIN Signal display lamp for the draining.
UDC
Signal display lamp for the UDC
machine action.
1.REF
Signal display lamp for the first
refrigeration machine action.
○
6
2.REF
Signal display lamp for the second
refrigeration machine action.
▶ Total lamp count is twenty.
▶ Selected lamp is changed green
color.
▶ Selected lamp is displayed second
screen of the PROG or FIX Run.
○
4
○
2
○
5
○
1
○
6
○
3
