5.1.3 ON/OFF Signal Relay Setup Screen
▶ This set Relay Number for ON/OFF Signal, and Delay Time for each ON/OFF Signal.
▶ The preset ON/OFF Signal sends actual contact output when the signaling condition is met after preset
Delay Time.
① Set ON/OFF Signal Relay and Delay Time. (T1∼T7)
Table 5-3 ON/OFF Signal Relay Setup Screen Parameter
Parameter Range Unit Default
ON/OFF Signal 1
~ ON/OFF Signal 7 Relay
0~32 ABS 0
ON/OFF Signal 1 Delay Time
~ ON/OFF Signal 7 Delay Time
00.00~99.59 (MIN.SEC) ABS 00.00

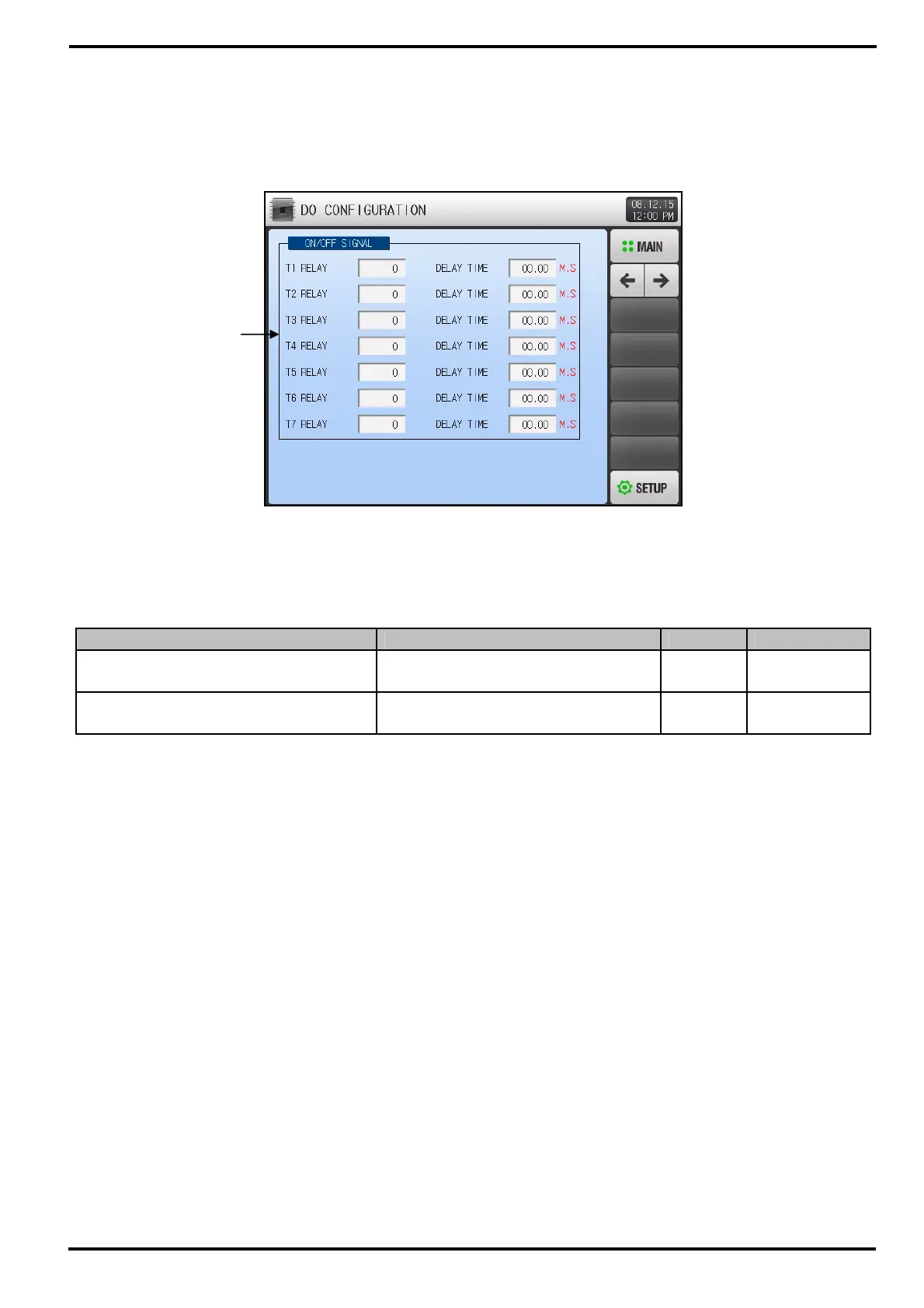

[Figure 5-3] ON/OFF Signal Relay Setup Screen
①
To Next Page
