5.1.4 DI Signal Relay Setup Screen
▶ This set Relay Number for DI Signal.
▶ DI Signal sends contact output to setup relay when DI error of corresponding number occurs.

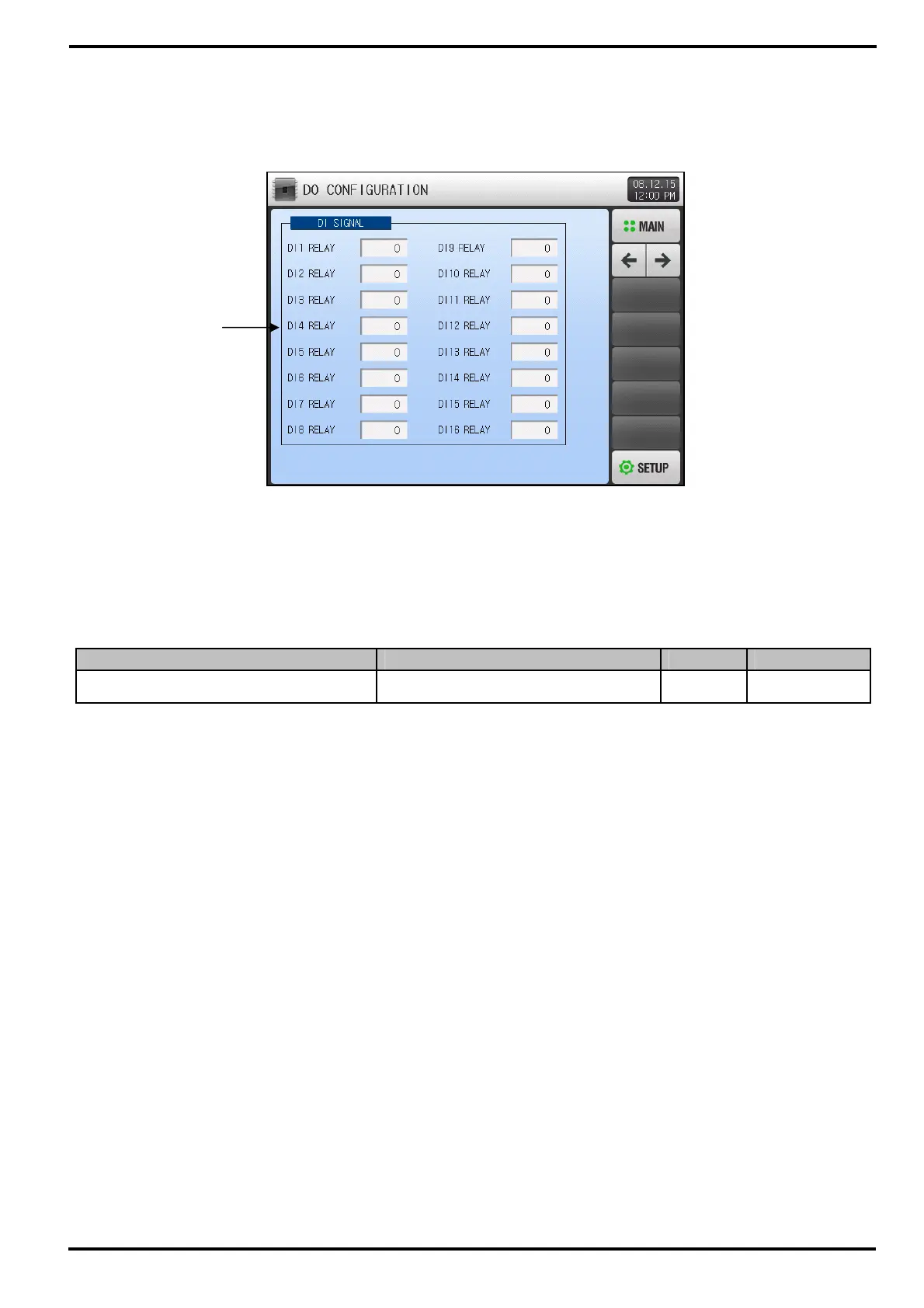

[Figure 5-4] DI Signal Relay Setup Screen
① Set DI Signal Relay. (DI1~DI16)
☞ In the [11.1.2 DI Function and Operation Setup] Menu, DI signal run that Only operation method is set
‘error’.
Table 5-4. DI Signal Relay Setup Screen Parameter
Parameter Range Unit Default
DI Signal 1~16 Relay 0~32 ABS 0
①
