COMMENTS
REVDATE
E
02/21/03
A/R 610 Radar Altimeter ARINC 429 interface moved from orignal sheet 5, added Bendix/King KRA405B
COMPUTER CONTROLLED DRAWING
DO NOT REVISE MANUALLY

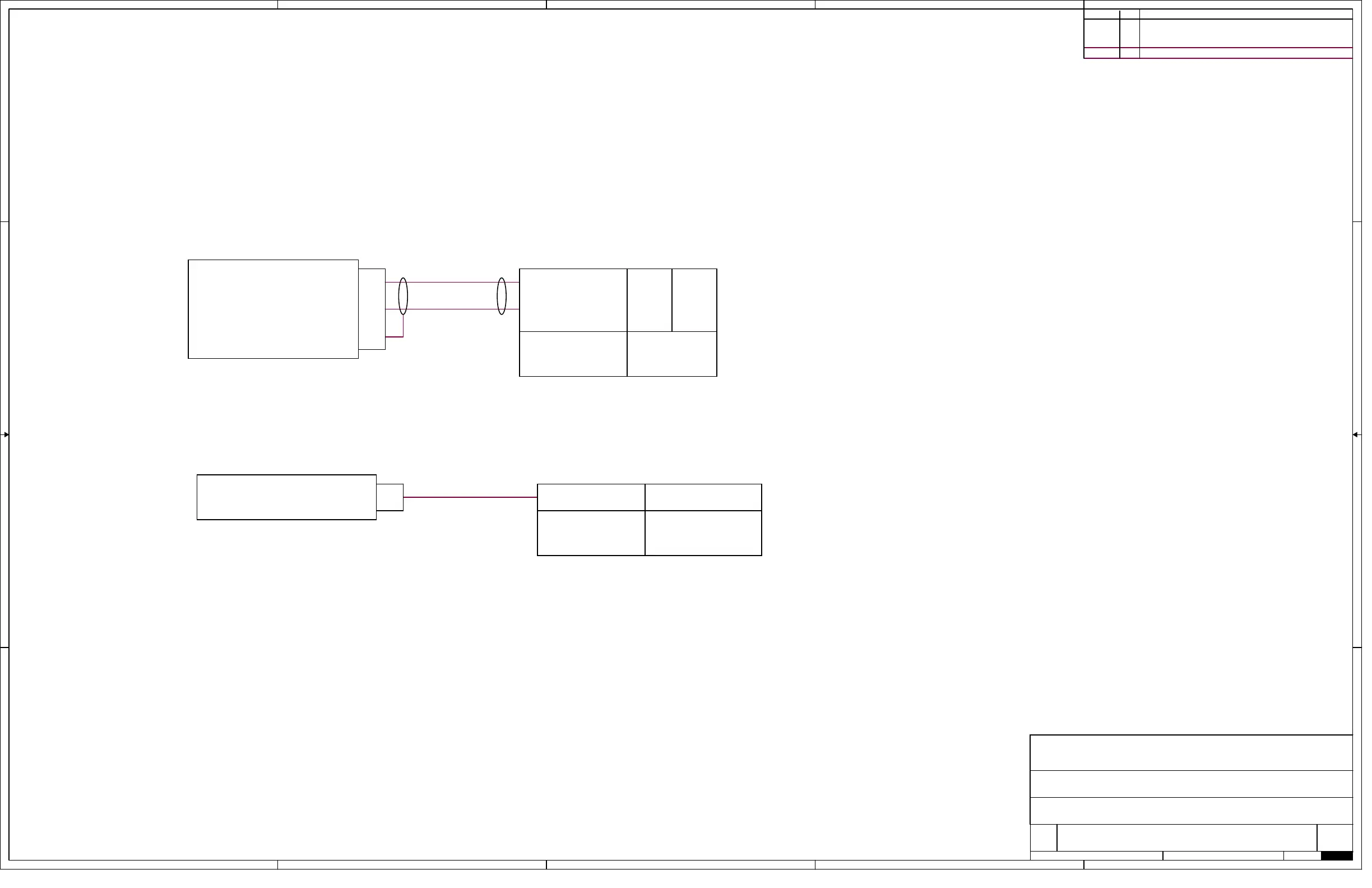

#1 RAD ALT 429 A RX
#1 RAD ALT 429 B RX
SHIELD GROUND
ST3400
3
2
COLLINS RAC-870
P-1
J1 PRIMARY
1
32
2
ARINC 429 TX A
ARINC 429 TX B
ARINC 429
RADAR
ALTIMETER
SOFTWARE
SELECT
ARINC 429
C
B
BENDIX/KING KRA 405B
P4051
NOTES:
1. SIGNALS MAY BE OBTAINED FROM
R/T OR INDICATOR, AS REQUIRED.
2. CONNECT DIGITAL SIGNALS AS REQUIRED.
02/18/04 H A/R 675 Removed #2 Radar Altimeter
SEE RADAR ALTIMETERS MFG
INSTALL MANUAL FOR DECSION HEIGHT
OUTPUT AND INTERCONNECT.
ST3400
HIGH or LOW
DECISION HEIGHT IN
18
J2
ACTIVE L/ACTIVE H
OR NONE
SOFTWARE
SELECT
DH OUT
NOTE:
Available in Software 3.00 and above
DH (Minimums Callout)
Radar Altimeter 429
To Next Page
