6.3 Maintenance Pages
The sections that follow illustrate maintenance pages and describe each
maintenance page and it’s contents. Maintenance pages may have names,
indicators, readouts, lists, entries, and/or requests. A name is a text string that
identifies a page or item. A Readout consists of value(s) and/or text string(s) that
provide the status of an item. A multiple-choice list consists of a set of selectable
items/choices where the set is shown with each item/choice on a separate line. A
multiple-choice entry is an item with a set of selectable choices where the set is
shown one choice at a time on a single line. A request is used to test a system
function or to reset internal values.
6.3.1 System Maintenance Page

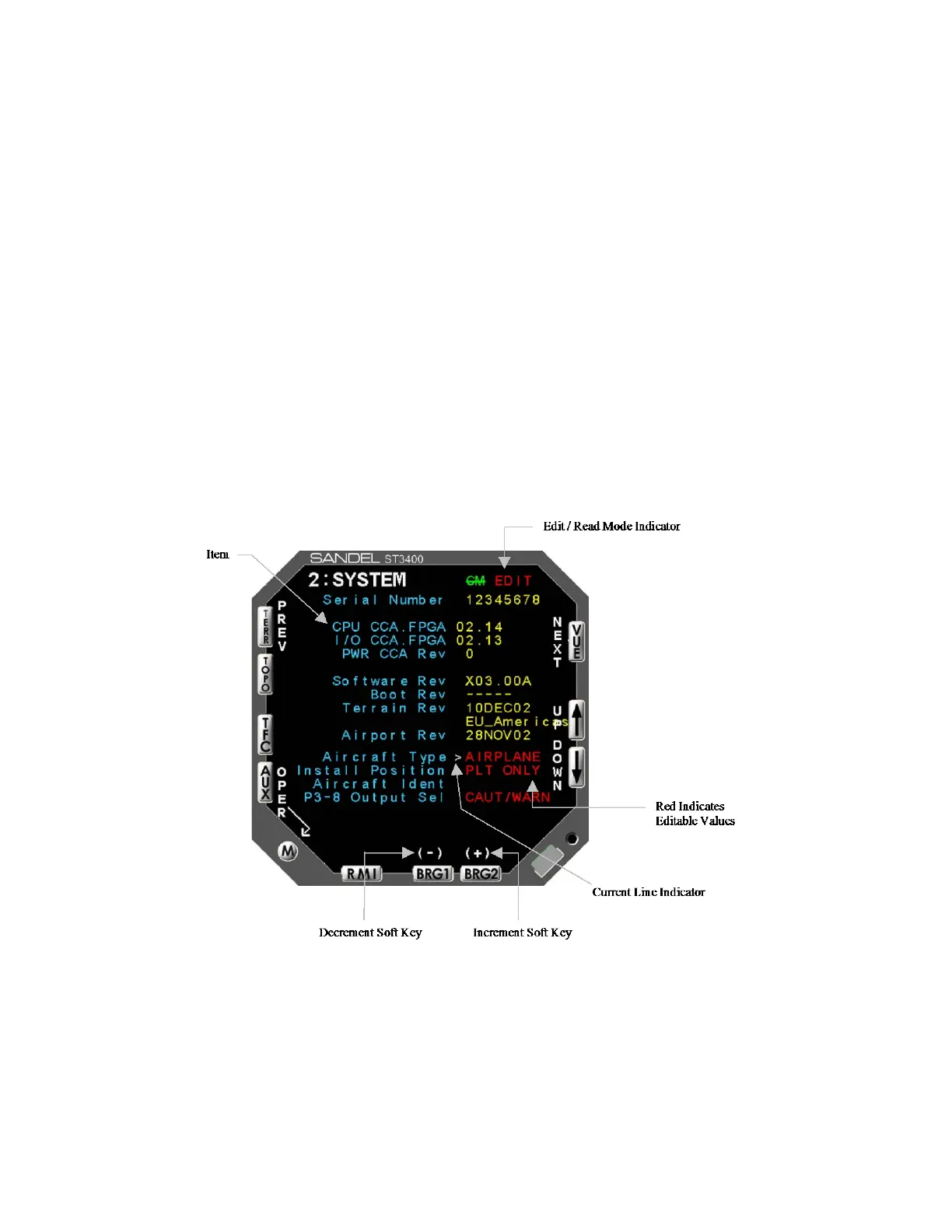

The System page (see Figure 6-2) provides information that identifies this unit
and this unit’s hardware/software.
The modifiable values (Aircraft Type through FLTA Alert Type) show the overall
configuration for the unit and allow the operator to change these items.
Figure 6-2: System (Edit Mode)
6.3.1.1 Item
An Item identifies each maintenance item.
6-6 ST3400 INSTALLATION MANUAL 82002-IM-L
