NOTES:
1. OPTIONAL - USED FOR RMI OPERATION ONLY.
COMMENTS
A
REV
04/11/02
DATE
A/R 484 INITIAL RELEASE

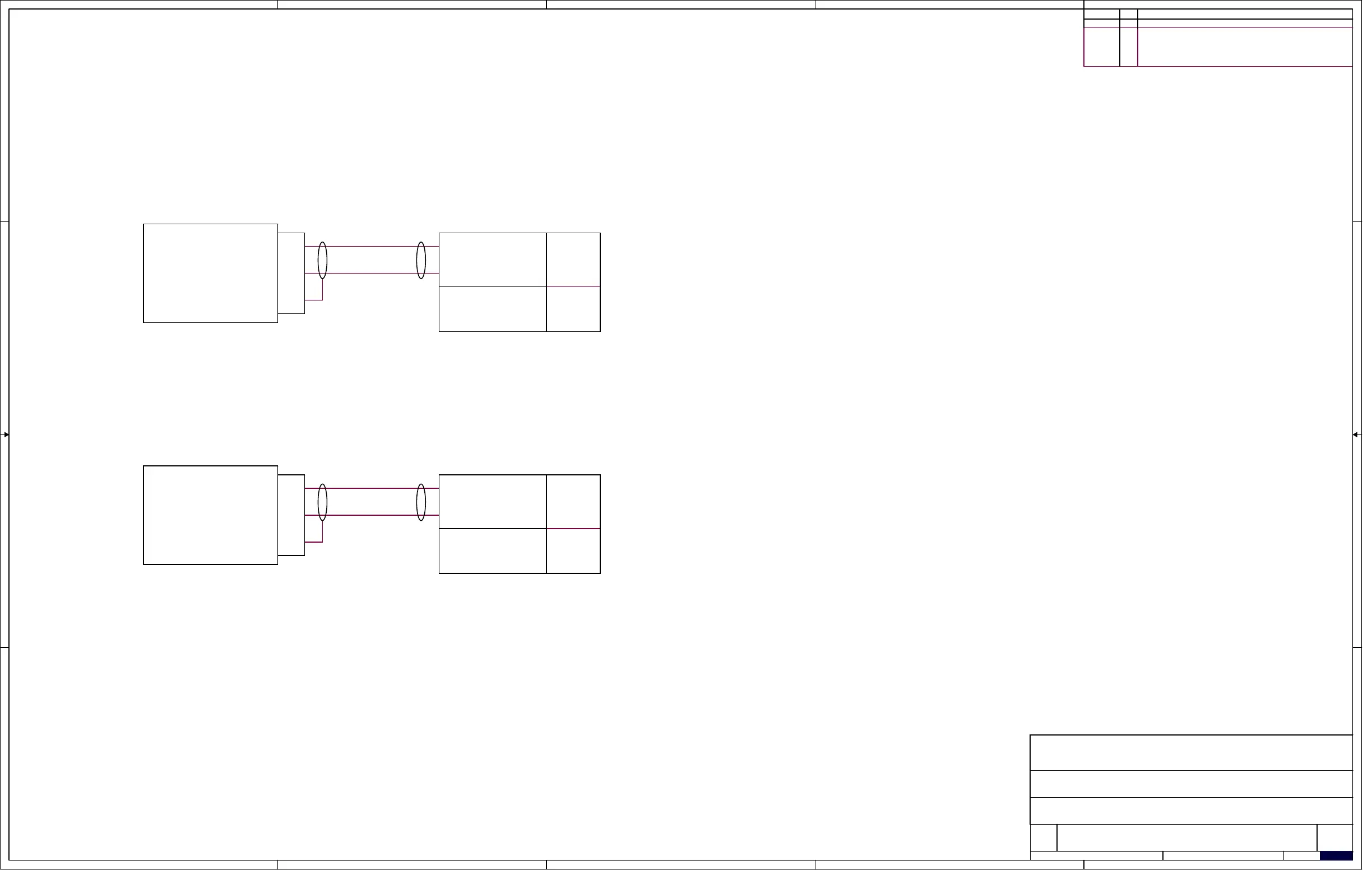

ST3400
J1 PRIMARY
#1 ADF 429 AIN
4
#1 ADF 429 BIN 34
SHIELD GROUND
1
ADF 429 TX A
ADF 429 TX B
ADF
ARINC 429
OUTPUT
SOFTWARE
SELECT
ST3400
J2 SECONDARY
4
#2 ADF 429 AIN
34 #2 ADF 429 BIN
SHIELD GROUND
1
ADF 429 TX A
ADF 429 TX B
ADF
ARINC 429
OUTPUT
SOFTWARE
SELECT
SECONDARY INPUTS OPTIONAL
B A/R 610 Depict J1 & J2 Seperately
XYZ ADF moved to page 12
COMPUTER CONTROLLED DRAWING
DO NOT REVISE MANUALLY
02/21/03
SIN/COS ADF moved to page 13
COLLINS ADF-462 P1
18
21
ARINC
429
18
21
COLLINS ADF-462 P1
ARINC
429
Added Collins ADF-462
ADF 1 429
ADF 2 429
