Sandel ST3400 - Page 116

A
A
B
B
C
C
D
D
E
E
4 4
3 3
2 2
1 1
Title
Size Document Number Rev
Create: Sheet of
Category
Mod:Wednesday, January 15, 2014
82002-10
A
Garmin GTN-6XX/7XX Series
SANDEL
Vista, Ca.
B
23

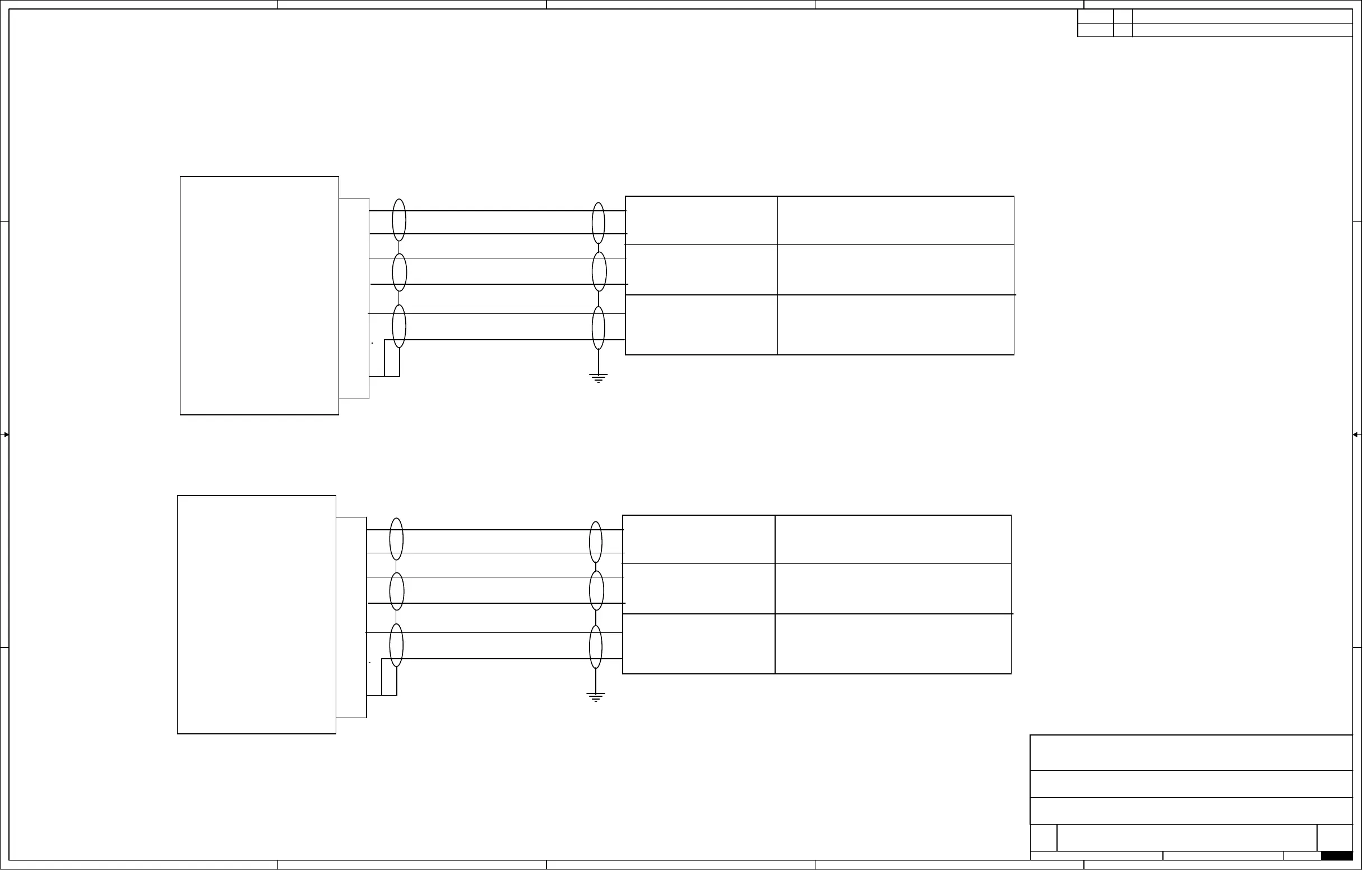

ST3400 INSTALLATION DRAWING
Title
Size Document Number Rev
Create: Sheet of
Category
Mod:Wednesday, January 15, 2014
82002-10
A
Garmin GTN-6XX/7XX Series
SANDEL
Vista, Ca.
B
23
ST3400 INSTALLATION DRAWING
Title
Size Document Number Rev
Create: Sheet of
Category
Mod:Wednesday, January 15, 2014
82002-10
A
Garmin GTN-6XX/7XX Series
SANDEL
Vista, Ca.
B
23
ST3400 INSTALLATION DRAWING
COMPUTER CONTROLLED DRAWING
DO NOT REVISE MANUALLY
A01/20/14 AR1356 INITIAL RELEASE
DATE REV
COMMENTS
GPS ARINC 429 A OUT
GPS ARINC 429 B OUT
VLOC ARINC 429 A OUT
VLOC ARINC 429 B OUT
RS232 TX
RS232 GND
Select Channel 1 or 2 in GTN 6XX
Series. GTN 7XX series has additional
channel 3.
P1004-24 for GTN6XX/7XX
P1004-23 for GTN6XX/7XX
Select one of the 4 RS232 TX outputs.
A channel needs to be dedicated to
the ST3400. GTN7XX series has
additional channels 5 & 6 on P1005.
#1 FMS 429 A IN
#1 FMS 429 B IN
#1 NAV 429 B IN
#1 NAV 429 A IN
#1 NAV RS232 IN
SIGNAL GND
J1
31
17
35
21
11
1
GPS/FMS 1
ST3400
Garmin GTN-6XX/7XX Series
1) Refer to current Installation Manual for Garmin
GTN-6XX/7XX for ARINC 429 and RS232 pins.
2) Garmin GTN setup: "Select GMA FORMAT 3"
for the ARINC GPS 429 out. Select High or Low
Speed as desired.
3) When using the RS232 for Altitude, select the
Channel that is interfaced to the ST3400 and
program Output as "EXTERNAL EGPWS"
NOTES UNLESS OTHERWISE SPECIFIED
(GTN-650/750 only)
ST3400
Garmin GTN-6XX/7XX Series
(GTN-650/750 only)
GPS/FMS 2
GPS ARINC 429 A OUT
GPS ARINC 429 B OUT
VLOC ARINC 429 A OUT
VLOC ARINC 429 B OUT
RS232 TX
RS232 GND
Select Channel 1 or 2 in GTN 6XX
Series. GTN 7XX series has additional
channel 3.
P1004-24 for GTN6XX/7XX
P1004-23 for GTN6XX/7XX
Select one of the 4 RS232 TX outputs.
A channel needs to be dedicated to
the ST3400. GTN7XX series has
additional channels 5 & 6 on P1005.
#2 FMS 429 A IN
#2 FMS 429 B IN
#2 NAV 429 B IN
#2 NAV 429 A IN
#2 NAV RS232 IN
SIGNAL GND
J2
31
17
35
21
11
1
