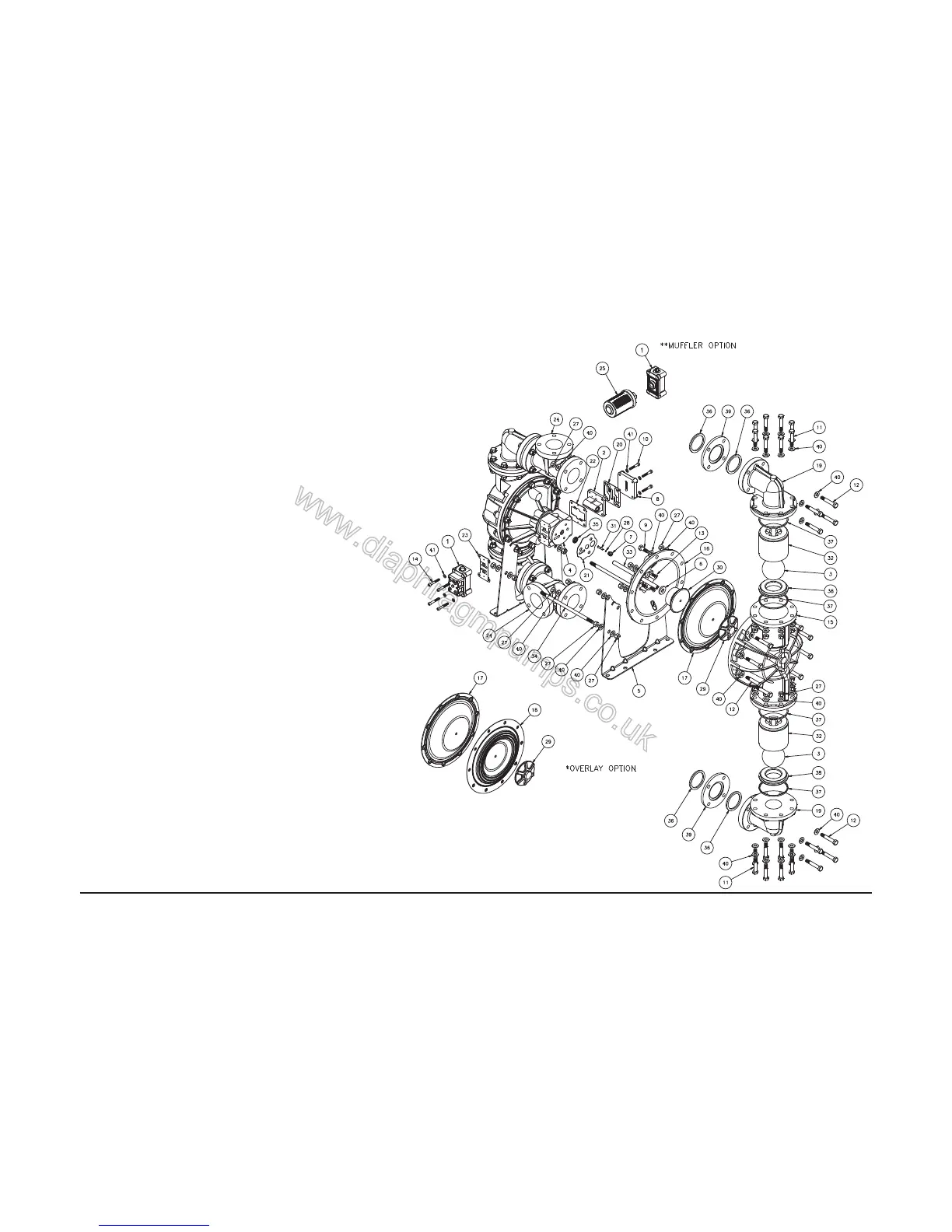

s30nmdl2sm-REV0808 Model S30 Non-Metallic Page 13
Composite Repair Parts Drawing
AVAILABLE SERVICE AND CONVERSION KITS
476-176-000 AIR END KIT
Seals, O-rings, Gaskets, Retaining Rings, Air Valve Sleeve
& Spool Set and Pilot Valve Assembly.
476-177-000* AIR END KIT (for Stroke Indicator Option)
Seals, O-rings, Gaskets, Retaining Rings, Air Valve Sleeve
& Spool Set and Pilot Valve Assembly.
476-140-354 WETTED END KIT
Santoprene Diaphragms, Santoprene Balls and TFE Seals.
476-140-654 WETTED END KIT
Santoprene Diaphragms, PTFE Overlay Diaphragms, TFE
Balls and TFE Seals.
476-143-354 WETTED END KIT (for Polypropylene Spill Containment)
Santoprene Diaphragms, PTFE Overlay Diaphragms, PTFE
Pumping Diaphragms, PTFE Balls and PTFE Seals.
476-143-655 WETTED END KIT (for PVDF Spill Containment)
Santoprene Diaphragms, PTFE Overlay Diaphragms,
PTFE Pumping Diaphragms, PTFE Balls and PTFE Seals.
HARDWARE KITS
475-173-308 PTFE Coated Stainless Steel Capscrews, Hex Nuts,
Washers and Support Rod
475-174-308 (For use with Spill Containment Options)
ELECTRONIC LEAK DETECTOR KITS
032-037-000 100VAC 50Hz
or 110-120VAC 50-60Hz
or 220-240VAC 50-60Hz
032-045-000 12-32VDC
