s30nmdl2sm-REV0808 Model S30 Non-Metallic Page 17

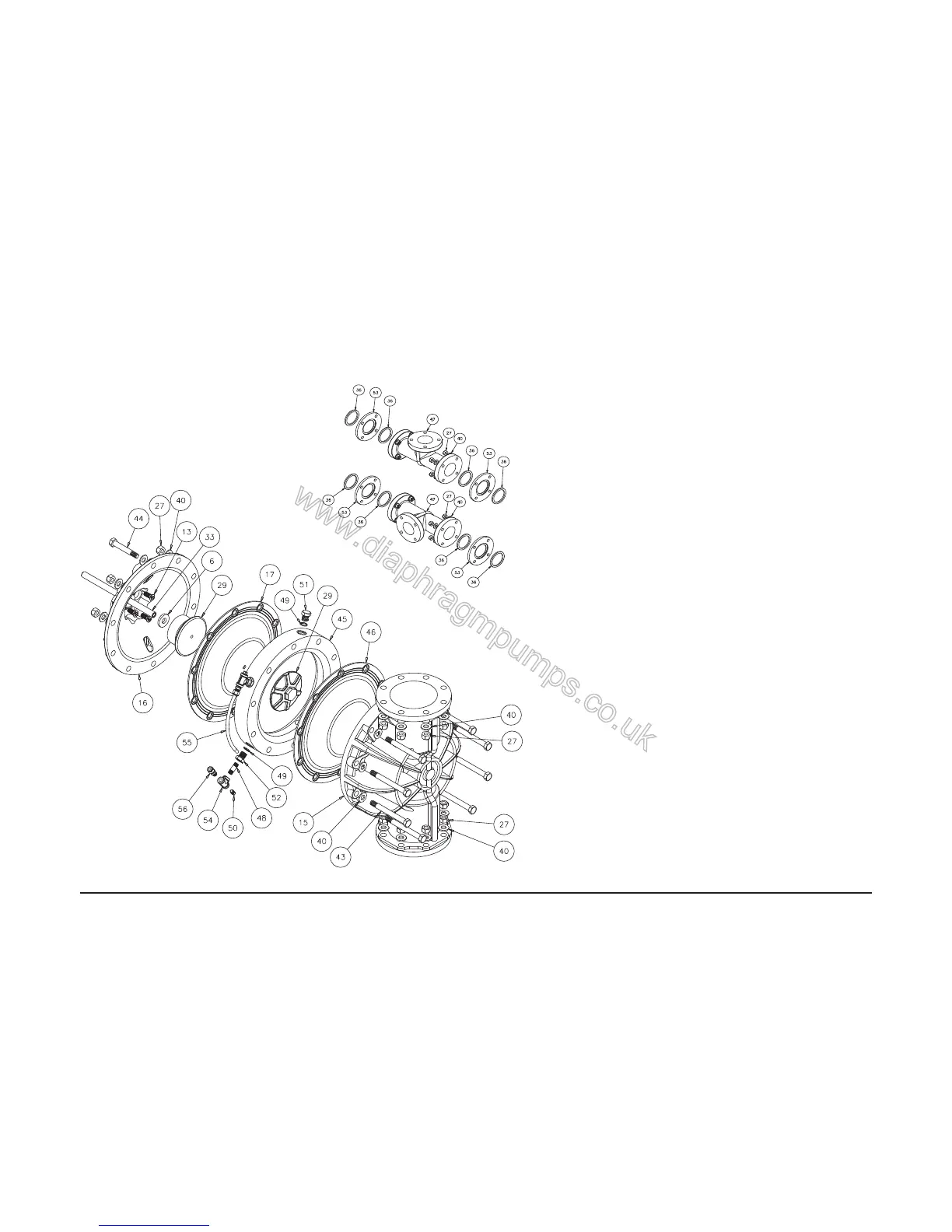

Spill Containment Option for TPE
Equipped Pumps Drawing
S30 SPILL CONTAINMENT FOR TPE EQUIPPED PUMPS
REPAIR PARTS LIST
ITEM PART NUMBER DESCRIPTION QTY
1 031-146-000 Air Valve Assembly 1
(replaces 031-140-000)
031-147-000 Air Valve Assembly 1
(replaces 031-141-000)
43 170-113-115 Capscrew, Hex HD 5/8-11 x 6.00 16
170-113-308 Capscrew, Hex HD 5/8-11 x 6.00 16
44 170-115-115 Capscrew, Hex HD 5/8-11 x 4.00 4
170-115-308 Capscrew, Hex HD 5/8-11 x 4.00 4
45 196-156-552 Chamber, Spill Containment 2
196-156-600 Chamber, Spill Containment 2
46 286-080-354 Diaphragm, Pumping 2
47 518-135-520 Manifold, Spill Containment 2
518-135-520E Manifold, 80mm DIN 2
518-135-552 Manifold, Spill Containment 2
518-135-552E Manifold, 80mm DIN 2
48 538-022-110 Pipe, Nipple 4
538-022-308 Pipe, Nipple 4
49 560-078-611 O-ring 8
50 618-003-110 Plug, Pipe 4
618-003-308 Plug, Pipe 4
51 618-025-110 Plug, Boss 4
618-025-308 Plug, Boss 4
52 618-031-110 Plug, Boss 4
618-031-308 Plug, Boss 4
53 770-061-600 Spacer, Manifold 4
770-061-552 Spacer, Manifold 4
54 835-005-110 Tee, Pipe 4
835-005-308 Tee, Pipe 4
55 860-057-606 Tube, Sight 2
56 866-060-110 Connector, Tube 4
