Sandpiper S30 - Optional Muffler Configurations; Muffler Configuration Options

s30nmdl2sm-REV0808 Model S30 Non-Metallic Page 35

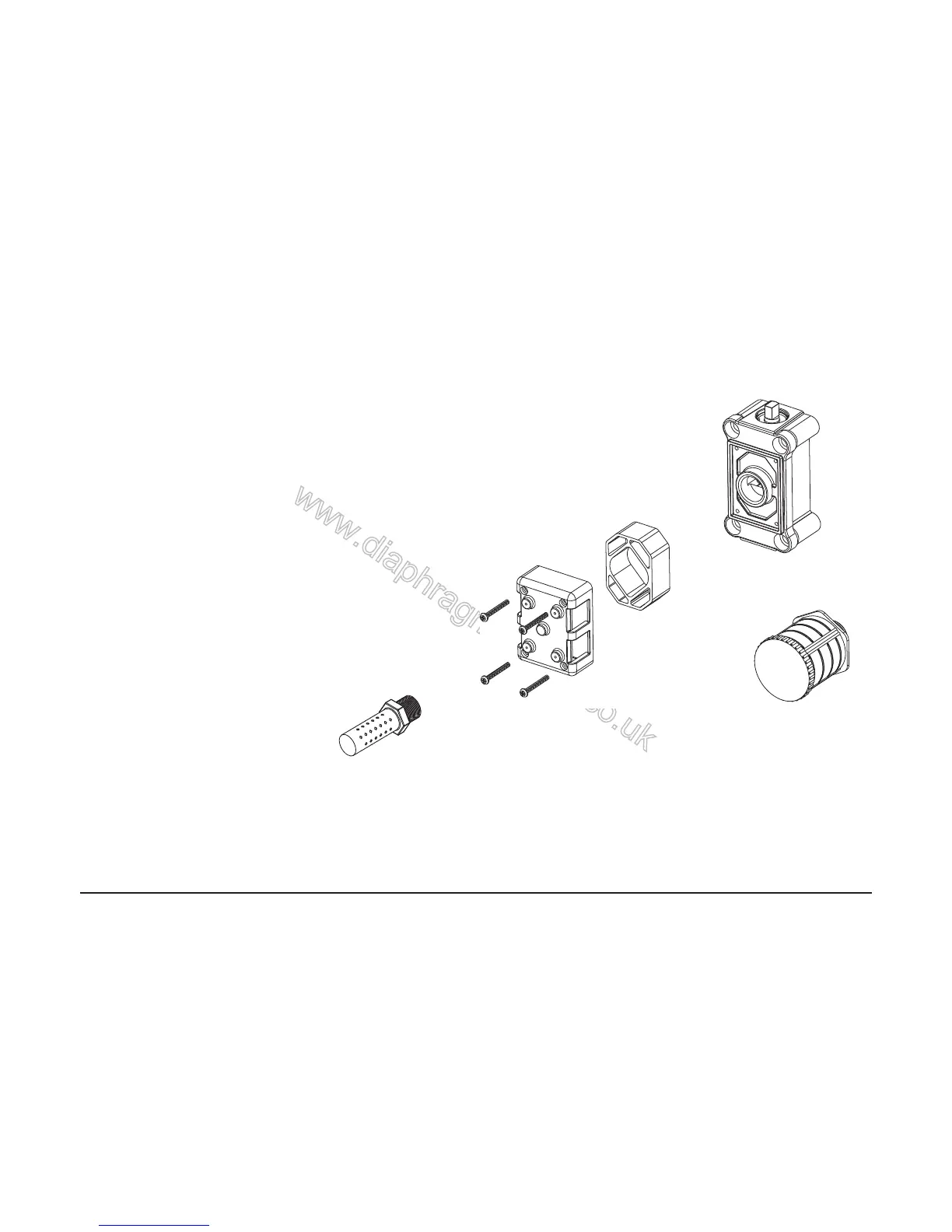

Optional Muffl er Confi gurations, Drawing
OPTION 0
530-028-550 Integral Muffl er uses (1) Cap
and (4) 710-015-115 Self Tapping Screw to
hold it in place.
OPTION 1
530-027-000 Sound Dampening Muffl er
screws directly into the Air Valve body.
This muffl er is equipped with a porous
plastic element.
OPTION 2
530-010-000 Mesh Muffl er screws
directly into the Air Valve Body. This
muffl er is equipped with a metal element.
OPTION 6
530-033-000 Metal Muffl er screws
directly into the Air Body.
Option 1 and 2
Option 6
Option 0
